Laser Mirror (Laser-line Wavelength, Dual Laser-line Wavelength)

Laser Mirror (Laser-line Wavelength, Dual Laser-line Wavelength)
Price: US $ 20-60/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal

Product Specifications


Prod Model: D5~D300mm
Type: Flat Lens
Material: Optical Glass
Shape: Round
Coating: Dielectic

Product Description

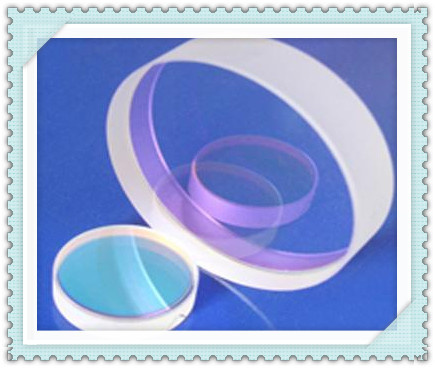

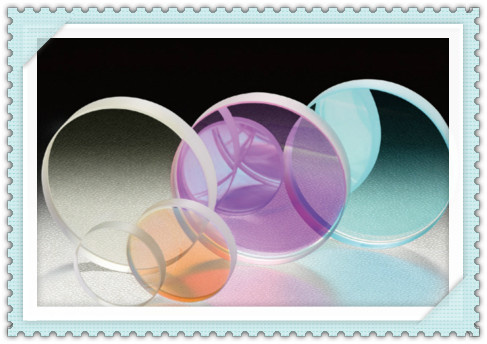

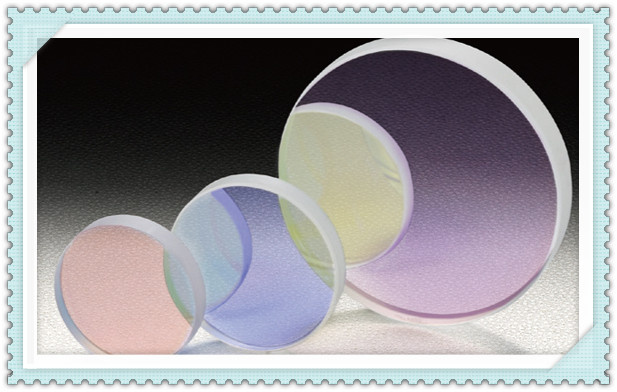

The laser mirrors are dielectic reflectrors providing an optimised performance at stated wavelengths. The high polishing quality is imprtant for low wave front distrortion,low scattering and hight damage threshold. All mirrors designed to work at 45 degrees
 Standard Specifications:
Optical Material:
Dimension Tolerance:
Clear Aperture:
Angular Tolerance:
Surface Quality:
Wavefront Distortion:
Rear Surface Quality
Bevel:
BK7, Fused Silica
+0.0,-0.15mm
>90%
±30 arc minutes
20-10 scratch and dig
lambda/10 at 632.8nm
Commercial Polish
<0.25mm X 45
Coating Specifications:
Technology:
Adhesion & Durability:
Clear Aperture:
Damage Threshold:
Angle of Incidence:
Electron Beam Multilayer Dielectric
Per MIL-C-675A,Insoluble in lab solvent
> 85% of diameter central
5 J/cm2,8 nsec pulse,1064nm typical
45 Degrees

 Standard For Laser line Mirrors:
Wavelength(nm)Laser TypeReflectance
% (s+p)/2
Product Number
D12.7x3mmD25.4x6mmD50.8x8mm
488-515Ar+>99.5UQT-HLMB0101UQT-HLMB0201ICC-HLMB0301
527-532YAG 2H>99.5UQT-HLMB0102UQT-HLMB0202ICC-HLMB0302
589Dye>99.5UQT-HLMB0103UQT-HLMB0203ICC-HLMB0303
633-670HeNe+Diode>99.5UQT-HLMB0104UQT-HLMB0204ICC-HLMB0304
780Diode>99.5UQT-HLMB0105UQT-HLMB0205ICC-HLMB0305
760-840Ti:Sa>99UQT-HLMB0106UQT-HLMB0206ICC-HLMB0306
852Diode>99.5UQT-HLMB0107UQT-HLMB0207ICC-HLMB0307
1047-1064YAG>99.5UQT-HLMB0108UQT-HLMB0208ICC-HLMB0308
1300-1320YAG>99.5UQT-HLMB0109UQT-HLMB0209ICC-HLMB0309
1520-1570Diode>99.5UQT-HLMB0110UQT-HLMB0210ICC-HLMB0310
Standard For Dual Laser line Mirrors:
Wavelength(nm)Laser TypeReflectance
% (s+p)/2
Product Number
D12.7x3mmD25.4x6mmD50.8x8mm
532+1064YAG 1H+2H>99.5UQT-DLMB0101UQT-DLMB0201ICC-DLMB0301
633+1064YAG 1H+2H>99.5UQT-DLMB0102UQT-DLMB0202ICC-DLMB0302
Please Contact us for other dimensions in prototype and production quantities.

Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.

Our Strengths

Ample, stable and cost-efficient supply of IR materials.

ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.

Consistent and high-performance manufacturing

During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.

The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.

Excellent quality and efficient service

From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.

Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.

Competitive Prices

ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.

Stable and reliable business partner

We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.

Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
