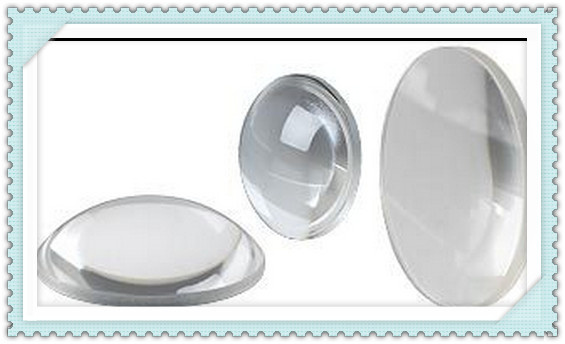

Spherical Plano-Convex Mirror for Laser Cavity

Spherical Plano-Convex Mirror for Laser Cavity
Price: US $ 20-60/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal

Product Specifications


Prod Model: D5~D300mm
Type: Convex Lens
Shape: Single-lens
Material: Optical Glass
Coating: Ar Bbar

Product Description

Spherical mirrors are used to collect and concentrate light at a point. They have a positive focal length equal to half their radius of curvature. BK7 mirror substrates used and these are made to laser standards (λ/10, 10/5).
A variety of reflective coatings may be applied.
 Standard Specifications:
Optical Material:
Dimension Tolerance:
Clear Aperture:
Surface Quality:
Wavefront Distortion:
Bevel:
Coating
BK7 A grade glass
+0.0,-0.15mm
>90%
10-5 scratch and dig
lambda/10 at 632.8nm
<0.25mm X 45
Upon Reuqest

 Standard For Spherical Plano-convex Mirrors:Radius (mm)EFL (mm)Tc (mm)Product Number
25.010.03.0ICC-LPLCX0101
30.025.46.35ICC-LPLCX0102
40.025.46.35ICC-LPLCX0103
50.025.46.35ICC-LPLCX0104
80.025.46.35ICC-LPLCX0105
100.025.46.35ICC-LPLCX0106
150.025.46.35ICC-LPLCX0107
200.025.46.35ICC-LPLCX0108
250.025.46.35ICC-LPLCX0109
300.025.46.35ICC-LPLCX0110
400.025.46.35ICC-LPLCX0111
500.025.46.35ICC-LPLCX0112
Please Contact us for other dimensions in prototype and production quantities.

Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.

Our Strengths

Ample, stable and cost-efficient supply of IR materials.

ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.

Consistent and high-performance manufacturing

During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.

The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.

Excellent quality and efficient service

From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.

Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.

Competitive Prices

ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.

Stable and reliable business partner

We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.

Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
