High Power Laser Mirrors

High Power Laser Mirrors
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal

Product Specifications


Prod Model: D5~D300mm
Application: Scientific Research
Material: Glass
Type: Round
Usage: Reflectivity
Shape: Round

Product Description

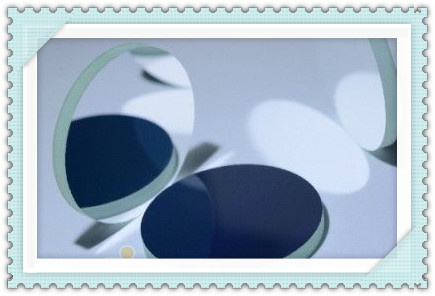

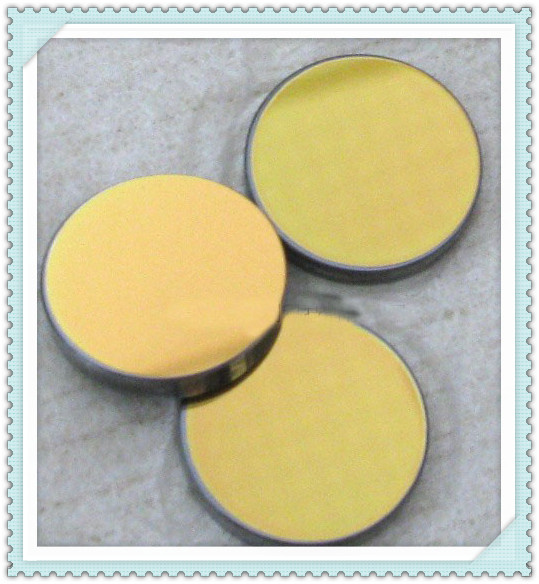

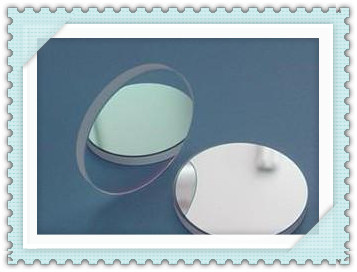

Qinhuangdao Intrinsic Crystal Technology Co., Ltd  offers dielectric mirrors which designs are much more resistant to laser damage than typical mirrors and are suitable for use with high power laser systems.
They are manufactured using all dielectric multi-layer coatings of alternating high and low index layers. These are specifically designed for use at 45 or 0 degrees angle of incidence.
 Standard Specifications:
Optical Material:
Dimension Tolerance:
Clear Aperture:
Angular Tolerance:
Surface Quality:
Wavefront Distortion:
Bevel:
BK7, Fused Silica
+0.0,-0.15mm
>90%
±30 arc minutes
20-10 scratch and dig
lambda/10 at 632.8nm
<0.25mm X 45
Coating Specifications:
Technology:
Adhesion & Durability:
Clear Aperture:
Damage Threshold:
Angle of Incidence:
Electron Beam Multilayer Dielectric
Per MIL-C-675A,Insoluble in lab solvent
> 85% of diameter central
5 J/cm2,8 nsec pulse,1064nm typical
45 or 0 Degrees

 Standard For High Power Laser Mirrors:
Wavelength(nm)Optical MaterialAOI (°)Reflectance
% (s+p)/2
Product Number
D12.7x3mmD25.4x6mmD50.8x8mm
355Fused Silica>99ICC-HPMF0101ICC-HPMF0201ICC-HPMF0301
355Fused Silica45°>99ICC-HPMF0102ICC-HPMF0202ICC-HPMF0302
532BK7>99ICC-HPMB0103ICC-HPMB0203ICC-HPMB0303
532BK745°>99ICC-HPMB0104ICC-HPMB0204ICC-HPMB0304
532Fused Silica>99ICC-HPMF0105ICC-HPMF0205ICC-HPMF0305
532Fused Silica45°>99ICC-HPMF0106ICC-HPMF0206ICC-HPMF0306
1064BK7>99ICC-HPMB0107ICC-HPMB0207ICC-HPMB0307
1064BK745°>99ICC-HPMB0108ICC-HPMB0208ICC-HPMB0308
Please Contact us for other dimensions in prototype and production quantities.
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.

Our Strengths

Ample, stable and cost-efficient supply of IR materials.

ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.

Consistent and high-performance manufacturing

During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.

The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.

Excellent quality and efficient service

From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.

Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.

Competitive Prices

ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.

Stable and reliable business partner

We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.

Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
