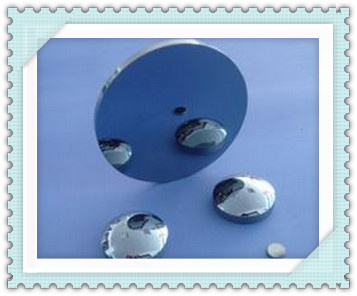

Metallic Coating Mirrors, Optical Mirrors
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Application: |
Scientific Research |
| Material: |
Glass |
| Type: |
Round |
| Usage: |
Reflectivity |
| Shape: |
Round |
Product Description
Metallic coatings are excellent broadband reflectors.Auminium,silver or gold may be used. Aluminium has the broadest bandwidth extending from 200 nm to the near IR. Silver has the highest average reflectance and gold reflects well at longer wavelengths of infrared but cuts off at about 500 nm giving rise to its distinctive colour.
As metal coatings are prone to oxidation, they are normally protected with a thin layer of silicon dioxide. If a multilayer stack is used instead of a simple dielectric layer, it is possible to enhance the reflectance of metallic mirrors. "Enhanced" metal mirrors should be selected when the highest reflectance is required.
| Standard Specifications: | |
Optical Material:
Dimension Tolerance:
Clear Aperture:
Angular Tolerance:
Surface Quality:
Wavefront Distortion:
Rear Surface Quality:
Bevel: | BK7, Silicon
+0.0,-0.15mm
>90%
±30 arc minutes
20-10 scratch and dig
lambda/4 at 632.8nm
Fine Ground
<0.25mm X 45 |
| Coating Specifications: | |
Technology:
Adhesion & Durability:
Angle of Incidence: | Thermal Evaporation(Resistive Heating)
Per MIL-C-675A,Insoluble in lab solvent
45 Degrees |
Standard For High Power Laser Mirrors:Dimension(mm) | T(mm) | Shape | Optical Material | Coating | Product Number | 10 | 5.0 | Circular | BK7 | Al Protect | ICC-LMCM0101 | 10 | 6.0 | Circular | BK7 | Enhance-Al | ICC-LMCM0102 | 10x10 | 5.0 | Square | BK7 | Silver Protect | ICC-LMCM0103 | 10 | 5.0 | Circular | Silicon | Gold Protect | ICC-LMCM0104 | 10x10 | 6.0 | Square | BK7 | Enhance-Al | ICC-LMCM0105 | 15 | 6.0 | Circular | BK7 | Al Protect | ICC-LMCM0106 | 15x15 | 5.0 | Square | BK7 | Enhance-Al | ICC-LMCM0107 | 15 | 5.0 | Circular | BK7 | Silver Protect | ICC-LMCM0108 | 15 | 6.0 | Circular | Silicon | Gold Protect | ICC-LMCM0109 | 20x20 | 5.0 | Square | BK7 | Al Protect | UQT-LMCM0110 | 20 | 5.0 | Circular | BK7 | Enhance-Al | ICC-LMCM0111 | 20 | 6.0 | Circular | BK7 | Silver Protect | ICC-LMCM0112 | 20x20 | 6.0 | Square | Silicon | Gold Protect | ICC-LMCM0113 | 25 | 5.0 | Circular | BK7 | Al Protect | ICC-LMCM0114 | 25 | 5.0 | Circular | BK7 | Enhance-Al | ICC-LMCM0115 | 25x25 | 6.0 | Square | BK7 | Silver Protect | ICC-LMCM0116 | 25 | 5.0 | Circular | Silicon | Gold Protect | ICC-LMCM0117 | 30 | 5.0 | Circular | BK7 | Al Protect | ICC-LMCM0118 | 30 | 6.0 | Circular | BK7 | Enhance-Al | ICC-LMCM0119 | 30x30 | 6.0 | Square | Silicon | Gold Protect | ICC-LMCM0120 | 40 | 5.0 | Circular | BK7 | Enhance-Al | ICC-LMCM0121 | 40x40 | 6.0 | Square | BK7 | Al Protect | ICC-LMCM0122 | 50.8 | 8.0 | Circular | BK7 | Enhance-Al | ICC-LMCM0123 | 50.8x50.8 | 8.0 | Square | BK7 | Al Protect | ICC-LMCM0124 | 50.8 | 8.0 | Circular | BK7 | Silver Protect | ICC-LMCM0125 |
|
Please Contact us for other dimensions in prototype and production quantities.
 |
