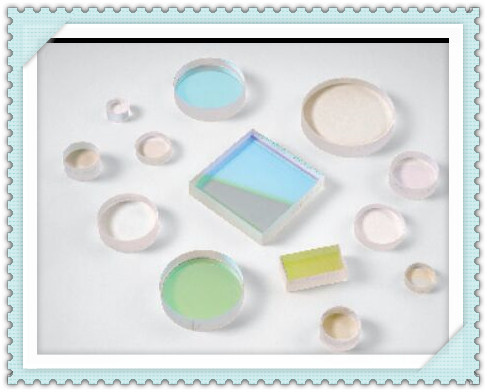

Laser Mirrors for All Solid State Laser Systems

Laser Mirrors for All Solid State Laser Systems
Price: US $ 20-60/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal

Product Specifications


Prod Model: D5~D300mm
Type: Flat Lens
Material: Optical Glass
Shape: Round

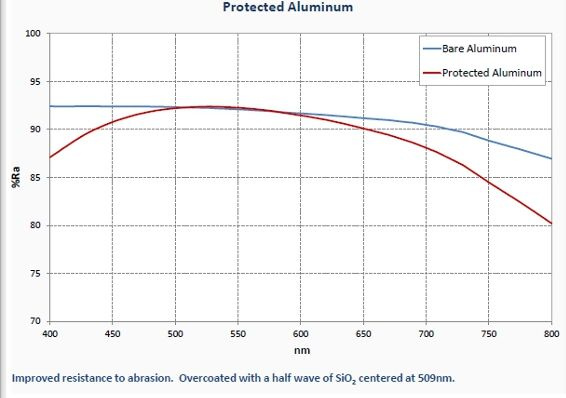

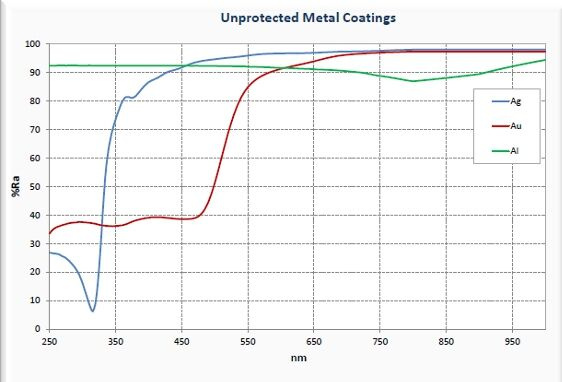

Coating: AG Au Al

Product Description

All solid state lasers require mirrors for maintaining laser beam amplification. Most resonators consist of a high reflective mirror (rear mirror) and a partial transmissive front mirror (output coupler). The rear mirrors are designed to reflect the maximum laser beam power back through the laser rod medium to the output coupler (front mirror) were a pre-determined percentage of laser beam is transmitted through the mirror to the target and balance of the beam reflects back through the laser medium for continuous amplification. Mirror substrates are typically produced from BK7 for low power lasers and fused silica for high power CW and pulsed lasers. Depending on the laser application, laser mirrors can be fabricated with a multitude of configurations; Convex, Concave, Flat, Wedged or mixture of both. A/R coatings are selected for both the laser wavelength and for the maximum damage threshold depending on laser power. 6 LASER MIRRORS For All Solid State Laser Systems Intelligent Solutions, Manufacturing & Development Laser power.
DescriptionDiameter.mmThickness.mmreflectivityWavelength.mmType
Front mirror19.059.52535%1064F/F
Front mirror19.059.52570%1064F/F
Front mirror19.059.52580%1064F/F
Front mirror19.059.52580%1064-1MCC
Front mirror19.059.52590%1064F/F
Front mirror19.059.52590%1064F/F
Front mirror19.059.52595%1064-1MCC
Rear mirror19.059.525HR1064F/F
Rear mirror19.059.525HR1064F/F
Rear mirror19.059.525HR1064-1MCC
Rear mirror19.059.525HR1064-5MCC
Rear mirror19.059.525HR532-1MCC
Rear mirror19.059.525HR1064F/F






Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.

Our Strengths

Ample, stable and cost-efficient supply of IR materials.

ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.

Consistent and high-performance manufacturing

During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.

The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.

Excellent quality and efficient service

From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.

Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.

Competitive Prices

ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.

Stable and reliable business partner

We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.

Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
