Product Specifications
Product Description
Mirrors (with coating)Protected Aluminum: Provides greater than 85% reflectivity over a wide range of wavelengths in the UV and visible portion of the spectrum
Protected Silver: Provides greater than 95% reflectivity from 450nm to beyond 12um

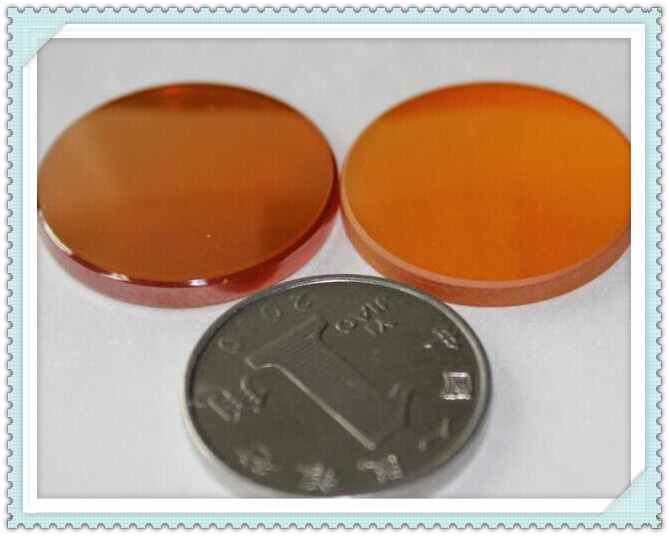

Protected Gold: Provides the highest reflectivity for IR wavelengths
Dielectric coating: Reflective rate up to 99%
Material: Bk7, Fused Silica, Silicon, Germanium, CaF2, MgF2

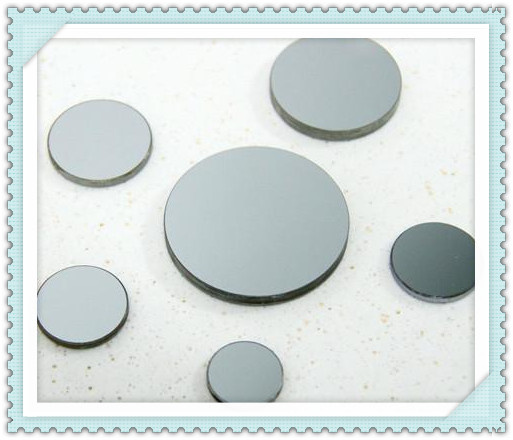

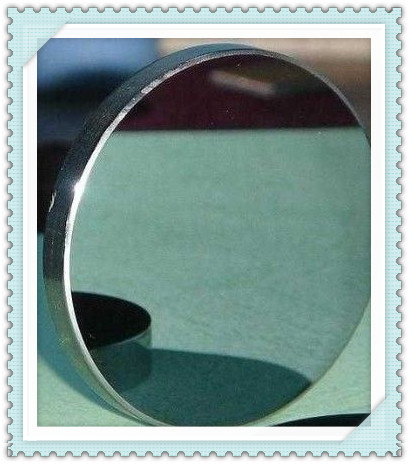

Plane Mirror Blanks

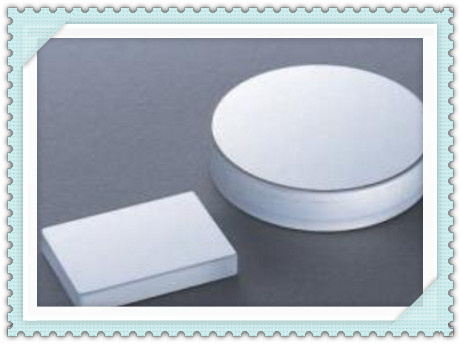

Rectangular Mirror Blanks
Square Mirror Blanks

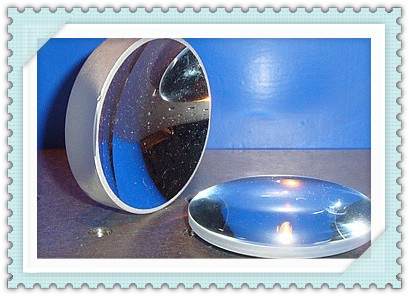

BK7 and Fused Silica Concave Spherical Mirror Blanks
BK7 and Fused Silica Convex Spherical Mirror Blanks
CaF2 Concave Spherical Mirror Blanks
MgF2 Convex Spherical Mirror Blanks
Specifications
| Material | Bk7, fine annealed (other material upon request), Fused Silica |
| Dimension Tolerance | 0.0/-0.15 mm |
| S1 Surface Figure | λ/8 - λ/2 @ 632.8 nm |
| S1 Surface Quality | 20/10 scratch & dig |
| S2 Surface Quality | Commercial polish |
| Thickness Tolerance | ± 0.20 mm |
| Clear Aperture | >85% of dimension |
| Parallelism | Less than 3' |
| Coating | Metallic or dielectric coating upon request |
| Chamfers | 0.1- 0.20 mm x 45° |
Product List
| Product No. | Diameter (mm) | Thickness (mm) |
| MIR052 | 5.0 | 2.0 |
| MIR102 | 10.0 | 2.0 |
| MIR122 | 12.5 | 2.0 |
| MIR202 | 20.0 | 2.0 |
| MIR252-1 | 25.0 | 2.0 |
| MIR252-2 | 25.4 | 2.5 |
| MIR303 | 30.0 | 3.0 |
| MIR353 | 35.0 | 3.5 |
| MIR383 | 38.0 | 3.5 |
| MIR404 | 40.0 | 4.0 |
| MIR504 | 50.0 | 4.0 |
Note: Special material and size are available upon request.
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.
Our Strengths
Ample, stable and cost-efficient supply of IR materials.
ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.
Consistent and high-performance manufacturing
During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.
The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.
Excellent quality and efficient service
From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.
Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.
Competitive Prices
ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.
Stable and reliable business partner
We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.
Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
