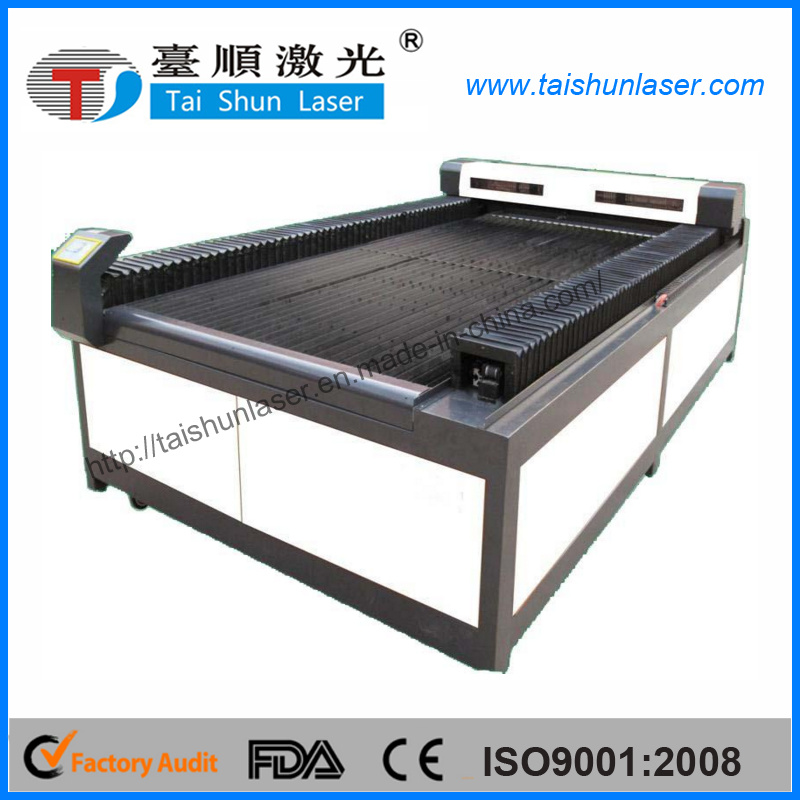

Woodworks CO2 Laser Wood Engraving Machine Tshy-10060ld
| Price: |
US $ 4200-5500/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
TSHY-10060LD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 |
| Application Material: |
Fabric, MDF PVC, Acrylic, Non-Woven, Leather |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
1000mmx600mm |
| Output Power: |
100W |
| Cutting Speed: |
Adjustable |
| Working Table: |
Honeycomb Working Table |
| Power Supply: |
AC220V+-5%50Hz |
| Motion System: |
Single Side Servo System |
| Guarantee: |
One Year Free Maintenance |
Product Description
Parameter:| Laser type | Glass Co2 laser tube | Movement system | single side servo system |
| Output power | 100W | Cooling system | Water cooling |
| Working area | 1000mmx600mm | Electrical Voltage | AC220V+-5% 50/60hz |
| Working table | honeycomb working table | Supported file format | AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF |
| Working speed | Adjustable | Standard accessories | 2 set 550W exhuast fans |
| Position accuracy | plus minus 0.1mm | Optional accessories | 80w,130w,150w laser tube,auto feeding system,water chiller |
Feature:
1 Good quality Co2 laser head with precise pattern engraving for nommetallic,such as mdf,lumber,fabric
2 Advanced CNC control technology without graphic format limited,no deformation
3 Applied for various fabric pattern cutting with fast speed
4 Our Windows based Taishun Cut control software is easy to use but very feature rich providing tools and job optimisation capabilities not found with machines that use basic software commonly in a printer-driver format.
5 Jobs can be processed at the machine via an LCD interface or directly by the PC via our software. Machine ready files can be downloaded to the laser cutting machine buffer via a standard USB to PC cable or directly via a USB drive without the need for a PC.
6 At Taishun Laser Systems we manufacture a wide range of Laser Cutters and our experts would be happy to advise you which configuration would suit your application best.
Samples
Application| Material | Cut | Engrave |
| Acrylic | Plexiglass | PMMA | Perspex | √ | √ |
| Organic board | Double color sheet | √ | √ |
| Wood | Plywood | Veneer | MDF | Balsa | √ | √ |
| Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather | √ | √ |
| Fabric | Cloth | Textile | √ | √ |
| Carpet | Mat | Rug | Wool Felt | √ | √ |
| Paper | Cardboard | Chipboard | Press Board | √ | √ |
| Ceramic | Tile | Marble | Glass | √ | √ |
| Plastic | √ | √ |
| Fiber Glass | Filter Cloth | √ | √ |
Guarantee&After-sale service1, Best components, perfect technics and strictly ex- factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like. FAQ:
Q1.What's the guarantee for the product quality?
We offer one-year free maintenance services for our customers. Generally speaking, our technician will figure out what the cause may be one the problems arise according to clients' feedback. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.
Q3. What i need to do when the machine suffer trouble?
A: Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q4. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q5 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q6: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.
Q7:Is it better to increase blow system to improve laser processing performance?
A: It works for some kind materials,it can stop firing
Q8: How long time does it take for a learning of the laser machine operation ?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation, You just need to do some simple tests on different processing materials to learn how to adjust the speed and laser power.
Q9: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.
Q10: Does it need to be connected by a laptop or computer ?
A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.
Q11:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
