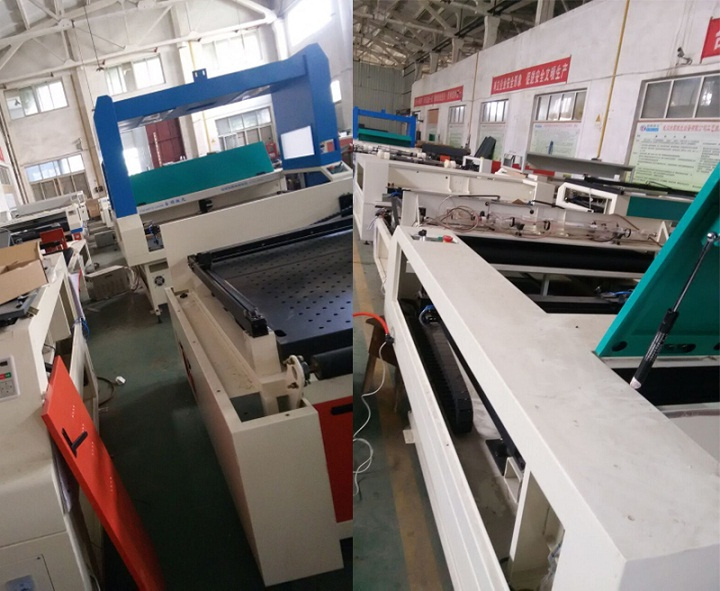

Large Format Flatbed Sofa Cover Laser Cutting Machine
| Price: |
US $ 10000-30000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
TSHY160300 |
| Laser Type: |
CO2 |
| Application Area: |
Car Accessories, Plush Toys, Home Textiles |
| Application Material: |
Fabric,Wood,Acrylic, Non-Woven, Leather |
| Power Supply: |
AC220V+-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
1600mmx3000mm |
| Output Power: |
80W |
| Cutting Speed: |
Adjustable |
| Working Table: |
Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |
Product Description
Feature
1 Cut any shapes for fabric upholstery of plaid,striped,single color,pattern,logos ,do deformation of fabric
2 Large format suitable for long textile fabric with auto feeding conveyor working table
3 You can choose a roller for fabric sending and receiving at the front and end of machine for full automatic operation
4 Our configuration are high-end of imported hiwin ball screw and Korea linear guide,American mirror and reflectors,Fulong belt
5 CCD camera,double head,red -pointer maker for optional choice(CCD red-pointer is for cutting ready labels/logos by auto focusing its cutting routh,double head is used for fast cutting demand by two head cutting simultaneously,not shift and interfere with each other)
6 Offline working USB port for machine working when power cut.
7 LCD panel with simple button for parameter setting,easy to operate.
8 For the power and format we accept customazation according to customers' demand
9 We are an factory located in laser machine city ,wuhan ,as the second largest manufacturer,rich experience,good quality,satisfyling services.
Main Body shipped:| 1). 1 × 80watts Co2 Laser tube (Installed in the machine). |
| 2). 3× Reflecting Mirrors + 1× Focusing Lens (Installed in the machine). |
| 3). 1× 3000W Industrial Water Chiller |
| 4). 1× conveyor working table OR 1× Honeycomb table |
| 5). 1× Air Compressor + 2× Exhaust blower |
| 6). 1× USB cable (Connecting PC and Laser) |
| 7). 1× Manual (User-friendly User's Manual, Guiding video & Demo video.) |
| 8). 1× Power cable(we also stock 110V~240V power version and USA.UK.EU.AU plugs for the country all over the world) |
| 9). 1× Tool box |
Samples
Parameter| Work table size: | 1600mmx3000mm |
| Laser power: | 80w |
| Laser type: | Sealed Co2 glass laser tube |
| Cooling mode: | Water cooling and protection system |
| Resetting positioning accuracy: | ±0.05mm (without red dot) |
| Compatible Software: | CorelDraw AutoCAD Photoshop |
| working table | conveyor |
| Engraving speed | 1-6000mm/min |
| Cutting speed | 1-1000mm/min |
| Cutting thickness | 0-20mm acrylic (others determined by materials) |
| Resolution ratio | ≤0.0125mm |
| Position system: | Red dot |
| Interface: | USB |
| Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
| Support graphic format | DST, PLT, BMP, DXF , AI |
| Gross power | 1000W |
| Driving mode: | stepper motor |
| Cooling mode: | Circulation water cooling |
| Working voltage: | AC 110 - 220V±10%, 50 - 60Hz or depend on customer ,10A max |
| Operating temperature | 0-45C |
| Operating humidity: | 5-95% |
| Driving system | stepper (optional servo) |
| Option: | Up and down table, rotary attachment,Rotary attachment for column materials , intelligent double heads, |
| Packing: | wooden box |
| Guarantee time: | 1 year, laser tube 4 months |
| Operation: | Video to tell customer how to operate the machine |

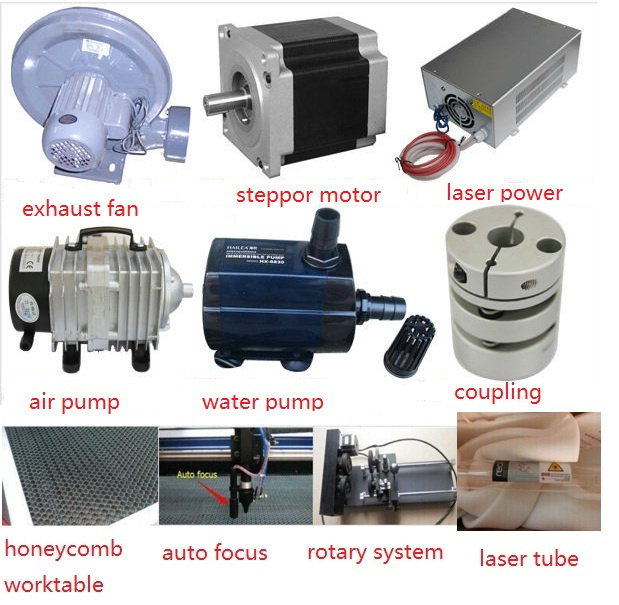

Configuration list| 1 Laser Power | 40W~180W, good quality and stable output to extend the laser tube service time |
| 2 America imported lens and mirrors | High transmittance, good focusing, reflecting effect. |
| 3 CO2 Glass sealed laser tube | China famous brand (Reci, Weiju), good beam mode stability, service time over 1500~8000 working hours. |
| 4 RD control system | It adopts current most mature technology control system,with stable performance, easy operation,practical function and friendly operation surface. |
| 5 blade worktable: | The machine adopt blade worktable,it is suitable for cutting and engraving hard materials such as acrylic,wood,plastic etc |
| 6 PMI linear square Guide Rails | It is the most famous brand for linear square guide rails,it can assure the machine has a high precision. |
| 7.Stepper motor | we adopt three phase stepper motor for laser cutting machine,it have a big power and high precision,it is suitable for cutting. |
| 8.Water-Pump | Pressurized stability, low noise, long life, small size. |
| 9.Exhaust Fan | The exhaust fan can exhaust out the smoke which will be produced during the cutting,it will product the breath in the work area. |
| 10.Air-Pump | Cylinder, piston using new type wearable material, the use of low energy consumption, large displacement, pressure higher. |
Confituration
Our Co2 laser machine range
Working area:9050,10060,13070,13090,15090,160100,180100,140100,180140,160300,130250,210300,320600
Laser power:40w,50w,60w,80w,100w,110w,130w,150w,lifetime 4000h
Please note the same format(working area)machine can be stored with different powered laser tube,the price is based on working format and laser power at the same configuration
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Watch more video:http://v.youku.com/v_show/id_XNTQ5NTc0NTI4.html laser cutting airbag applicationhttp://v.youku.com/v_show/id_XNTU2Nzc2NTky.html?from=y1.2-1-106.3.1-2.1-1-1-0-0 laser cutting carpet applicationhttp://v.youku.com/v_show/id_XNTU2NzA1MjQ4.html?from=y1.2-1-103.3.2-2.1-1-1-1-0 laser cutting foot pad for the automotive industryhttp://v.youku.com/v_show/id_XNTQ2NTY0ODcy.html?from=s1.8-1-1.2 laser cutting car cushion machinehttp://v.youku.com/v_show/id_XNTQ5NDk3MzI4.html?from=y1.2-1-103.3.5-2.1-1-1-4-0 laser engraving paper pattern machinehttp://v.youku.com/v_show/id_XNTkyNDU1NDQw.html?from=s1.8-1-1.2 laser cutting garment fabric applicationhttp://v.youku.com/v_show/id_XNjIxNjY0NzY0.html?from=s1.8-1-1.2 laser cutting slipper plush applicationhttp://v.youku.com/v_show/id_XNTU2NzY1MjU2.html?from=s1.8-1-1.2 laser cutting precious leather applicationhttp://v.youku.com/v_show/id_XNTU3NzA0Njg4.html?from=s1.8-1-1.2 laser engraving hallowing leather applicationhttp://v.youku.com/v_show/id_XNTU2ODA1Nzg4.html?from=s1.8-1-1.2 laser cutting diving fabric applicationhttp://v.youku.com/v_show/id_XNTM3NDI2MjE2.html?from=s1.8-1-1.2 laser punching holes applicationhttp://v.youku.com/v_show/id_XNTU3NjU0MTcy.html?from=s1.8-1-1.2 laser punching holes for leather material http://v.youku.com/v_show/id_XNTU2Nzg0MTky.html?from=s1.8-1-1.2 laser cutting EVA applicationhttp://v.youku.com/v_show/id_XNTU2Nzk3OTM2.html?from=s1.8-1-1.2 double head cutting insole applicationhttp://v.youku.com/v_show/id_XNTUxMDk3MTIw.html?from=s1.8-1-1.2 four head cutting plush toy material http://v.youku.com/v_show/id_XNTU3NjkwMTg4.html?from=s1.8-1-1.2 Laser cutting multi-layer Chemical fiber cloth application http://v.youku.com/v_show/id_XNTc3OTc5ODY4.html?from=s1.8-1-1.2 YAG laser cutting 0.5mm copper sheet applicationhttp://v.youku.com/v_show/id_XNTc3OTgyODA0.html?from=s1.8-1-1.2 laser cutting 1mm stainless steel applicationhttp://v.youku.com/v_show/id_XNTg4MDU4ODM2.html?from=s1.8-1-1.2 laser cutting grooving round tube applicationhttp://v.youku.com/v_show/id_XNzE1ODYwNzk2.html?from=s1.8-1-1.2 laser cutting steel sheet applicationhttp://v.youku.com/v_show/id_XNTQ2NTgwOTY0.html?from=s1.8-1-1.2 laser cutting steel sheet craft applicationhttp://v.youku.com/v_show/id_XNTgxNTI1MjE2.html?from=s1.8-1-1.2 laser engraving stainlees steel tube applicationhttp://v.youku.com/v_show/id_XNTUxMzE5ODY0.html?from=s1.8-1-1.2 rotary device installation

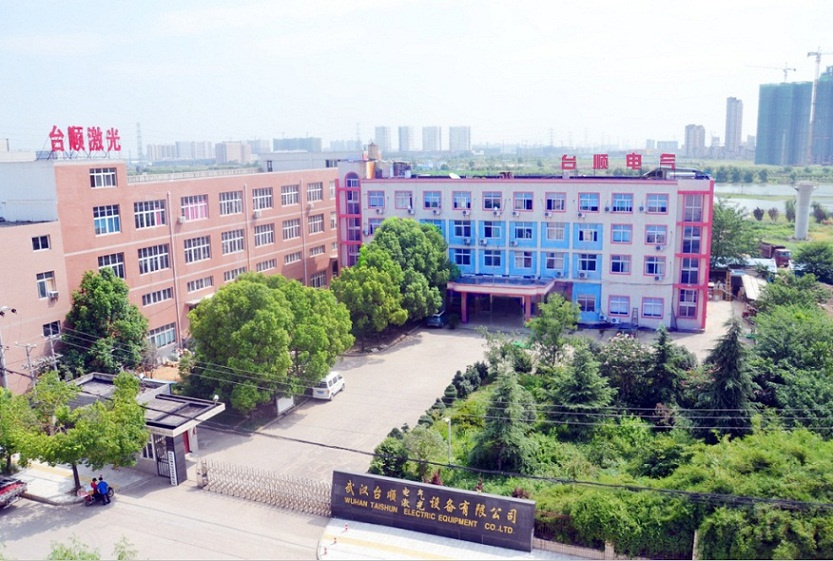

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
