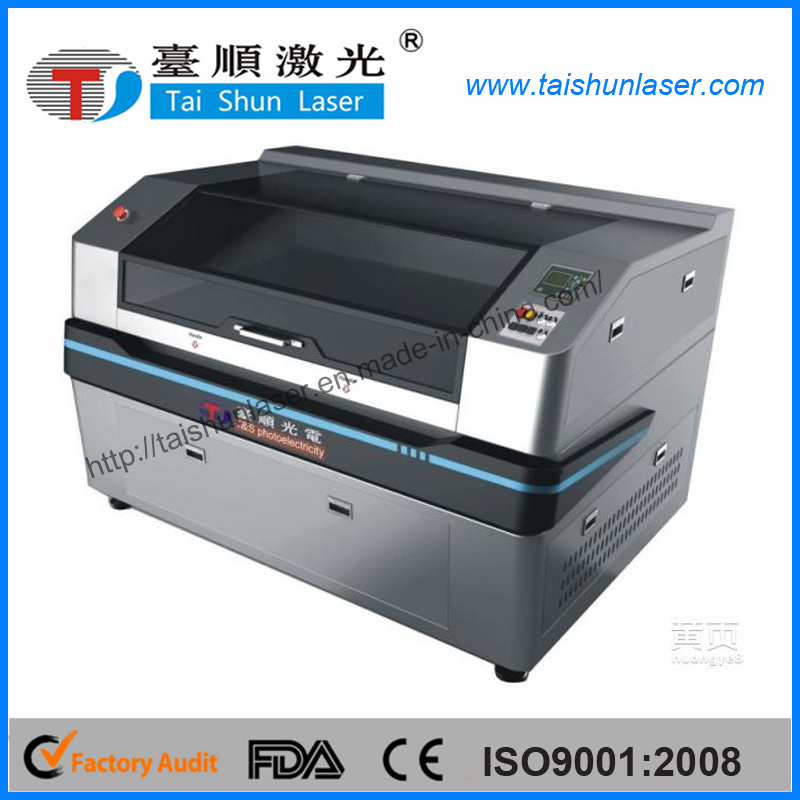

Fabric and Leather Pattern Laser Cutting Machine 80W
| Price: |
US $ 3500-5000/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
TSHY-180100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 |
| Laser Power: |
80W |
| Working Area: |
1800X1000mm |
| Working Table: |
Conveyor Working Table |
| Position Accuracy: |
+/-0.1mm |
| Movement System: |
Single Side Servo System |
| Standard Accessories: |
550W 2 Set Exhaust Fans |
| Supported File Format: |
Ai, BMP Plt Dxf Dst Ai BMP Plt Dxf |
| Guarantee: |
One Year Free Maintenance |
| Applied Material: |
Fabric Leather Plexiglass Wood Rubber |
Product Description
Main Configuration :
Working table:1800mmx1000mm conveyor table
Laser Type:Co2 glass laser tube (80W/60W/80X2w)
Auto feeder:It realizes high-speed continuous cutting on fabrics. By using this automatic material feed, filter material can be fed for laser cutting directly from the roll.
Stepper motor :x,y axial with high precision
Design software:Offline control software coreldraw,CAD,Photoshop,which support AI, BMP, DXF, DST, etc
Exhuast fan:sweep the dust and oil OR air compressor for substitute
Water chiller:offer Constant temperature for working 24hours
Optional Configuration
(1) Doule head
Cut faster and at the same time,driven separately by two motors,will not interfere with each other
(2) Automatic typesetting files
Through a simple copy collection equipment to achieve fast copy and maker function,convenient for staff operation.
(3) Auto-recognition system
High-resolution CCD camera,fast response,no sense of stay,single-screen field of view can reach 800*500mm,with strong stitching function.
Sample show:
Close up
Parameter| Working size: | 1800*1000mm | customized |
| Laser power: | 80W | 50w-150w |
| Laser tube: | Co2 sealed glass laser tube | RECI laser tube |
| Engraving speed | 0-6000mm/s | |
| Cutting speed: | 0-1000mm/min | |
| Repeating location: | ±0.1mm | |
| Resolution ratio: | 0.025mm | |
| Minimum shaping character | English Letters 1 x 1mm | |
| Highest scanning precision | 2000DPI | |
| Laser output control | 1-100% software setting | |
| Control system | DSP control system | |
| Interface | USB | |
| Software supported | Coreldraw Phototshop ,Autocad output | |
| Support graphic format | DST, PLT, BMP, DXF AI,CDR | |
| Cooling system | water-cooling and protection system | industrial Chiller |
| Driving system | Stepper motor | |
| Exhaust system | exhaust fan and air pump | |
| Offline work: | support | |
| Working voltage: | AC100V-220V±10%,50-60HZ | 110V/60Hz |
| Operating temperature: | 0-45°C | |
| Operating humidity: | 5%-95% free of condensed water | |
Fabric cutting advantages:
1)No burr/fraying with laser cutting
Laser cutting is energy centered. It makes fabric edge seal automatically.No need to re-process the patterns after one-time cutting
2) No distortion to the processed fabric
In the process of cutting, laser does not touch the processed fabric, only with laser beam working on the fabric
3) High precision
Diameter of the laser beam can be focalized into 0.1mm (top brand lens imported from world famous company II-VI-INFRARED)
Cutting is done exactly according to uploaded graphics through computer control
4) High efficiency and easy operation
Just upload the graphics into the cutting machine and laser will cut fabric into shapes as designed
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex- factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
FAQ:
Q1.What's the guarantee for the product quality?
A:We offer one-year free maintenance services for our machines. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.If problems in the process of operation,pls keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q3. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q4 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RF metal laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q5: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.
Q6: Is it harmful to human body when in operation ?
A: It is not harmful, as long as avoid to see it directly
7:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.
Our machine series:
CO2 Laser Engraving and Cutting Machine for most of the non-metal materials.
Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.
Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm Mild Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )
Notice:
Please let us know following informations:
1. What materials you want to cut ?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the material used for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.
Demo video
https://www.youtube.com/watch?v=xs_Im20mv6g carpet cutting
https://www.youtube.com/watch?v=GbkX77rZW_Q labels engraving
https://www.youtube.com/watch?v=DOUXxajO3_w insole engraving
https://www.youtube.com/watch?v=hPIgjdvG_GY fiber laser cutting metal
https://www.youtube.com/watch?v=KJ4UGkaCjkk fiber laser cutting machine
https://youtu.be/5PgXtVNajn4 large format fabric cutting
https://youtu.be/L6Rz6L3UaXY embroidery applique cutting
https://youtu.be/uy6NRT4HsrU MDF laser cutting

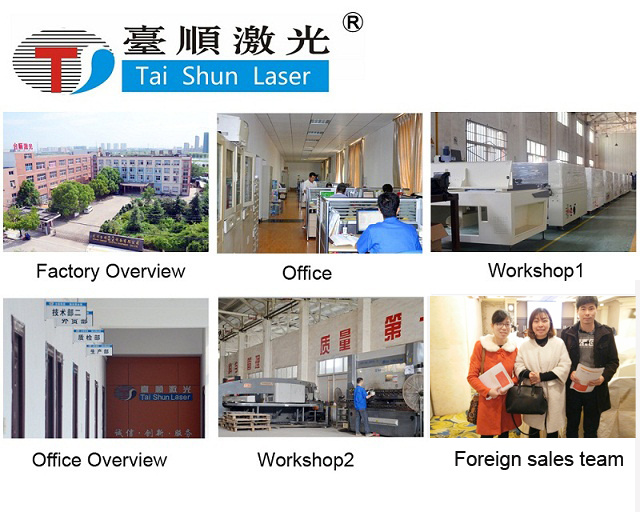

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
