Product Specifications
| Prod Model: |
TS10 |
| Applied Material: |
Plastic, Alloy ABS, MDF Plywood, Metal |
| Marking Range: |
100mmx100mm |
| Graphic Format: |
Ai, BMP, Plt, Dxf, Dst |
| Laser Power: |
20W |
| Tag Line Speed: |
7000mm/S |
| Repeat Accuracy: |
+0.003mm |
| Laser Repeat Frequency: |
20kHz-80kHz |
| Min Line Width: |
0.012mm |
| Minimum Character: |
0.15mm |

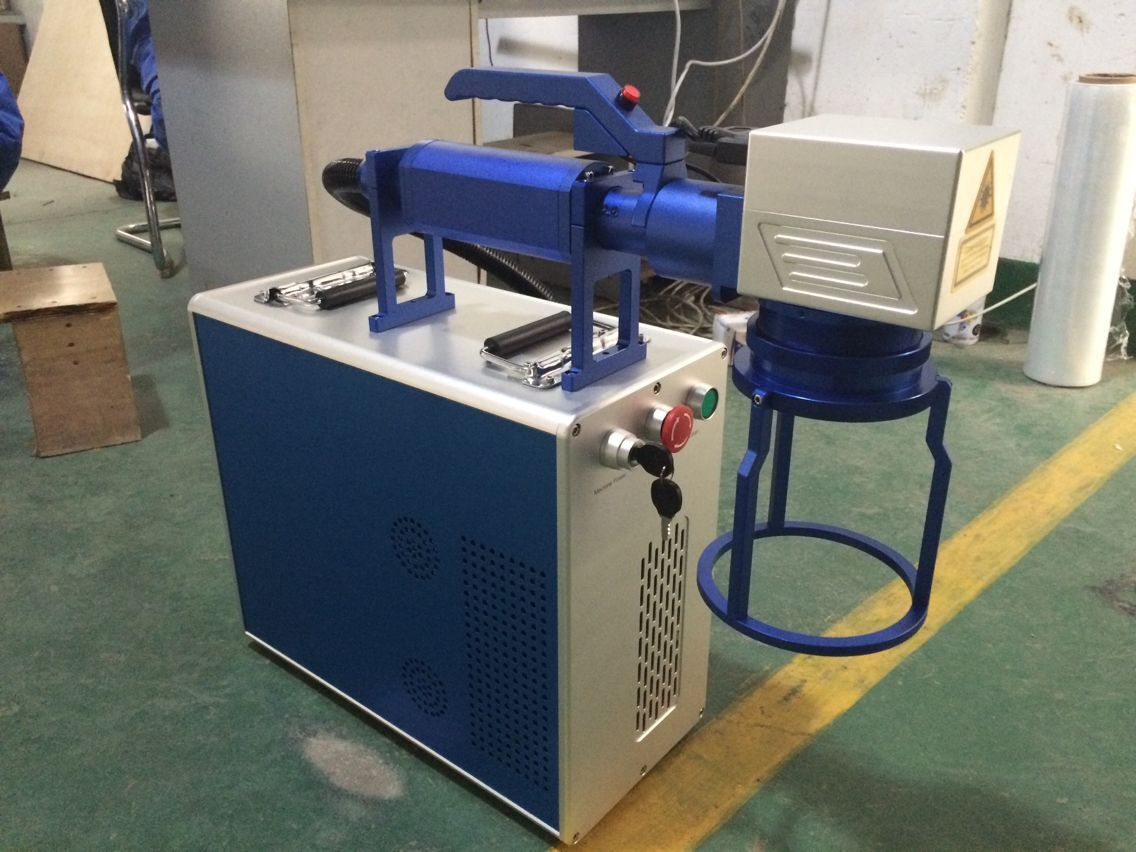

Product Description
Laser marking advantage:1 Good quality laser beam,USB control,,optical broad beam focusing System and high speed galvo scanner,stable performance,long life expentancy,free of maintanenc
2 Widely used in the field of IC electronics,medical,good,crafts,etc
3 It can be usely separately or linked with other machine in the work flow line
4The marking affect and speed fit very well with the bulk production which need high work speed,good quality
5The vector marking software support Autocad photoshop,etc. Powerful system is easy to operate
6 Permanent logo/number is as well beautiful for eye sight
7 Air cooling system,save power consumption
8 The laser repeat frequency is high and no deformation
Sample show
Applied material and industry:Metal and alloy,metal oxide,ABS materials,ink,epoxy and other materials.
It's applied for electronic,machinery,metal,printing,jewelry and other industries.
FAQ:Q1.What's the guarantee for the product quality?
A:We offer one-year free maintenance services for our machines. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.If problems in the process of operation,pls keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q3. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q4 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RF metal laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q5: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.
Q6: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.
Q7:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.
Why choose us:
1.Supported by the government of Wuhan City
2.Has its own R & D center, update for technology
3.We are the manufacturer, our price are the most competitive!
4.With 20 years history on researching and producing all kinds of laser machines
5.Our company welcomes AGENTS all over the world
After sale services:1.One year guarantee period for product quality.( Artificial damage is negotiable).
2.24hrs fast responses for customers' demand
3.Free training for machines installation and operation of the staff.
4.Free samples marking of customer provided.
Order notice:Please let us know following informations:
1. What materials you want to mark?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. Where do you want to use them for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.

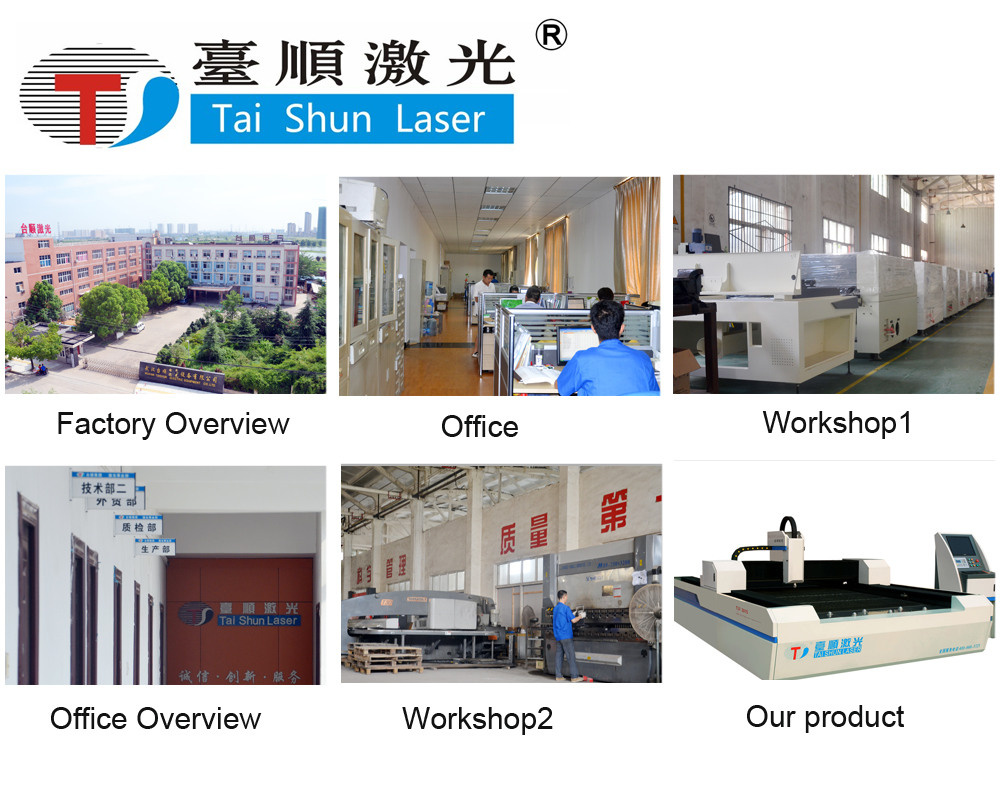

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
