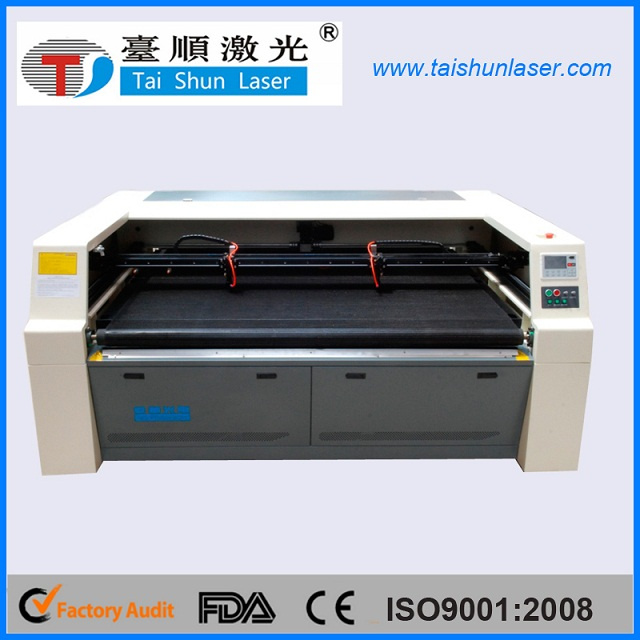

Wood Furniture Applied Laser Engraving Pattern Machine
Price: |
US $ 4000-5500/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal |
Product Specifications
Prod Model: |
TSHY180100 |
Laser Type: |
Glass CO2 Laser Tube |
Application Area: |
Clothes and Shoes Car Accessories, Home Textiles |
Application Material: |
Cloth, Plastic, Teak Padauk Leather |
Power Supply: |
AC220V+-5%50Hz |
Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
Cutting Area: |
1800mmx1000mm |
Output Power: |
80W |
Cutting Speed: |
Adjustable |
Working Table: |
Fixed Working Table |
Guarantee: |
One Year Free Maintenance |
Product Description
Product parameter:Laser type | Glass CO2 laser tube | Movement system | stepping motor system |
Output power | 80W | Cooling system | Water cooling |
Working area | 1800mmx1000mm | Electrical Voltage | AC220V+-5% 50/60hz |
Working table | fixed working table | Supported file format | AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF |

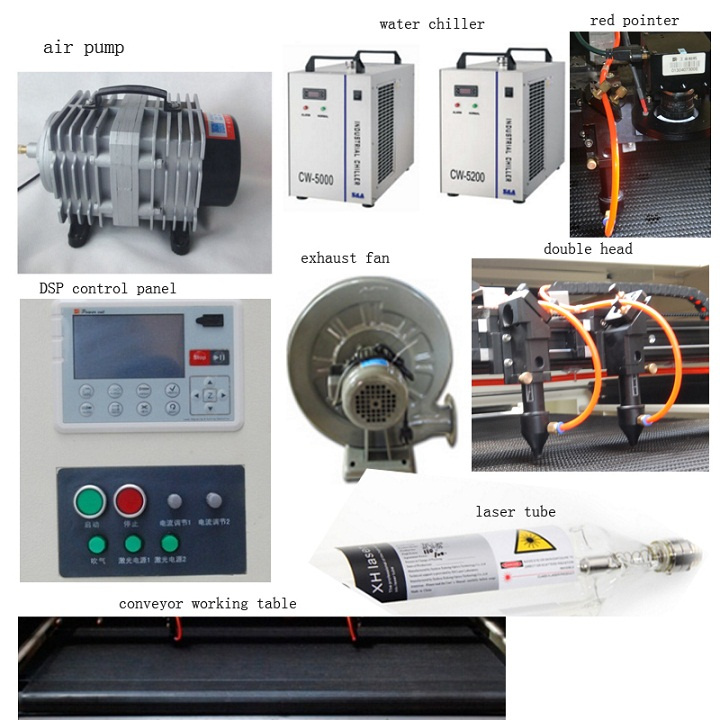

Working speed | Adjustable | Standard accessories | 1 set 550W exhuast fans |
Position accuracy | plus minus 0.1mm | Optional accessories | 100w,130w,150w laser tube,auto feeding system,water chiller |
CCD single screen view range | 120x80mm | Connect interface | USB,PC |
Our strength:
1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.
2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime.
4. For water chiller, we use CW3000 CW5000 for single head, and CW5200 for double head laser machine.
5. Good quality and unique design for red pointer and auto feeder
6. All the machine have LCD offline control system + USB port.
7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.
8. the transforming belt adopt the famous FULONG brand, it have the metal inside, so it is fasten and not easy to loosen.
9. All the power supply and laser device are kept on running for at least 24 hours testing to ensure it's in good performance.
Samples

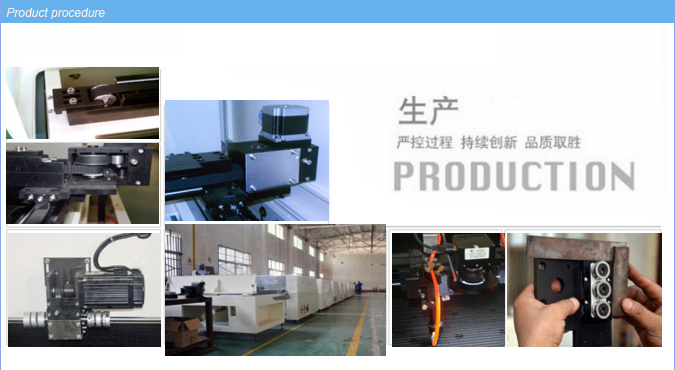

Hardware parts
Adopt imported patent guide rail for critical sections,which has special adjust
& calibration method.
It has characteristic for small kerf ,high speed and high accuracy
Movement parts
It has unique patented transmission system,improve the stability of transit system to achieve instantaneous liner speed and self-regulation function according to liner to curve,ensure the cutting edge is smooth and the curve natural
Optical Path
It adopt imported focus lens and reflecting mirrors,and it can reach mininum energy lost.
Cooling system
It adopted closed water cooling system to ensure stable operation of laser tube for a long time.It also can choose professional water chiller,to ensure recycling water temperature,making sure laser beam stably and working long
Software system
Automatic intelligent layout functions,double head shift
Automatic typesetting files to achieve continuous feeding and cutting
Through a simple copy collection devices to achieve fast copy and marker function,convenient for staff operation
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
FUll services
1. service before sales: our salesman will get a full knowledge of your requirement and supply a most suitable scheme for your product. Order detailed checked and confirmed by an official procedure
2. service during production: we will send photos of machines during production.In this way customers can get updated about status
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the any mistakes arisen
4. service after shipping: we will seed the shipping documents to you accordingly and send a shipping advice about the ETD and ETA about the goods.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some
customers have question about it. we will have professional technician to help them to install and
teach how to use through skype ,calling, video or mail.
7. service of warranty: we offer 1 year warranty for whole machine. if any parts of our machine
is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a good experiences during the process of operation
If customers have any problems of machine in 2 or 3 , 5 years , they can contact us .
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
Demo videos
https://www.youtube.com/watch?v=xs_Im20mv6g carpet cutting
https://www.youtube.com/watch?v=GbkX77rZW_Q labels engraving
https://www.youtube.com/watch?v=DOUXxajO3_w insole engraving
https://www.youtube.com/watch?v=hPIgjdvG_GY fiber laser cutting metal
https://www.youtube.com/watch?v=KJ4UGkaCjkk fiber laser cutting machine
https://youtu.be/5PgXtVNajn4 large format fabric cutting
https://youtu.be/L6Rz6L3UaXY embroidery applique cutting
https://youtu.be/uy6NRT4HsrU MDF laser cutting

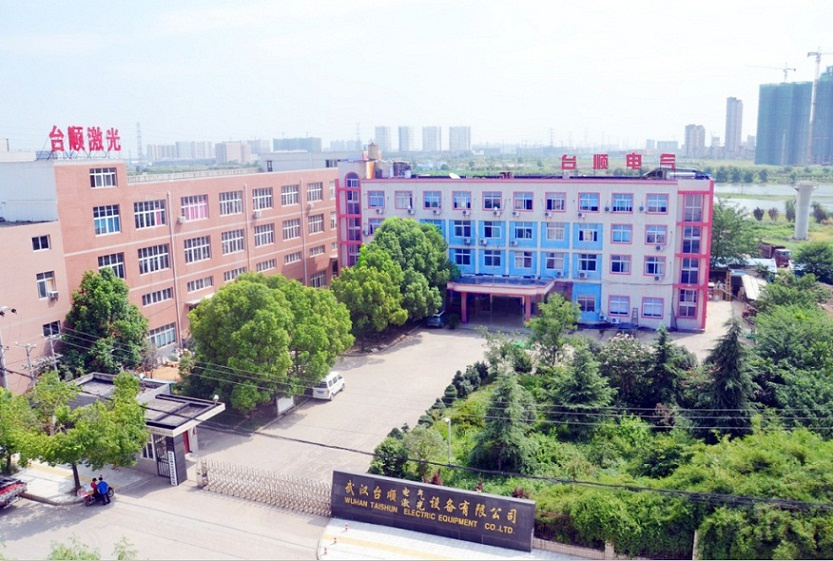

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
