Reci 80W CO2 MDF Board 1290 Laser Engraving Cutting Machine
| Price: |
US $ 1450-4950/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
FMJ1390 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
CO2 |
| Usage: |
Plastic |
| Engraving Speed: |
0-64000mm/Min |
| Cutting Speed: |
0-36000mm/Min |
| Cooling Mode: |
Circulating-Water-Cooling and Protection System |
| Operating System: |
DSP off-Line Control System |
| Operating Temperature: |
5°c-40°c |
Product Description

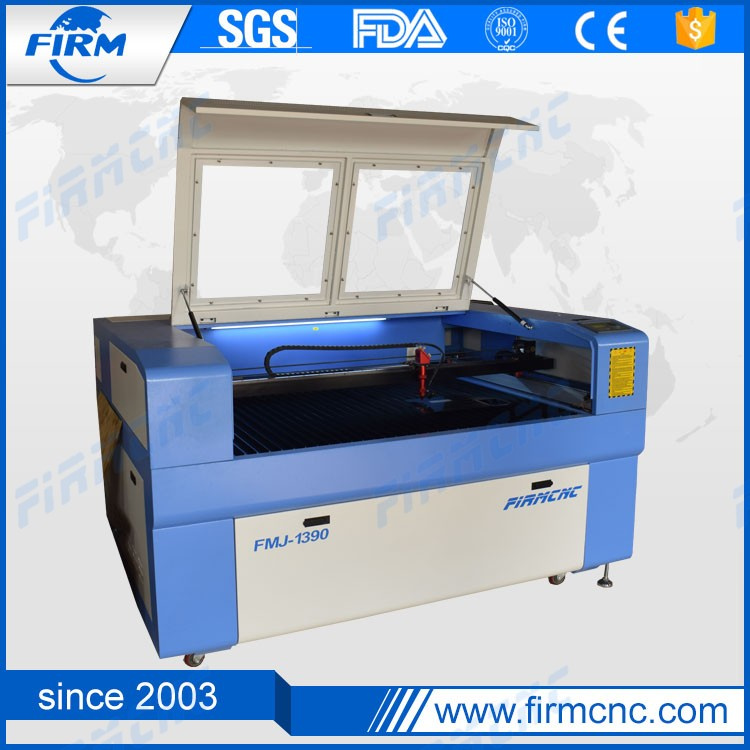

Reci 80W CO2 MDF Board 1290 Laser Engraving Cutting Machine
This machine can cut and engrave on the acrylic, the max thickness can cut and engrave on the acrylic is: 20mm. We have many size of laser machine, as working size: 1300x900mm, 1300x2500mm, 600x900mm, 1400x1000mm 1600x1000mm and so on. Laser tube has 60w, 80w, 100w, 120w, 150w, using the Beijing RECI, or Chengdu Weegiant, having the honey nest table and the blade table.
Features
1. The imported linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth. We also have the SEVEO, The motor can be choice. But price is higher than the stepper motor.
3. With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about the manual positioning.
4. High quality laser tube provides the strong beam and long service life.
5. More scientific design and high strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube. Beijing RECI LASER TUBE, can be over 10000 hours.

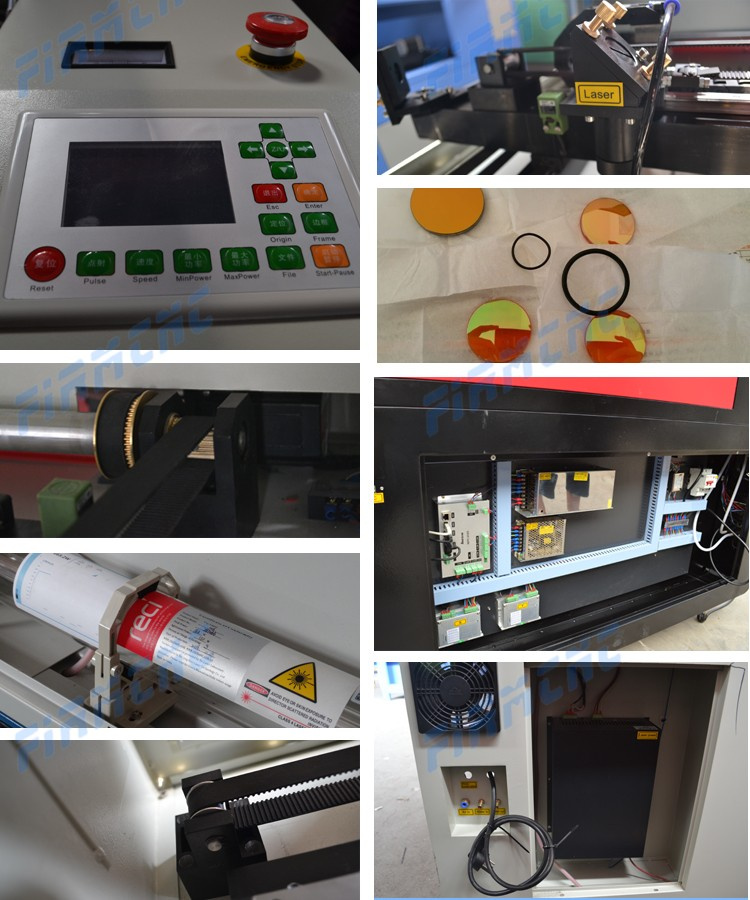

Key Features:
1). Body structure:
We adopt more scientific design and high strength metal plate frame, which can increase the fuselage
strength more than 40% to prevent the machine from distortion during long term work.
In addition, this structure is very stable and not easy to be out of shape. The sound insulation effect is good.
2)Lens and mirrors:
Imported from Singapore.
The mirrors material is the molybdenum, this is one rare metal. Its reflective effect is good. And its
diameter is more than 25mm.
The diameter of the Lens is 20mm, and the focal length is 63.5mm. So, if you want to cut something,
the edge will have the radian, not the direct one. (the cutting effect is good enough)
3) Hiwin square rails from Taiwan:
#The square rails has more higher precision than the round ones.
#The positioning accuracy is high; Less wear and tear can maintain high accuracy.
#This square rails apply to high-speed move and greatly reduce the drive horsepower the machine required.
#It can bear the load from left and right / up and down at the same time.
#The essembling is easy and has the performance of interchangeability, the lubrication structure is simple.
4) Driving medium:
The driving medium are adopted the aluminum pieces.
It is not easy to rust.It can work long time without deformation.
In addition,the accuracy of it is high.
5) There is water protection device on our machine:
When there is no water in the tank,this water protection device can remind you (there is no light in the laser tube),
so,it can protect the laser tube from damage.
6) Advanced DSP control system:
Advanced DSP control system with professional motion control chip, has a good function of being secutive / high speed curve cutting and shortest path selection, it can improve the working efficiency a lot.
7)Reci Laser tube:(80w and higher power)
8) Every set machine has the U disk offline control system.
You can operate the machine without the computer, and it is more convenient and fast.
Techncial specification| Model | FMJ series |
| Engraving Area (mm)W*L | 900*600 | 1300*900 | 1400*1000 | 1300*2500 |
| Laser tube power | 60W 80W 100W 120W 130W 150W |
| Laser Type | CO2 sealed laser tube |
| Engraving Speed | 0-64000mm/min |
| Cutting Speed | 0-36000mm/min |
| Resetting positioning accuracy | ≤±0.01mm |
| Laser Output | 1-100%software setting |
| Cooling mode | Circulating-water-cooling and protection system |
| Machine control and drive | Speedy DSP controlling, stepper motor |
| Cutting Platform | knife-strip platform |
| Min. shaping character | Character2.0mm×2.0mm,English1.0mm×1.0mm |
| Power Supply | AC220V 50HZ |
| Operating system | DSP off-line control system |
| Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc. |
| Operating Temperature | 5°C-40°C |
| Operating Humidity | 5-95%(Free of Condensed Water) |
| Compatible Software | CorelDraw ,AutoCAD transmit directly |
| Optional Spare Parts | Rotary system, Industrial Chiller, Infrared Locating System,
Laser Tube, Up-down clump |
| Recommended Spare Parts | Laser Tube |

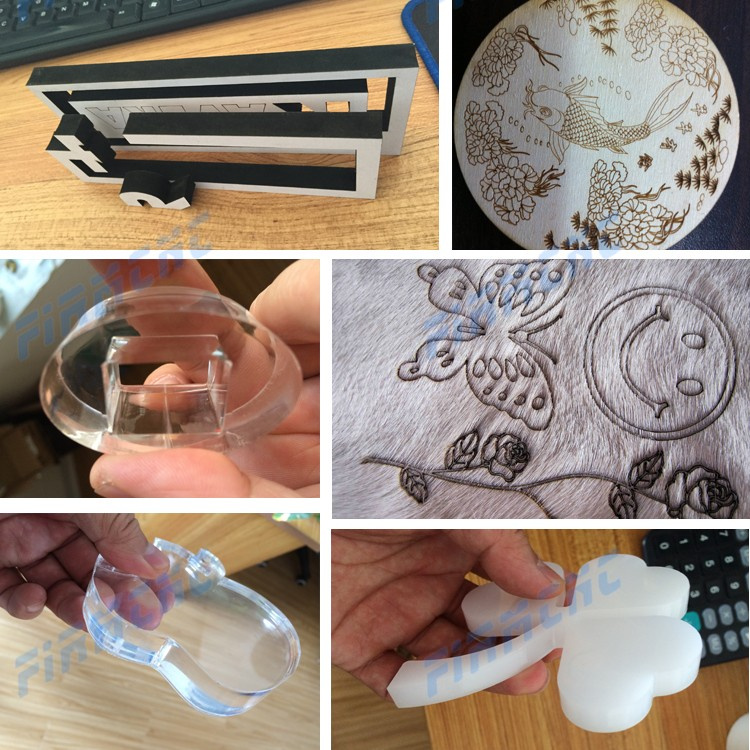

Application
Advertisement signs and marks making, handicraft industry, crystal accessories, paper
cutting, wood and bamboo industry, printing industry, clothing and leather industry,
garment industry, decorative industry, photo frame making and so on.
Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
After sale:
1. We would provide English Version working manual.
2. If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.
3. Machine warranty is one year. So if your machine has any unintentional damages,we would provide parts for free.
4. If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
5. Could be remote control if needed.

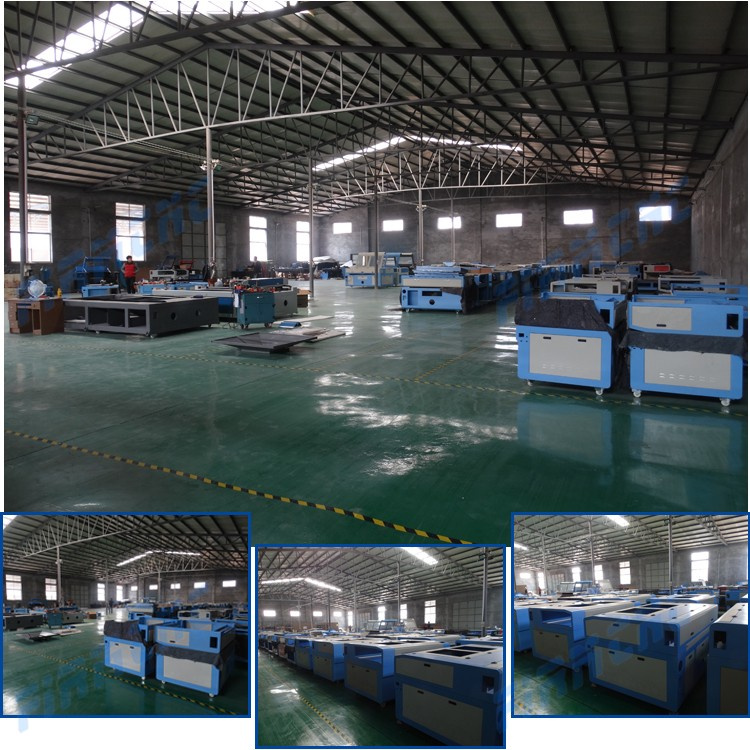

Our company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price,
clients need to arrange shipment by themselves or their agents.JINAN FIRM CNC EQUIPMENT CO.,LTD
