CO2 Laser Engraving Cutting Machine Laser Machine
| Price: |
US $ 3000-8000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram |
Product Specifications
| Prod Model: |
FMJ1390 |
| Engraving Machine Type: |
Laser Engraving Machine |
| Working Area: |
1300* 900mm |
| Laser Power: |
40W, 60W, 80W, . 100W, 130W, 150W 180W |
| Laser Type: |
CO2 Reci Laser Tube |
| Transmission Way: |
Belt Drive |
| Engraving Speed: |
0-1200mm/S |
| Reposition Accuracy: |
± 0.01mm |
| X Y Guilding System: |
Linear Guide Rails |
| Driving System: |
Stepper Motors |
| Control System: |
Leetro Control System |
Product Description

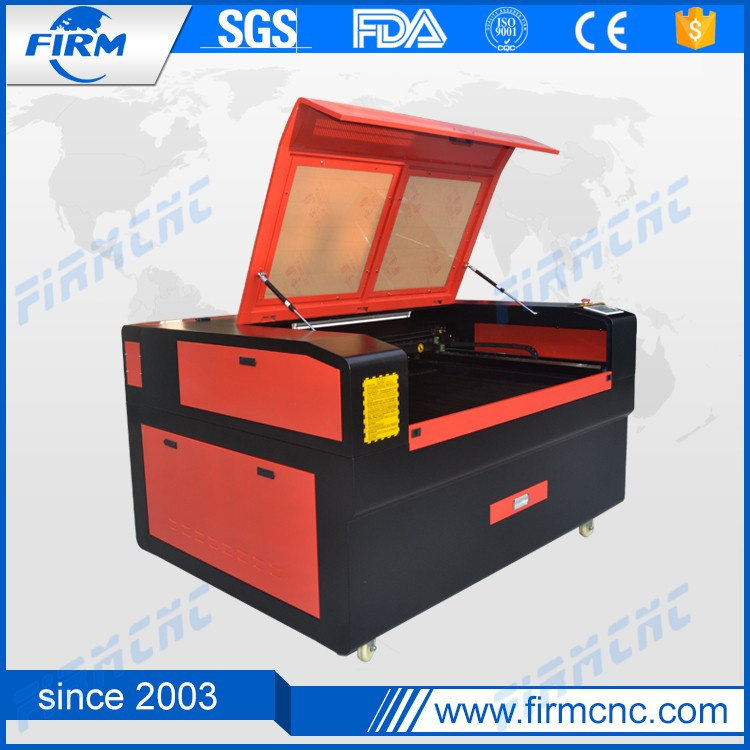

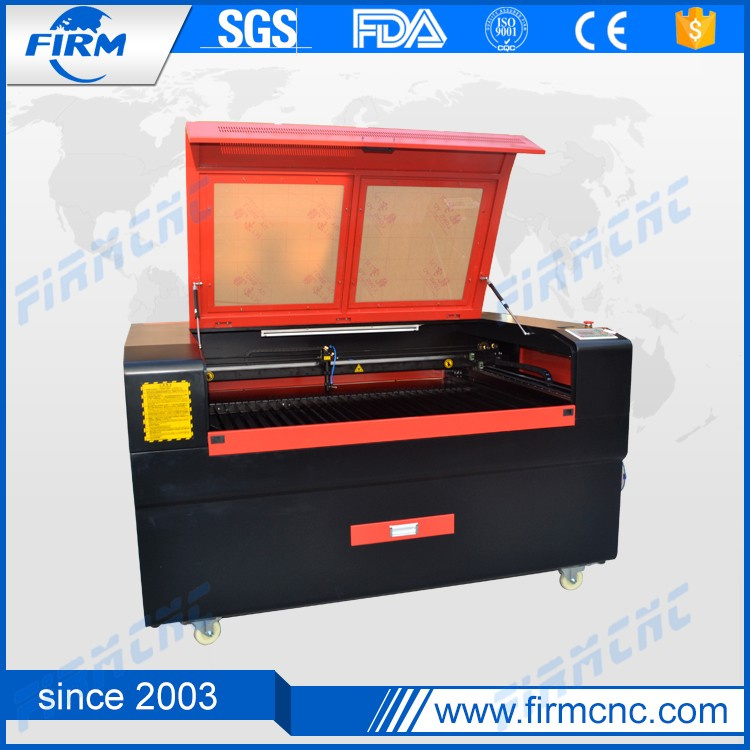

CO2 Laser Engraving Cutting Machine Laser Machine
# 1300* 900mm working area
# reci co2 laser tube
# high precision belt drive
# Leetro control or Ruida control system

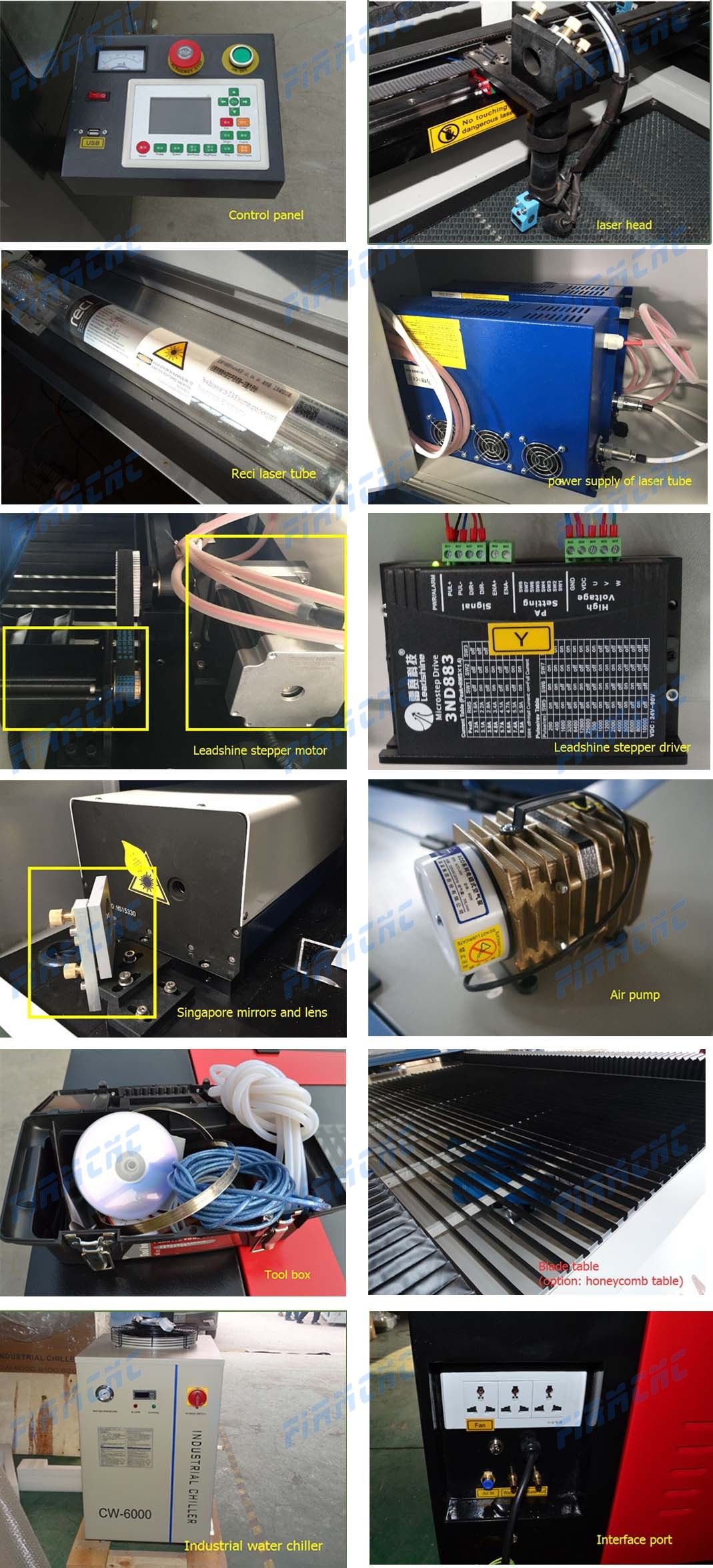

Main features: 1. RECI brand laser tube--60W, 80W, 100W, 150W, 180W, which is very good for engraving and cutting work.
2. Beam is drawn out of high hardness alloy aluminum material, large power subdivision step-motor
3. Can add Red Light Pointer, Up-down workable, Rotary attachment for this machine to make it more
multifunctional.
4. HIWIN Linear Rail, durable rubber belt, which can assure high cutting precision. Technical specification| Model | FMJ1390 |
| Laser power | 80W/100W/130W/150W |
| Working area | 1300x900mm |
| Cutting speed | 0-20000mm/min |
| Engraving speed | 0-60000mm/min |
| Power supply | 220V, 50Hz/220V, 60Hz |
| Working temperature | 0-45°c |
| Working humidity | 5-95% |
| Driving mode | Stepping motor |
| Cooling mode | Water cooling |
| Gross power | Less than 2500W |
| Software | Main graphic format supported: BMP, PLT, DST, SXF, ALD |
| Direct output | CAD, Coreldraw, photoshop |
Standard accessories1) 2×Air pumps/compressors for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans/Blowers with Tube ducts (install inside machine)
3) 1×Industrial chiller(cool the laser tube)
4) 1×Water protection(make sure the water cycle is normal)
5) 1×USB Cable (connecting PC and laser)
6) 1×DVD (including software, user manual, guiding videos etc)
7) 2×Power cables
8) 1×Tool boxMachine condition1. Every machine need to be passed 48 hours up to 72 hours operational testing before send out
2. Machine warranty is one year
3. Laser tube warranty
(1)Normal laser tube warranty is 3months ,working time is about 1500-3000 working hours
(2)RECI brand laser tube warranty is 8 months ,working time is about 8000-10000 working hoursApplicable materialsWood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries
Advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry
Guarantee and After Sale Service1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day,free technical support with different languages.

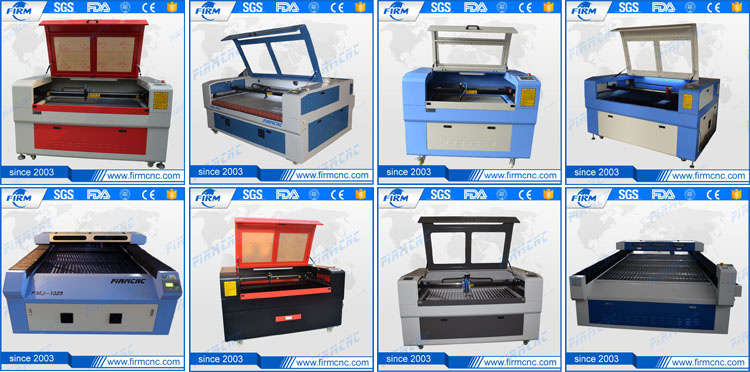

Other type laser machines for your reference

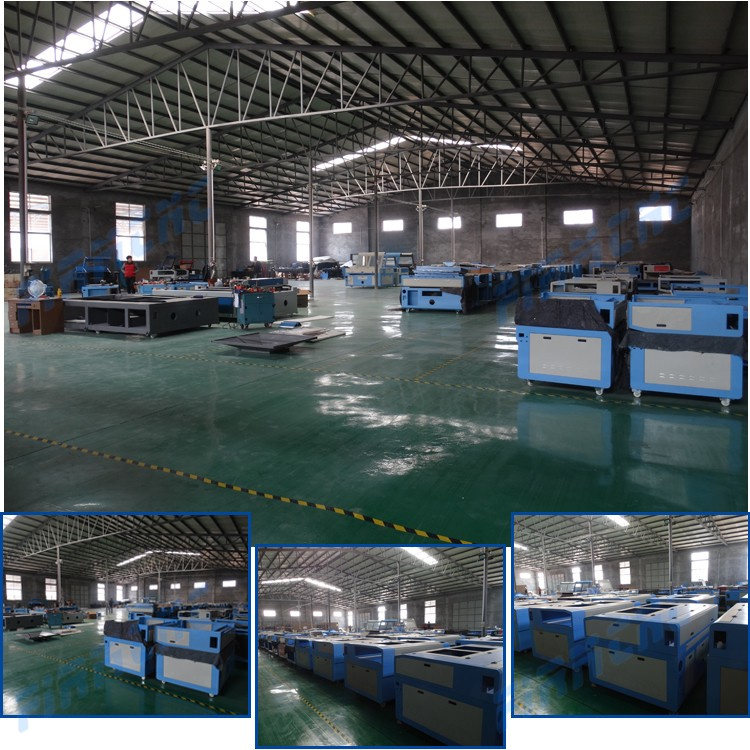

Factory exhibition
All of our macine can be customized, thanks for your reliance and support.
We' ll do our best to accomplish your sincere requirement. If you are interested in our machine, please contact me.
