| Price: | US $ 2300/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | FM6090 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area(mm): | 600*900*150mm |
| Transmission: | Tbi Ball Screw, Hiwin Square Rail |
| Spindle: | 1.5 Kw Watercooling Spindle |
| Control System: | Ncstudio/DSP as Control |
| Engraving Speed: | 8000mm/Min |
| Xyz Positioning Accuracy (mm): | <0.01 |
| Repetitive Positioning Accuracy(mm): | <0.05 |
| Gantry Height (From Table): | 300 mm |
| Function Of Re-Carving After Break Point: | Available |
| Work Off-Line: | off Line Working DSP |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | ISO |
| Color: | According to Your Requirements |

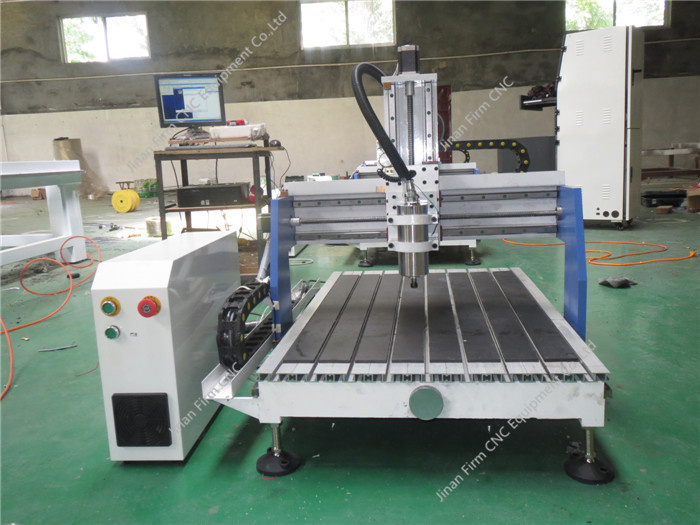

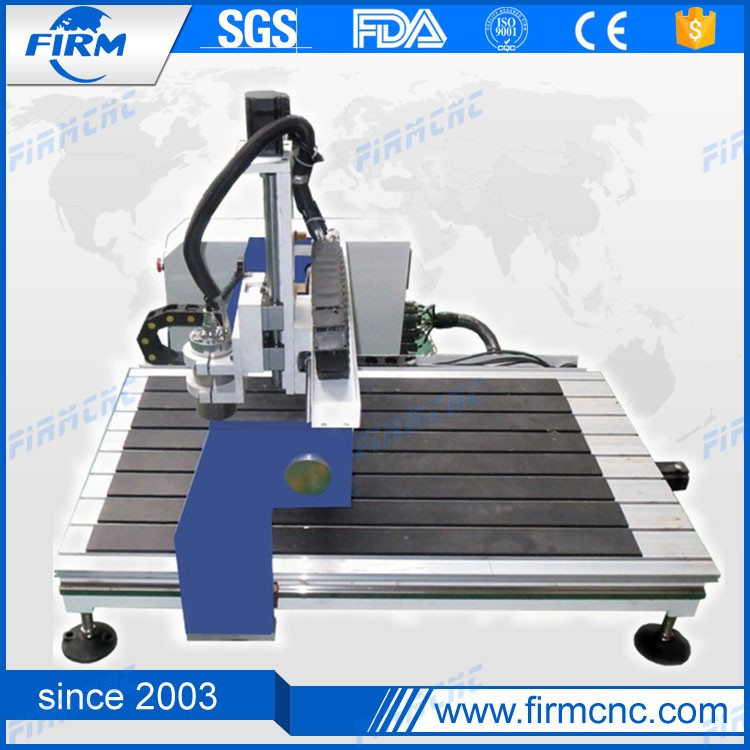

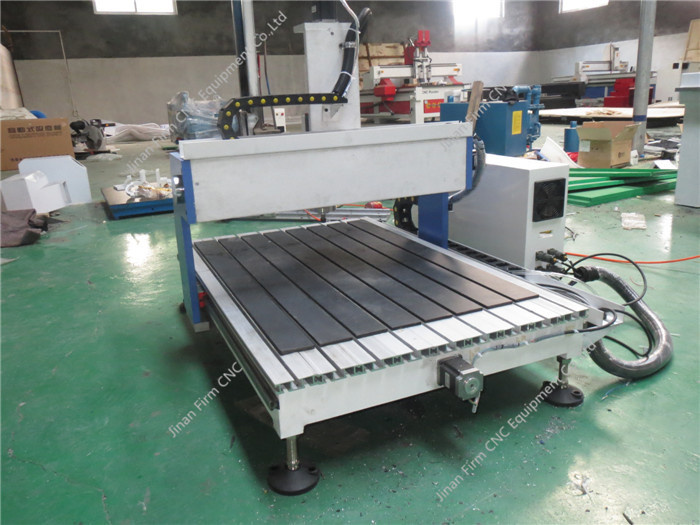

6090 Desktop CNC Router&CNC Wood Router
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 2 years
8.Door-to-door technical service and 24 hours technology online support
No. | Description | Parameters |
1 | Working Area | 600mmx900mmx150mm |
2 | Dimension(L*W*H) | 1420mm×1120mm×500mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.02/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.02mm |
5 | Table Surface | T-slot table |
6 | Table Size | 800mm×1250mm |
7 | Inverter: | Chinese Fuling Inverter/Taiwan Delta Inverter |
8 | Spindle | 1.5KW Chinese Hanqi water colling spindle |
9 | Limit switch | Japan Omron limit switch |
10 | Oil LubricationSystem | Manual |

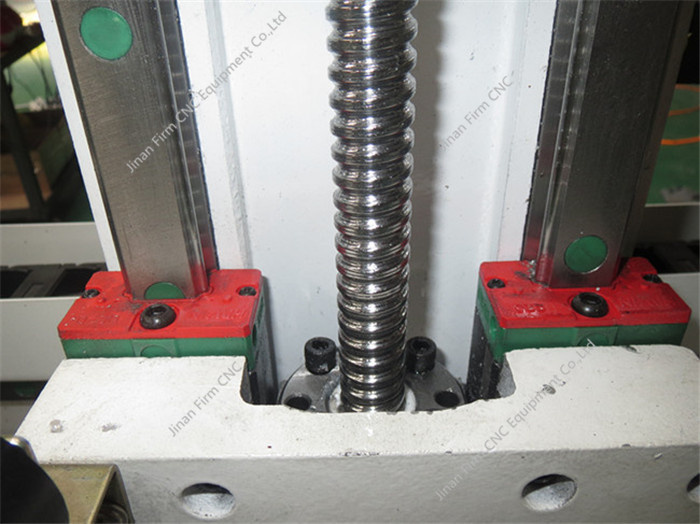

11 | X, Y,Z Transmission | Taiwan Hiwin Square Rail and TBI Ball Screw |
12 | Max. Power Consumption | 3.5KW |
13 | Max. Rapid Travel speed | 12000mm/min |
14 | Max. Working Speed | 8000mm/min |
15 | Spindle Power | 1.5KW(optional:2.2KW/3KW) |
16 | Spindle Speed | 0-24000RPM |
17 | Motors | 450A stepper |
18 | Working Voltage | 220V/1P |
19 | Command Language | G Code |
20 | Operating System | DSP System/NC-studio/Mach3 |
21 | Computer Interface | USB |
22 | Collet | ER16/ER20/ER25 |
23 | X,Y Resolution | <0.03mm |
24 | Software Compatibility | Artcam Software/Type3 Software |
25 | Running Environment Temperature | 0 - 45 Centigrade |
26 | Relative Humidity | 30% - 75% |
27 | Packing Size | 1520mmX1220mmX700mm |
28 | N.W. | 80KG |
29 | G.W. | 160KG |
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Jinan Firm CNC Equipment Co ., Ltd is located in Jinan, Shandong Province ,which
specializes in manufacturing CNC and laser machines.
Our main products are CNC Router and Laser Machine. 5-Axis Machine Center, 4-Axis
Machining Center, 3-Axis ATC CNC Router , General 3-Axis CNC Router, CNC Plasma
Cutting Machine. We have two factories for product. The application covers Woodworking, Advertising , Marble, Metal, Nonmetal, MDF, Plastic, etc. Our products are widely sold in many European, American countries, Africa, Asia, ect.
We are still trying our best to product innovative products to help customers lower
their costs and increase their returns. If you are interested in our products, please do
not hesitates to contact us for future cooperation. We hope to get mutual benefits with
you in the near future. cking & shipment :
Save space as much as possible for container loading.
ur service:
1. Free samples(I can help you process samples for free.)
2.Warranty:1 year
3.English software, user manual and operation CD videos.
4.Door-to-door technical service and 24 hours technology online support with Skype,WhatsApp,QQ or by mail and phone.
5.International quality certificate:CE,ISO9001:2008,Electrical components are UL and CE certificated.
6.Every cnc router machine must be tested for 18 hours before delivery , so all of them are absolutelyqualified.
FAQ:
1.How long about the machine's guarantee?
1 year
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
