| Price: | US $ 5200/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | FM1325 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Speed: | 25000mm/Min |
| Working Form: | Full-Automatic |
| Mechanical Accuracy: | <0.03/300mm |
| Data Transmission: | PC Connect |
| Spindle Power: | 24000rpm |
| Frame: | Welded Structure |
| Software Compatibility: | Type3 (Option: Artcam) |
| Collet: | Er25 |
| Operating System: | DSP/Nc Studio |
| Table Surface: | Vacuum and T-Slot Combined |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | ISO |
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Technical Parameters:
No. | Description | Parameter |
1 | Working Area | 1300mmx2500mmx200mm |
2 | Dimension(L*W*H) | 1620mm×3300mm×1500mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.02/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.02mm |
5 | Table Surface | T-slot and vacuum combined table |
6 | Table Size | 1420mm×3000mm |
7 | Inverter: | Chinese Fuling Inverter/Taiwan Delta Inverter |
8 | Spindle | 3KW Chinese Hanqi water colling spindle |
9 | Limit switch | Japan Omron limit switch |
10 | Oil LubricationSystem | Manual |
11 | X, Y,Z Transmission | Taiwan Hiwin Square Rail and TBI Ball Screw |
12 | Max. Power Consumption | 6KW |
13 | Max. Rapid Travel Rate | 33000mm/min |
14 | Max. Working Speed | 25000mm/min |
15 | Spindle Power | 3KW(optional:2.2KW/3KW) |
16 | Spindle Speed | 0-24000RPM |
17 | Motors | 450B stepper |
18 | Working Voltage | 220V/380V |
19 | Command Language | G Code |
20 | Operating System | DSP System/NC-studio |
21 | Computer Interface | USB |
22 | Collet | ER25 |
23 | X,Y Resolution | <0.03mm |
24 | Software Compatibility | Artcam Software/Type3 Software |
25 | Running Environment Temperature | 0 - 45 Centigrade |
26 | Relative Humidity | 30% - 75% |
27 | Packing Size | 2120mmX3700mmX1900mm |
28 | N.W. | 1500KG |
29 | G.W. | 1600KG |

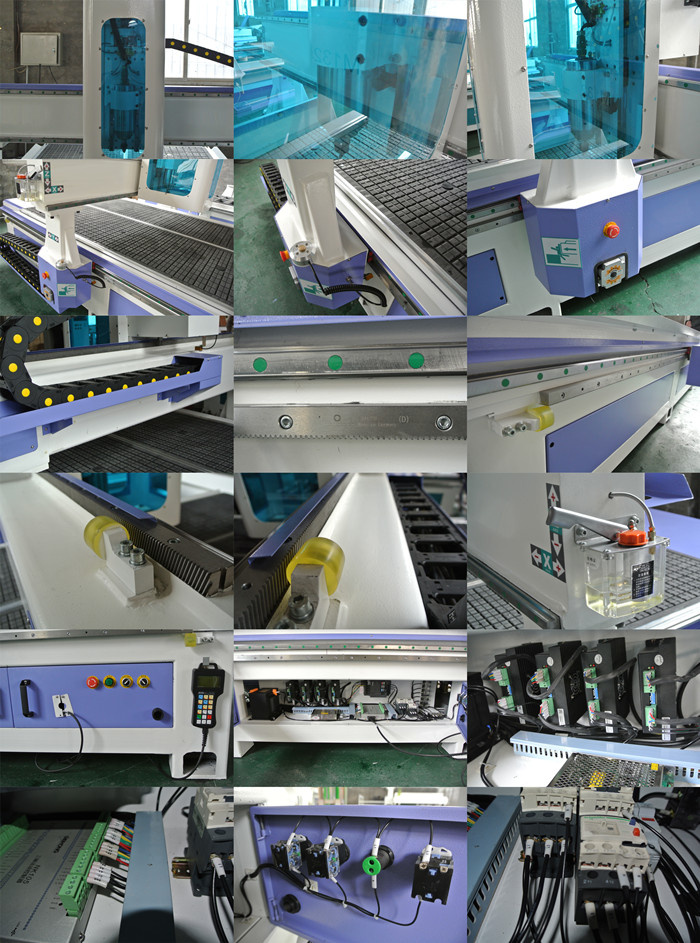

Details:
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Packing & shipment :
Save space as much as possible for container loading.
Our partners:
Certificates:
FAQ:
1.How long about the machine's guarantee?
1 year
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
