| Price: | US $ 5000-9000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | FM1325 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: | 1300*2500*200mm |
| Table: | T-Slot and Vacuum Table Combined |
| Spindle: | Italy Hsd Spindle/Changsheng Water Cooling Spindle |
| Guid Rail: | Taiwan Hiwin Guid Rail |
| Transmission: | Motors and Reducers |
| Motor: | Stepper Motor or Servo Motor |
| Inverter: | Fuling/Delta |
| Control: | Nk105 DSP |
| Software: | Original Artcam/(Type3 as Your Choice) |
| Warranty: | 2 Years |
| Spindle Layout: | Vertical |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |

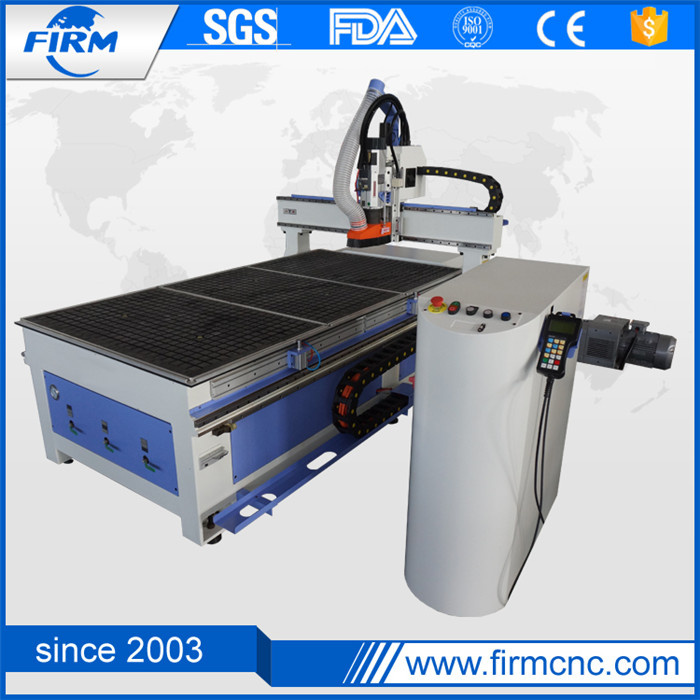

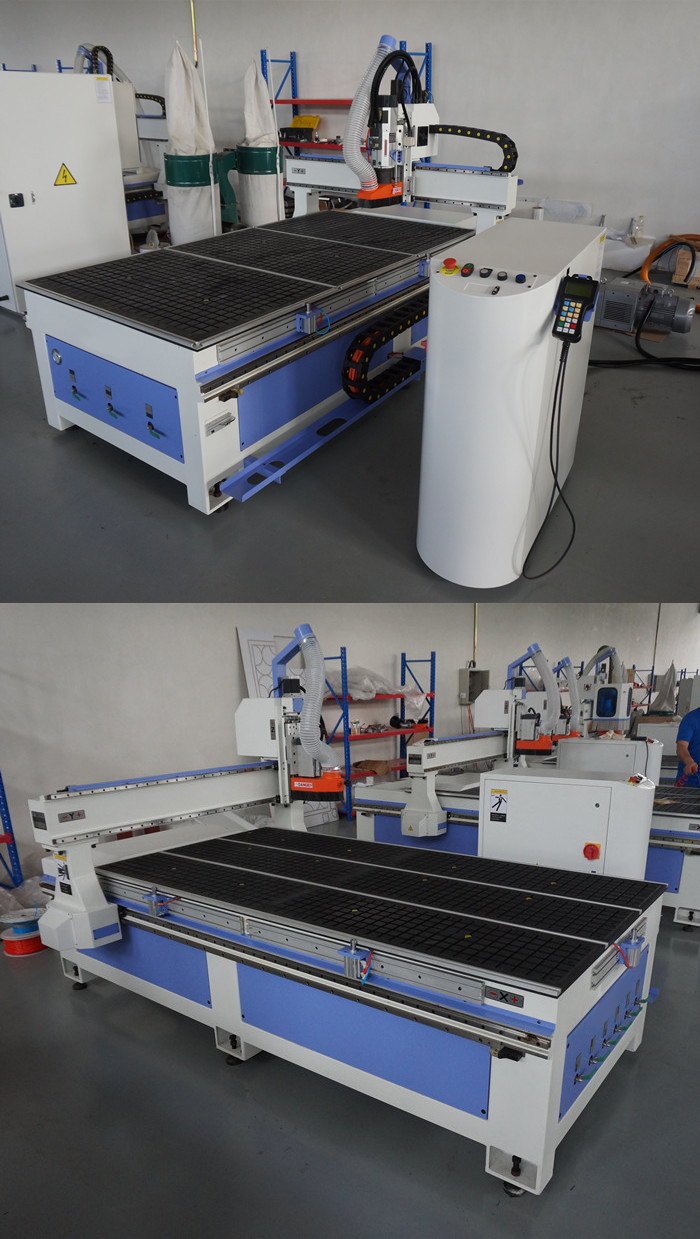

Ce Support Wood MDF Engraving Cutting CNC Router
Technical specification:
No. | Description | Parameter |
1 | X,Y,Z Working Area | 1300mmx2500mmx200mm |
2 | Table Size | 1450mm×2940mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.02/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.02mm |
5 | Table Surface | Vacuum and T-slot table |
6 | Frame | Welded steel tube structure |
7 | Inverter: | Chinese Fuling Inverter/Taiwan Delta Inverter |
8 | Spindle | CS water colling spindle/ Italy HSD air cooling spindle |
9 | Limit switch | Japan Omron limit switch |
10 | Oil LubricationSystem | Manual |
11 | X, Y Structure | Rack and Pinion Drive, Hiwin Square Rail |
12 | Z Structure | Hiwin Square Rail and Ball Screw |
13 | Max. Power Consumption | 5~7KW |
14 | Max. Rapid Travel Rate | 33000mm/min |
15 | Max. Working Speed | 25000mm/min |
16 | Spindle Power | 3.5/4.5/5.5/6 KW |
17 | Spindle Speed | 0-24000RPM |
18 | Motors | 450B stepper/Yaskawa servo |
19 | Working Voltage | 380V/220V |
20 | Command Language | G Code |
21 | Operating System | NK105 DSP |
22 | Computer Interface | USB |
24 | Collet | ER25 |
25 | X,Y Resolution | <0.03mm |
26 | Software Compatibility | Artcam Software (Option: Type3 Software) |
27 | Running Environment Temperature | 0 - 45 Centigrade |
28 | Relative Humidity | 30% - 75% |
29 | Packing Size | 3150mmX2100mmX1900mm |
30 | N.W. | 1500KG |
31 | G.W. | 1800KG |
32 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
Syntec Control System | ||
Dust Collector | ||
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System |

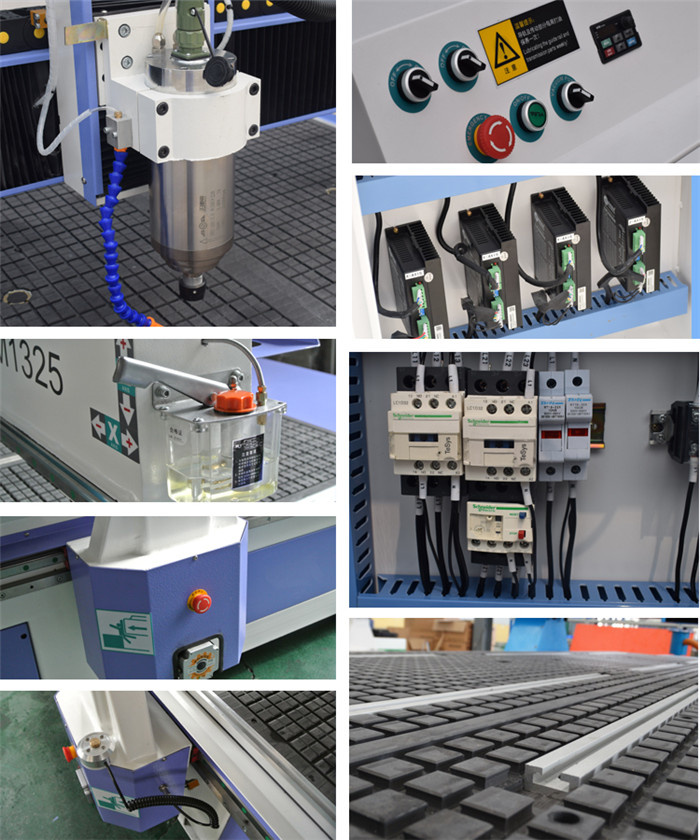

Details:

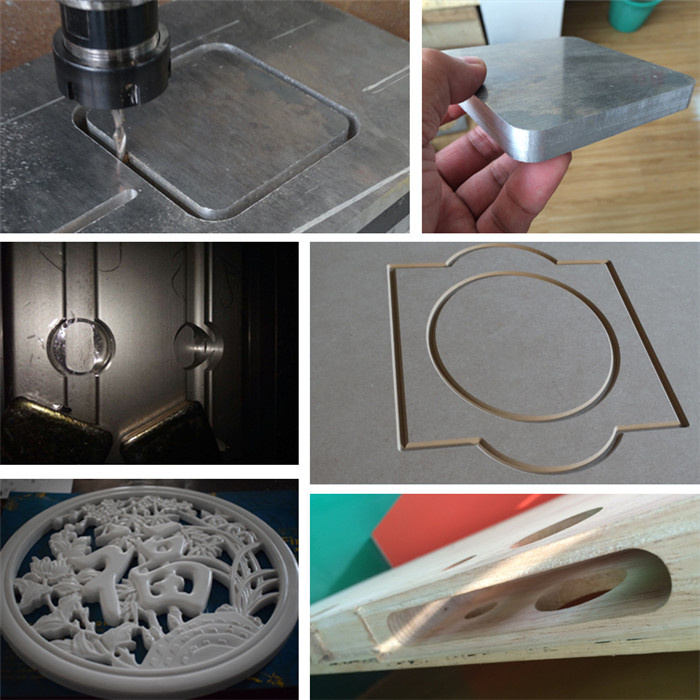

Application Industry and Materials:
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,MDF paint doors,solid wood doors,composite doors,
cupboard doors and windows,beside cabinets,folding screen etc.
The advertising Industry:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards(drilling and engraving),Double color boards,acrylic etc.
Artwork Industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Exhibition Industry: Showcases, etc.

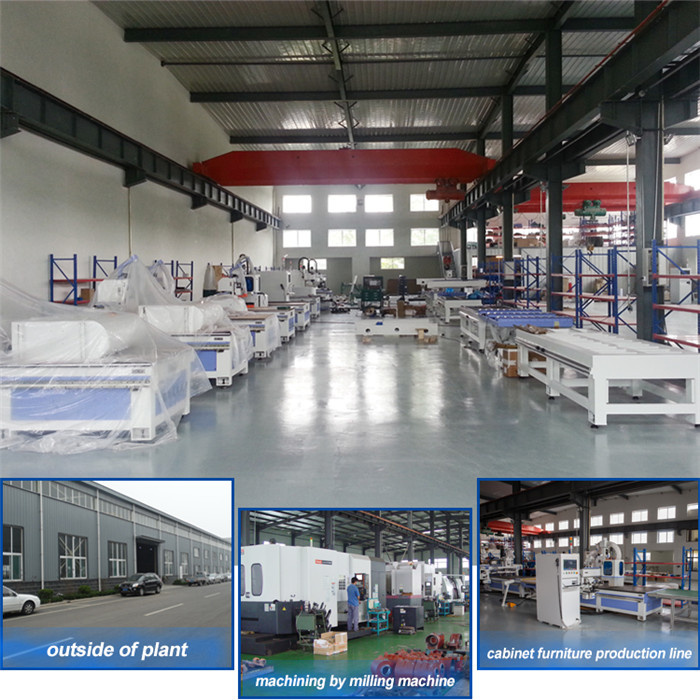

Our Company:
Jinan Firm CNC Equipment Co., Ltd producing cnc router is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router,wood cnc router, stone cnc router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision cnc routers and cnc machines.
Packing & shipment :
Save space as much as possible for container loading.
Our service:
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
