| Price: | US $ 3800-4600/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | TSHY13090 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Power: | 60W/80W/100W/130W/150W |
| Cutting Area: | 1300mmx900mm |
| Cooling Mode: | Water Cooling |
| Place Of Origin: | Wuhan, China (Mainland) |
| Working Table: | Fixd or Knife Worktable |
| Brand Name: | Taishun |
| Graphic Format Supported: | Ai, BMP, Dst, Dwg, Dxf, Dxf,Plt |
| Driving System: | Stepper |
| Optional: | CO2 RF Metal Laser Tube, Auto Feeding System |
| Standard Accessories: | 2 Sets of 550W Exhaust Fans |
Parameter:
Model | TS9050 TS-100600 TS-13090 TS-16010 TS-130250 |
Laser power | 60W 80W 100W 110W 130W 150W Sealed CO2 laser glass tube |
Working area (mm) | 600*400 1000*600 1300*900 1600*3000 1300*2500 1400*1000 1800*1000 |
Cutting speed | ≤500mm/s |
Engraving speed | ≤1000 mm |
Accuracy of repeated orientation | ≤±0.025mm |
Cooling way | Circulation water cooling |
Support files format | PLT BMP DXF DST ,etc |
Support software | Auto Cad,CorelDraw,Photoshop,Illustrator etc. |
Connection way | USB offline/online |
Motor | Leisai Stepper motor |
Working power | 220v/50HZ 110V/60HZ |
Standard Configuration for co2 laser cutting machine:
1) Working Area:1600*1000mm,this can be customized as your requirements
2) Laser power:60w 80w 100w 130W 150w - you can choose RECI laser tube,working hours:8000-10000 hours

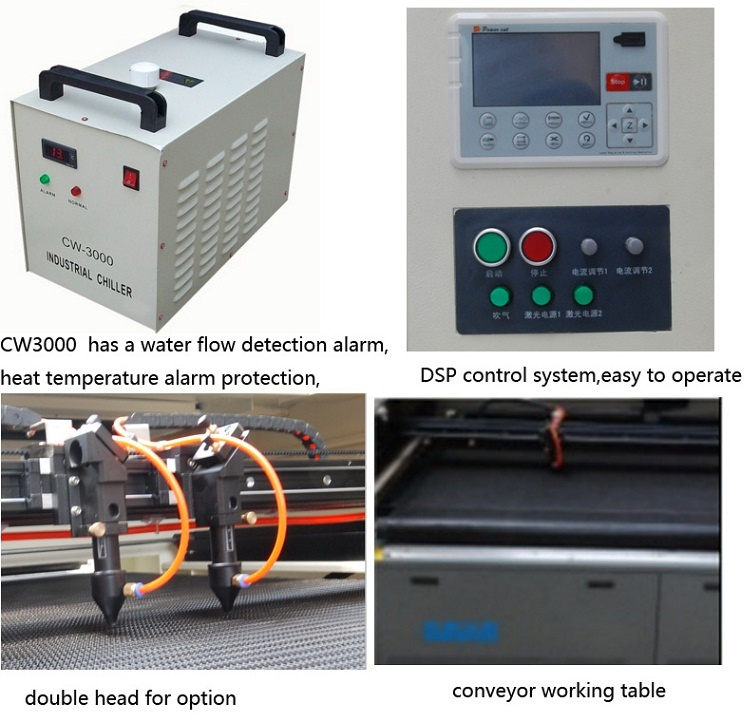

3) DSP control system - with only a few buttons very easy to use
4) Knife worktable - suitable for hard materials such as wood,acrylic,you also can choose honey comb table use for soft materials such as leather,fabric etc.
5) High resolution laser head.-good quality and long lifetime
6) Water pump-used for cooling laser tube to protect it has long life.
7) Air pump/Compressor.-cooling the laser head to avoid the materials being burned.
8) Exhaust fan - Blow away the smoke dust during product,we used domestic high quality exhuast fan
9) USB cable-To connect the machine and computer.
10) Tool box-Included the CD,User manual,and some wrenches for your work.

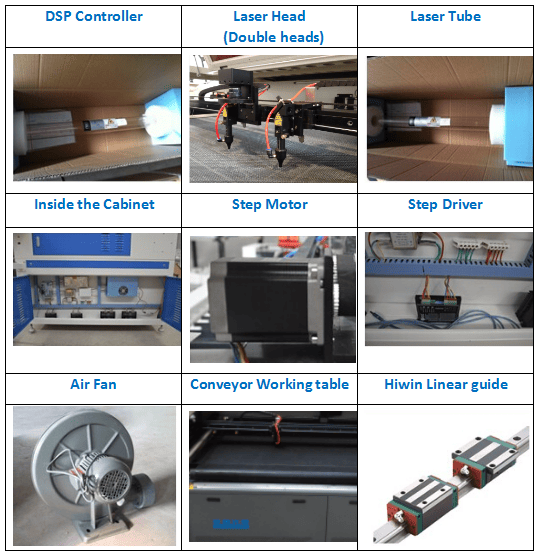

| Part description | Brand | Characteristic |
| Linear guide | Taiwan Hiwin | 1)High accuracy for positioning 2) Less abrasion and maintain accuracy for a long time; 3) for high speed movement and significantly reduce the required horsepower of drive machine; 4) can withstand the load from vertical and horizontal directions; 5) Easy assembling and with interchangeability; 6) simple lubrication structure |
| Transmission belt | Shanghai Fulong | Low noise , high transmission accuracy |
| Laser tube | Weiju | Domestic famous good brand with long lifespan |
| reflector Mirror and focus lens | America IIV(Diameter is 30mm) | long life span,precise focusing |
| Water Chiller | TEYU | alarm protection function,constant running |
| Ball Screw Rod | Taiwan TBI | enhance position accuracy |
| bearing | Japan NSK brand | high precision |
Characteristic:
--it adopted knife working table, it have good processing results for soft and thin flexible materials.
--it's equipped with single or double head,, it can make cutting speed more fast and high utilization rate of fabric materials through multi head intelligent typesetting software.
--it's optional for various laser power , it can make cutting process for hard materials.
Applications for laser cutting machine:
1.Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
2.Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry

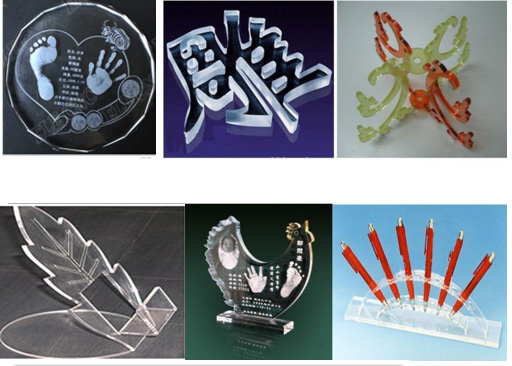

Samples

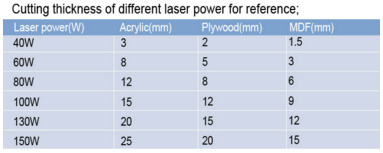

Technical Parameters for laser engraving machine :
