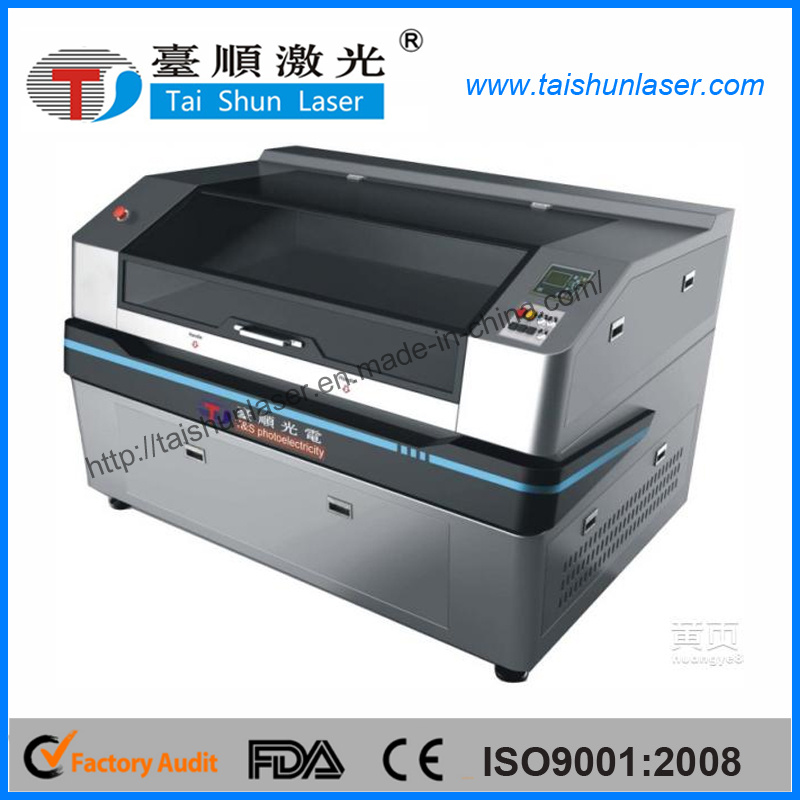

Multi-Layer Car Airbag 80watt CO2 Laser Cutting Machine
| Price: |
US $ 4000-5500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
TSHY-160100LD |
| Laser Type: |
CO2 Glass Tube |
| Application Area: |
Automotive, Plush, Home Textiles, Garments |
| Application Material: |
Fabric, Rubber Acrylic Nonwoven Crystal, Leather |
| Power Supply: |
AC220V+-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
1600mmx1000mm |
| Output Power: |
80W |
| Cutting Speed: |
Adjustable |
| Working Table: |
Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |
Product Description
Product parameter:| Model | TSHY-160100LD | Option |
| Working Area | 1600mmx1000mm | According to Demands |
| Laser Power | 40w/50w/60w/80w/100w/130w/150w |
| Laser Type | CO2 Sealed Laser Tube , 10.6μm |
| Cooling Type | Water Cooling |
| Engraving Speed | 0-40000mm/min |
| Cutting Speed | 0-10000mm/min |
| Laser Output Control | 0-100% Set by Software |
| Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm |
| Locating Accuracy | ≤±0.01mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc |
| Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
| Color Separation | Yes |
| Drive System | High-precision 3-phase Stepper Motor |
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe |
| Power Supply | AC110V/220V+10%,50HZ/60HZ |
| Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
| Option | Water chiller,CCD or Red Dot Position System |
|

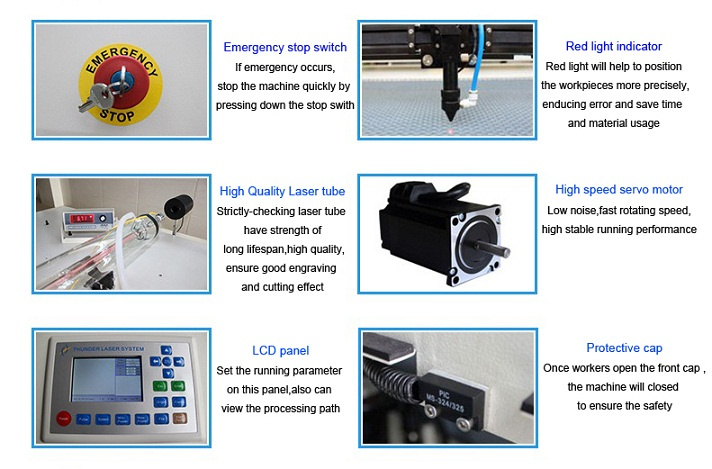

Feature:1.Humanized and most modernized design of appearance reflects caring idea of Tai Shun Design departme2.Advanced DSP control system and special motion control ship make the machines cut curve continuously and rapidly,the selection function of the shortest path makes efficiency higher.3.All machined are configurated with U-disk offline control system,so it is more simple and easier to operate.4.The red-light positioning device can indicate process site of laser head to avoid trouble of manual position. 5 Strong steel frame structure body makes the engraving process stable with no moving or deformation6,Conveyor working table with negative pressure adsorption function can cut long size fabric continuously and to impress you, thus the fabrics still kept flatly and smoothly.Close up
Sample show:
Here is click into our video for airbag cutting:
https://taishunjiguang.1688.com/?spm=a261y.7663282.0.0.mDB2b2http://v.youku.com/v_show/id_XNTQ5NTc0NTI4.html?from=s1.8-1-1.2
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.

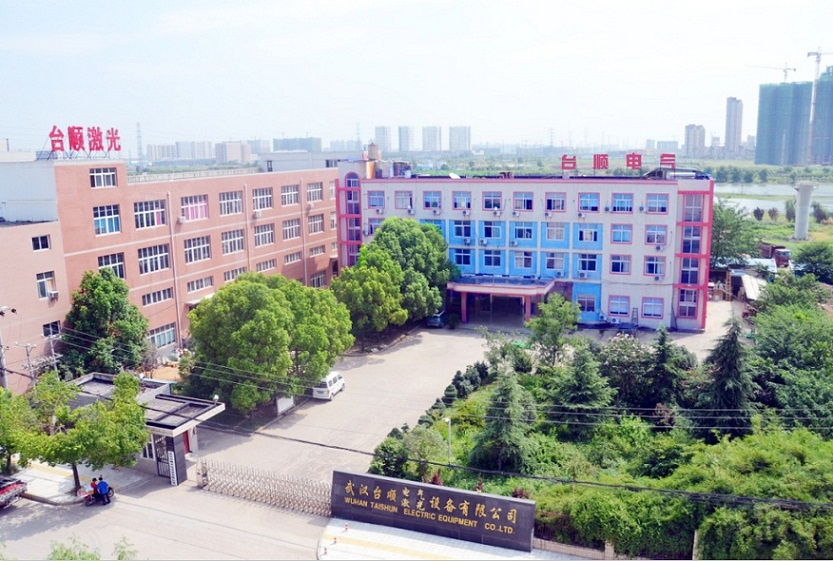

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
