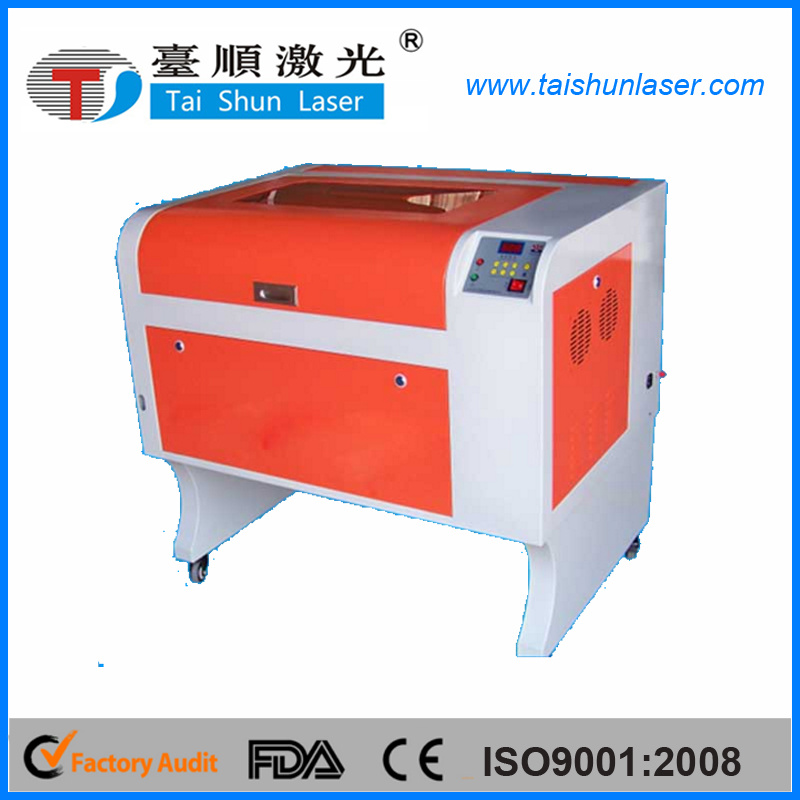

Product Specifications
| Prod Model: |
TSE50WC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Tse50wc |
| Laser Power: |
50W |
| Max.Marking Area: |
600*400mm |
| Cooling Way: |
Water Cooling |
| Certification: |
Ce SGS FDA,BV,CCC |
| CNC Or Not: |
Yes |
| Graphic Format Supported: |
Ai, BMP, Dwg, Dxf, Dxp |
| After-Sales Service Provided: |
Engineers Available to Service |
| Guarantee: |
One Year |
Product Description
>>>Technical parameter| Total power | <300W |
| Laser power | 50W |
| Laser type | CO2 |
| Power supply | AC 220V/110V |
| Working area | 400*600 mm |
| Engraving depth | 0-10 mm |
| Cutting depth | 0-5 mm |
| Engraving speed | 0-600mm/s |
| Cutting speed | 0-60 mm/s |
| Lifting platform | 0-300 mm Honeycomb Screen |
| Locating precision | <0.01 mm |
| Min shaping character | Character: 2*2mm, Letter: 1*1mm |
| Working temperature | 5ºC-45ºC |
| Working humidity | 5%-95% |
| Resolution ratio | ≤2000dpi |
| Control configuration | DSP |
| Data transfer interface | USB 2.0 (offline) |
| System environment | Windows XP / Win 7 / Win 8 |
| Cooling | Water Cooling and protection system |
| Graphic Format Supported | The Files which CorelDraw & WinsealXP can identify |
| (BMP, JPEG, PLT, CDR, AI, ) TIFF, PCX, DIB, TIF |
| Compatible software | CorelDraw, WinsealXP |
| Color separation | NO |
| Sloping engraving | NO |
| Cuts off the water supply the protection | Yes |
| Outside Dimensions | 1020*700*600 mm |
| Net Weight | 75KG |
| Packing | Wooden box |
| Package Dimension | 1200*940*870 mm |
| Package Weight | 197 kg |
>>> Standard accessories (1) Laser Engraving software Package (English Version)
(2) User Manual (English Version)
(3) Water Pump and Water tank
(4) Air exhaust fan
(5) Air Pump
(6) Communication cable and USB cable
(7) 3 Reflect lens (installed in the machine)
(8) 1 Focus lens(installed in the machine)
(9) 1 Laser tube(installed in the machine)
>>>Feature1,Adopting advanced DSP digital control system and international standard laser power supply, in integrated framework style, that make the working in high stability, and high-speed.
2,Transmitting files directly from Coredraw, AutoCAD. Usd2.0 interface output can support off-line working.
3,The optimized can decent new design ensure the processing speed up to 600mm/s with low noise.
4,Big power and high stability laser, equipping with imported lens and mirror machine the machines in a long life-span, one step cutting can reach 25mm thickness on acrylic.
5,Imported linear rail and high quality belt for transmission, strong body structure, ensure the product in high quality and stability cutting.

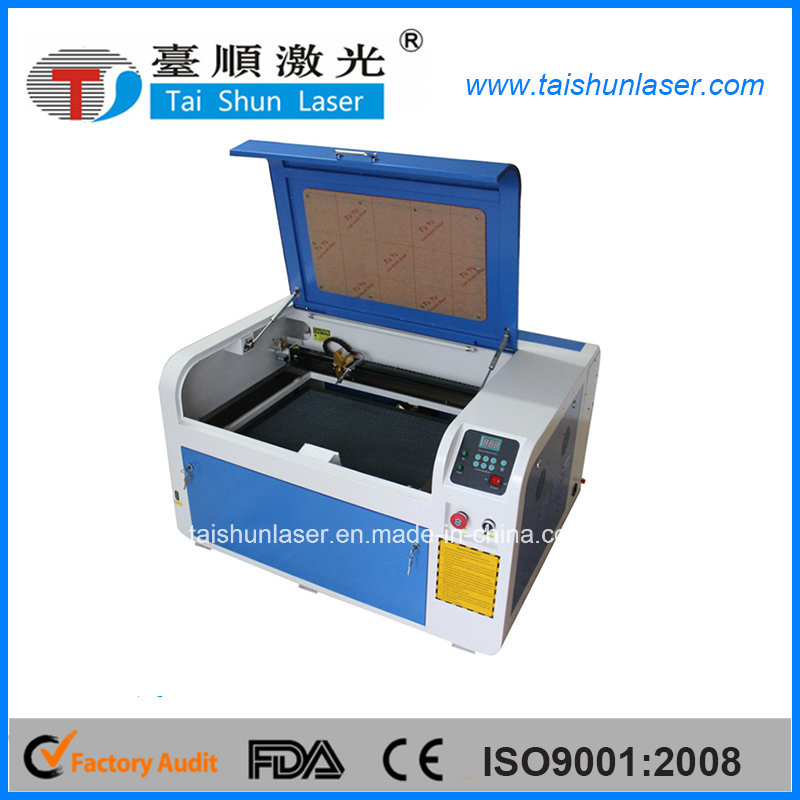

6,Automatic up and down table, rotary device ,red dot position and vacuum system etc. are optional.>>>Open type

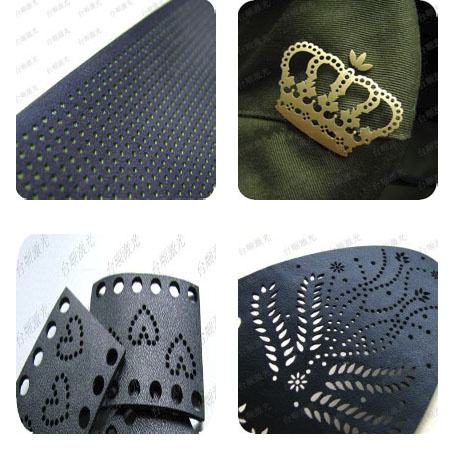

>>>Samples
>>>Our machine series: CO2 Laser Engraving and Cutting Machine for most of the non-metal materials. Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm carbon Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel ) >>>Demo videohttps://www.youtube.com/watch?v=xs_Im20mv6g carpet cuttinghttps://www.youtube.com/watch?v=GbkX77rZW_Q labels engravinghttps://www.youtube.com/watch?v=DOUXxajO3_w insole engraving https://www.youtube.com/watch?v=hPIgjdvG_GY fiber laser cutting metalhttps://www.youtube.com/watch?v=KJ4UGkaCjkk fiber laser cutting machinehttps://youtu.be/5PgXtVNajn4 large format fabric cutting https://youtu.be/L6Rz6L3UaXY embroidery applique cuttinghttps://youtu.be/uy6NRT4HsrU MDF laser cutting
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
