Product Specifications
| Prod Model: |
TSE50WC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Tse50wc |
| Laser Power: |
50W |
| Max.Marking Area: |
600*400mm |
| Cooling Way: |
Water Cooling |
| CNC Or Not: |
Yes |
| Graphic Format Supported: |
Ai, BMP, Dwg, Dxf, Dxp |
| After-Sales Service Provided: |
Engineers Available to Service |
| Guarantee: |
One Year |
| Condition: |
New |
Product Description
>>>Main feature
1. Adjustable speed and power, smooth and precise engraving and cutting
2. USB interface
3. Air assist, remove heat and combustible gases from the cutting surface.
18W air pump, flow can be 38L/min.
4. Embedded exhaust fan, easier intall, safer transport.
40W exhaust fan, flow can be 5.27m³\min.
5. Rotary axis, engrave any cylindrical object.
6. Cellular platform, leave no chippings on working area.
7. Intuitive control panel, set speed, power and more controls directly from the laser.
8. Water cooling and protection system.
15W water pump, flow can be 7.5L/h.
9. Laser position.
10. Emergency stop button.
11. Larger size, 400*600mm working area.
12. Lifting platform is electric control.
13. Drag - and - chain transmission line
14. Laser focal length: 5cm
15. A limit swith let it only work when the cover is closed.
>>>Technical parameter
| Total power | <300W |
| Laser power | 50W |
| Laser type | CO2 |
| Power supply | AC 220V/110V |
| Working area | 400*600 mm |
| Engraving depth | 0-10 mm |
| Cutting depth | 0-5 mm |
| Engraving speed | 0-600mm/s |
| Cutting speed | 0-60 mm/s |
| Lifting platform | 0-300 mm Honeycomb Screen |
| Locating precision | <0.01 mm |
| Min shaping character | Character: 2*2mm, Letter: 1*1mm |
| Working temperature | 5ºC-45ºC |
| Working humidity | 5%-95% |
| Resolution ratio | ≤2000dpi |
| Control configuration | DSP |
| Data transfer interface | USB 2.0 (offline) |
| System environment | Windows XP / Win 7 / Win 8 |
| Cooling | Water Cooling and protection system |
| Graphic Format Supported | The Files which CorelDraw & WinsealXP can identify |
| (BMP, JPEG, PLT, CDR, AI, ) TIFF, PCX, DIB, TIF |
| Compatible software | CorelDraw, WinsealXP |
| Color separation | NO |
| Sloping engraving | NO |
| Cuts off the water supply the protection | Yes |
| Outside Dimensions | 1020*700*600 mm |
| Net Weight | 75KG |
| Packing | Wooden box |
| Package Dimension | 1200*940*870 mm |
| Package Weight | 197 kg |
>>> Standard accessories
(1)Laser Engraving software Package (English Version)
(2) User Manual (English Version)
(3) Water Pump and Water tank
(4) Air exhaust fan
(5) Air Pump
(6) Communication cable and USB cable
(7) 3 Reflect lens (installed in the machine)
(8) 1 Focus lens(installed in the machine)
(9) 1 Laser tube(installed in the machine)
(10) Micro Dog

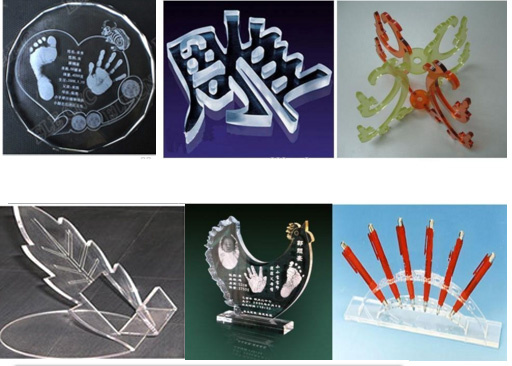

>>>Applications
It is suitable for Plexiglas, wood, density board, card, 2-color board, leather, glass, compose diamond,
Horn, plastic, the nonmetal materials such as press used rubber plate and so on.
(1). Mainly used for engraving of non-metal materials: Such as rubber, wood plexiglass atomic materials,
Crystal, bowlder, etc...
(2). Applying for processing of small-size artistic products. For the engraving of patterns and characters
Engraved are real to life and pleasing to the eye.
(3). For the engraving of titles, types, signs, patterns etc. On electronic parts, which will last for long time.
