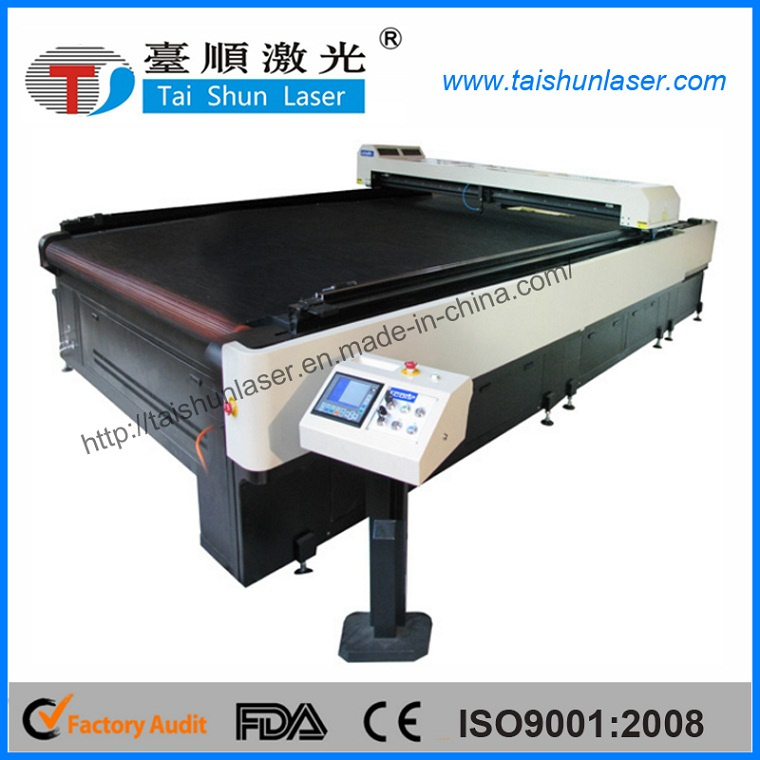

Large Format Flatbed CO2 Laser Cutting Fabric Machine
| Price: |
US $ 5000-6500/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Specifications
| Prod Model: |
TSHY180100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 |
| Application Area: |
Car Carpet, Plush Toys, Home Textiles, Garments |
| Application Material: |
Fabric, Paper Acrylic Crystal, Non-Woven, Leather |
| Power Supply: |
AC220V+-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
2100mmx3000mm |
| Output Power: |
60W, 80W, 100W, 150W, 180W |
| Cutting Speed: |
Adjustable |
| Working Table: |
Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |
Product Description
Product parameter| Laser type | Glass CO2 laser tube |
| Output power | 60W, 80W, 100W, 150W, 180W for your choice |
| Working area | 3200mmx2100mm |
| Working table | Conveyor working table |
| Working speed | Adjustable |
| Position accuracy | plus minus 0.1mm |
| CCD single screen view range | 120x80mm |
| Movement system | stepping motor system |
| Cooling system | Water cooling |
| Electrical Voltage | AC220V+-5% 50/60hz |
| Supported file format | AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF |
| Standard accessories | 1 set 550W exhuast fans |
| Optional accessories | 100w,130w,150w laser tube,auto feeding system,water chiller |
| Connect interface | USB |
Feature:
1, It's customized for various types fabric materials'cutting for embroidery,sportswear,printing insoles,shoes,etc
2, It's good to cut any shapes without fringe and sewing automatically.
3,Converyor working table with negative pressure adsorption function can cut long size fabric continuously and to impress you, thus the fabrics still kept flatly and smoothly.
4,The following-up fume extractor system is going with laser head to save power consumption and good fume chasing effect.
5, LCP control system support online and offline data transferring.
6, Built up a data base in computer to save space room for the cutting workshop
Samples

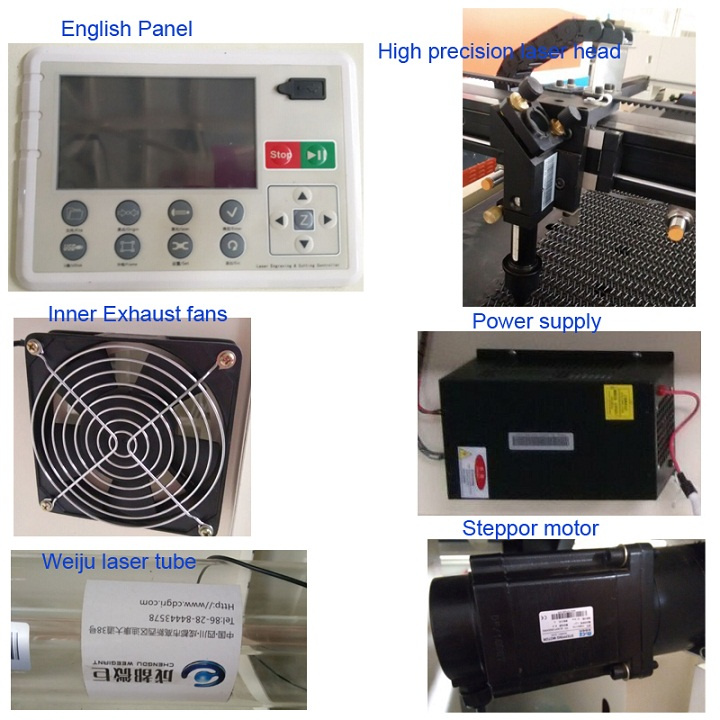

Configuration
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Our machine series:
CO2 Laser Engraving and Cutting Machine for most of the non-metal materials.
Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.
Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm Mild Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )
Video channelhttp://v.youku.com/v_show/id_XNTQ5NTc0NTI4.html laser cutting airbag applicationhttp://v.youku.com/v_show/id_XNTU2Nzc2NTky.html?from=y1.2-1-106.3.1-2.1-1-1-0-0 laser cutting carpet applicationhttp://v.youku.com/v_show/id_XNTU2ODEwMDE2.html?from=s1.8-1-1.2 laser cutting printing rug applicationhttp://v.youku.com/v_show/id_XNTU2NzA1MjQ4.html?from=y1.2-1-103.3.2-2.1-1-1-1-0 laser cutting foot pad for the automotive industryhttp://v.youku.com/v_show/id_XNTQ5NDk3MzI4.html?from=y1.2-1-103.3.5-2.1-1-1-4-0 laser engraving paper pattern machinehttp://v.youku.com/v_show/id_XNTkyNDU1NDQw.html?from=s1.8-1-1.2 laser cutting garment fabric applicationhttp://v.youku.com/v_show/id_XNjIxNjY0NzY0.html?from=s1.8-1-1.2 laser cutting slipper plush applicationhttp://v.youku.com/v_show/id_XNTU2NzY1MjU2.html?from=s1.8-1-1.2 laser cutting precious leather applicationhttp://v.youku.com/v_show/id_XNTU3NzA0Njg4.html?from=s1.8-1-1.2 laser engraving hallowing leather applicationhttp://v.youku.com/v_show/id_XNTU2ODA1Nzg4.html?from=s1.8-1-1.2 laser cutting diving fabric applicationhttp://v.youku.com/v_show/id_XNTM3NDI2MjE2.html?from=s1.8-1-1.2 laser punching holes applicationhttp://v.youku.com/v_show/id_XNTU3NjU0MTcy.html?from=s1.8-1-1.2 laser punching holes for leather material http://v.youku.com/v_show/id_XNTU2Nzg0MTky.html?from=s1.8-1-1.2 laser cutting EVA applicationhttp://v.youku.com/v_show/id_XNTU2Nzk3OTM2.html?from=s1.8-1-1.2 double head cutting insole applicationhttp://v.youku.com/v_show/id_XNTUxMDk3MTIw.html?from=s1.8-1-1.2 four head cutting plush toy material http://v.youku.com/v_show/id_XNTU3NjkwMTg4.html?from=s1.8-1-1.2 Laser cutting multi-layer Chemical fiber cloth application

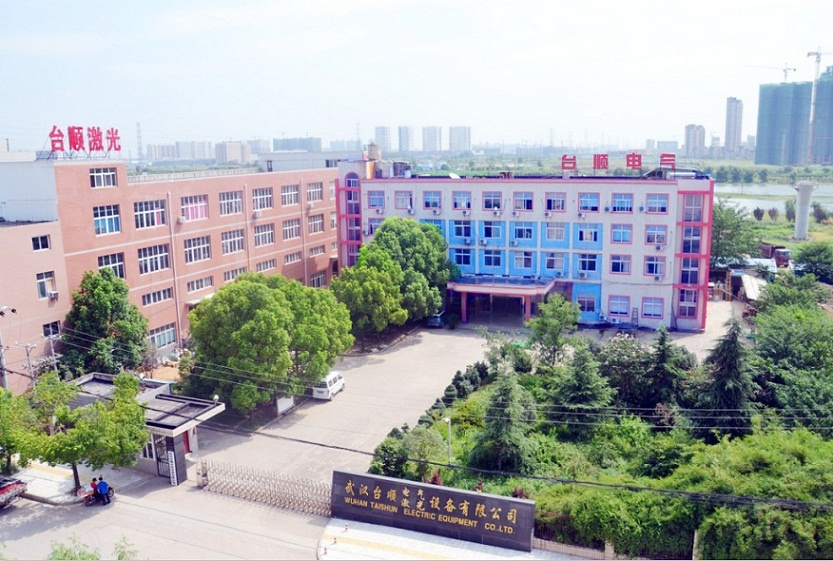

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
