Jinan Professional Hobby Mini CNC CO2 Laser Engraving Cutting Machine
| Price: |
US $ 1900-3500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
FMJ6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Hobby Mini CNC CO2 Laser Engraving Cutting Machine |
| Drive Type: |
Stepper Drive |
| Laser Power: |
40W 60W 80W 100W 130W 150W |
| Controlling System: |
Rd or Leetro Controlling System |
| Warranty: |
1 Year |
| Rail Guide: |
Taiwan Hiwin Rail Guide |
| Transmission: |
Fulong Belt Transmission |
| Driver System: |
Leadshine Motor |
| Lens And Mirrors: |
Imported From Singapore |
| Color: |
Optional |
Product Description

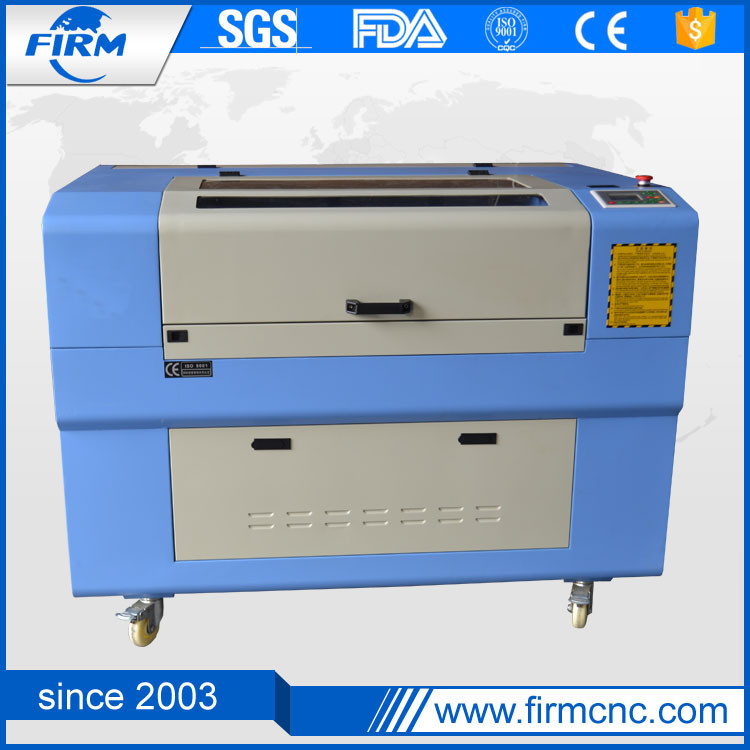

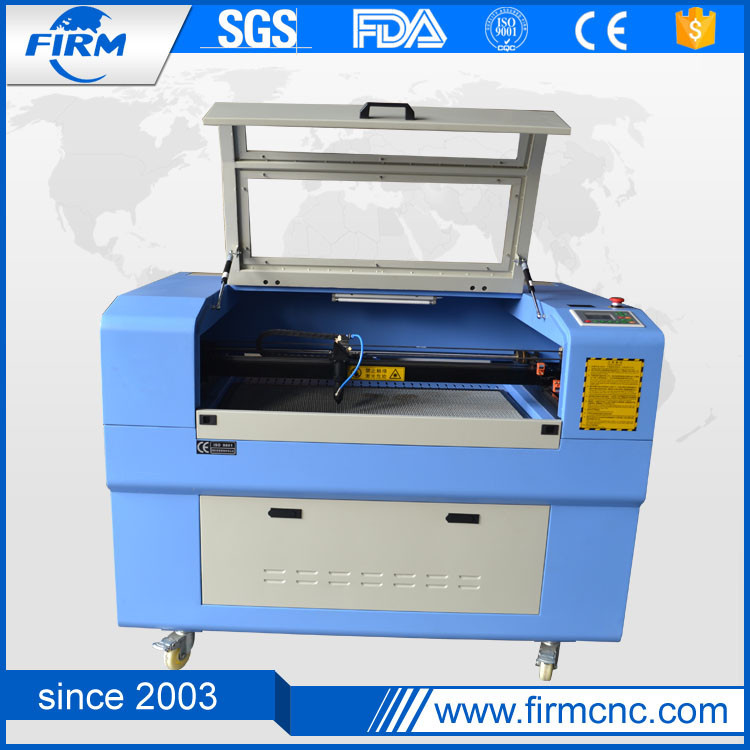

Jinan Professional Hobby Mini CNC CO2 Laser Engraving Cutting Machine
Application Materials :
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,
glass Acrylic, ABS Plastic, Carbon Composite, Cardboard, Cork, Mylar, Plastic and other nonmetal
materials.
Application industry :
Advertisement, arts and crafts, leather, toys, garments, model , building upholster, packaging and paper
industry, Vector Cutting, computerized embroidery and clipping, Raster Engraving, Signmaking, etc.

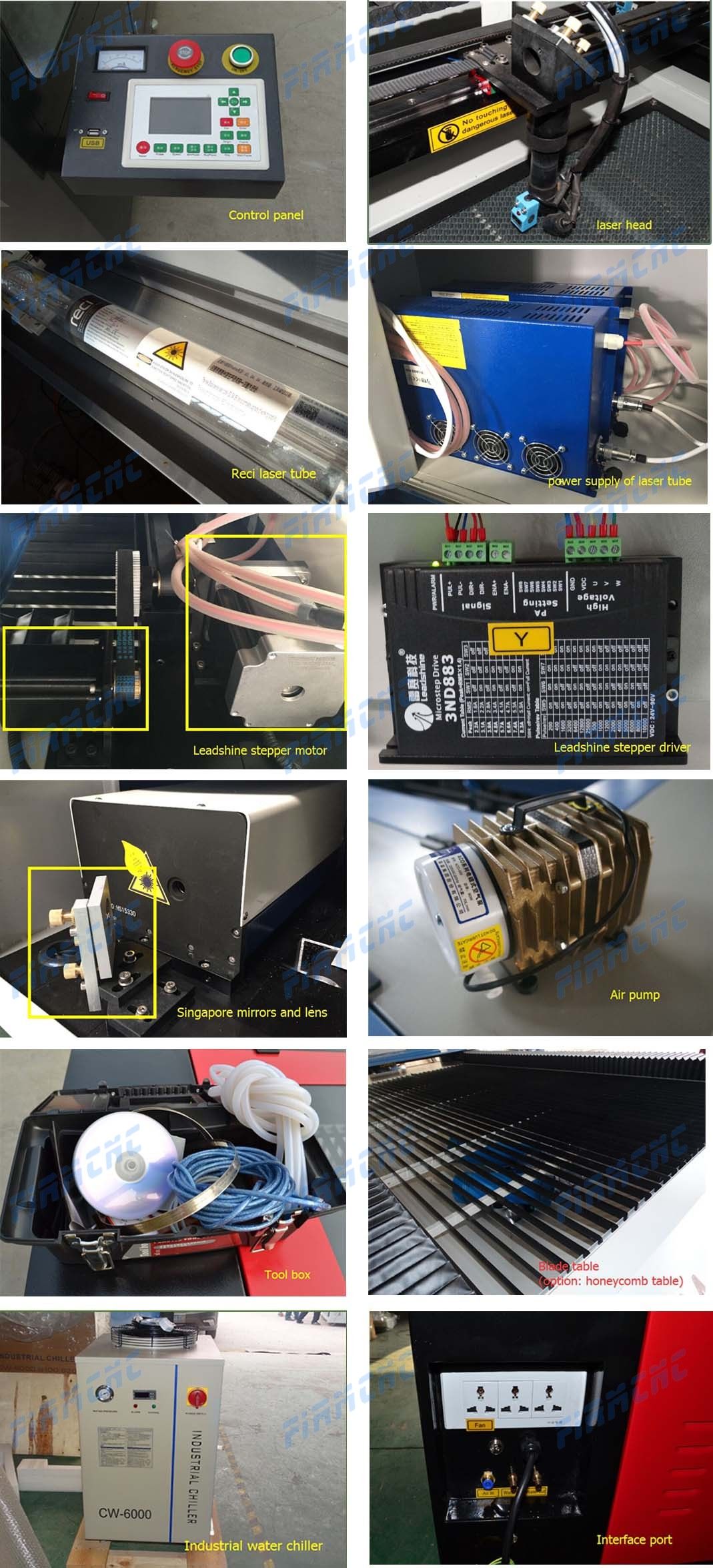

Detailed configuration:
A. Leadeshine stepper motor or servo motor
B. RD controlling system or Leetro controlling system
C. Sanghai Fulong belt transmission
D. Dual transmission of USB2.0
E. Chines,English, German LCD, Humanity button panels
F. Reci laser tube 80w 100w 130w 150w 180w or smaller and bigger power
G. Optical system uses laser Singapore imports all lenses
H. High strength stainless Rail cellular integration backplane
I. Chassis integration structure
J. Support U-download data
Standard accessories:
1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans with Tube ducts (install inside machine)
3) 1×Water pump/Industrial chiller(cool the lase tube)
4) 1×Water protection(make sure the water cycle is normal)
5) 1×USB Cable (connecting PC and laser)
6) 1×DVD (including software, user manual, guiding videos etc)
7) 2×Power cables
8) 1×Tool box
Product Feature
1).The "front" and "back" of our laser machine can be open, suitable for super-length material process.
2).Exclusive no water warning and automatic protection system, to protect the working life of laser tube
effectively. The power control system has exclusive automatic protection equipment to ensure the stability
and safety of the machine to the best.
3).LCD control panel in English, convenience of operation control.
4).Import liner bearing with high engraving precision
5).offline control system which can not only work without computer, but also connect to U disk, USB
communication
6).Imported metal mirrors, with good ability of reflection and focusing, long working life.
7).Red dot position system realizes the exact position without laser.
8).Auto Focus technology, realize "easy focus & high efficiency" in real, not only a word.
Machine technical Paremeters :| Control system: | RD or Leetro controlling system |
| Laser type: | Sealed CO2 glass laser tube |
| Working area: | 600*400mm |
| Work table | Honeycomb table or blade table |
| Laser power: | 40w/60w/80w/100w/130w/150w/180w/260w |
| Pass-thru doors: | Allow to cut extremely long materials(max thickness 40mm) |
| Interface: | USB connection ( Work in Windows XP, 2000,Vista,7) |
| Memory: | 64Mb Buffer Memory |
| Driver system: | Stepper motor |
| Auxiliary equipments: | Exhaust-fan, air-exhaust pipe |
| Laser Tube life hours: | 10000 Hours |
| Repeating precision: | ±0.05mm |
| Moving system: | CNC controlling units |
| Cooling mode: | Water-cooling and protection system |
| Max speed: | 600mm/s for engraving, 300mm/s for cutting |
| Working voltage: | AC110/220±10% 50/60Hz |
| Whole power: | <1250W |
| Operating temperature: | 0-45°C(32° - 113° F) |
| Operating humidity: | 5%-95% |
| Controlling software: | Original sunylaser software |
| Graphic format supported: | BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,
GIF,MNG, TIF,TGA,PCX,JP2,
JPC,PGX,RAS,PNM,SKA,RAW etc |
| Compatible software: | Auto CAD, CoreIDraw X2/X3/X4, photoshop etc |
| Resolution: | 4000DPI |
| Machine dimension: | 1020*700*1070mm |
| Packing dimension: | 1400*820*1360mm |
| Net weight: | 120kg |
| Gross weight: | 190kg |
| Packing: | Plywood case |
Service
# One years warranty for the machine
# Replacing all parts for free during warranty
# If necessary, provide door to door service to your country
# 24 hours online service
# Replying your email and offer technical service within 24 hours.

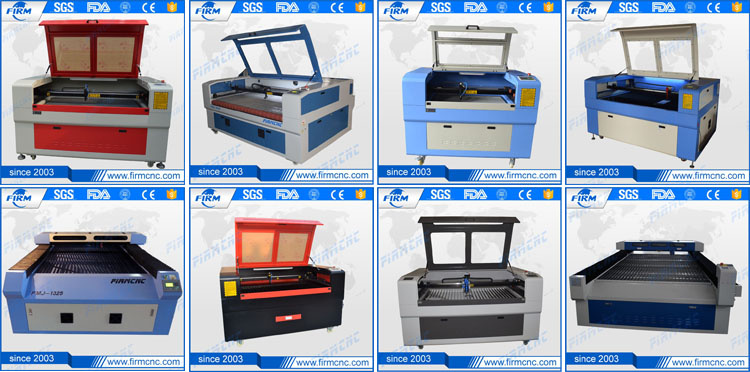

Other type laser machines for your reference
FAQ
1.How long about the machine's guarantee?
2 years quality warranty and whole lifetime technical support
2.How can we install the machine?
All installation and operation user manuals and videos will be provided to you.
3.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal are available.
4.Do you Arrange Shipment For The Machines?
Yes, we can provide sea shipping and air shipping for our customers.
Please tell us your working, we will recommend you suitable model.
JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330 Fax : 0086-0531-69986330
Website: http://firmcnc.en.alibaba.com/, http://firmcnc.en.made-in-china.com
www.firmcnc.com
Cell phone: +86-13954117091
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
