High Precision Advertising Carving Engraving Cutting Equipment
| Price: |
US $ 2500/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
FM6090T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
Nc-Studio or Choose DSP Controller |
| Motor Type: |
Stepper/Servo |
| Transmit Way: |
Taiwan Imported Ball Screw |
| Working Voltage: |
AC380V/50Hz AV220/50Hz |
| Working Software: |
Windows98/2000/XP |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
CE |
Product Description

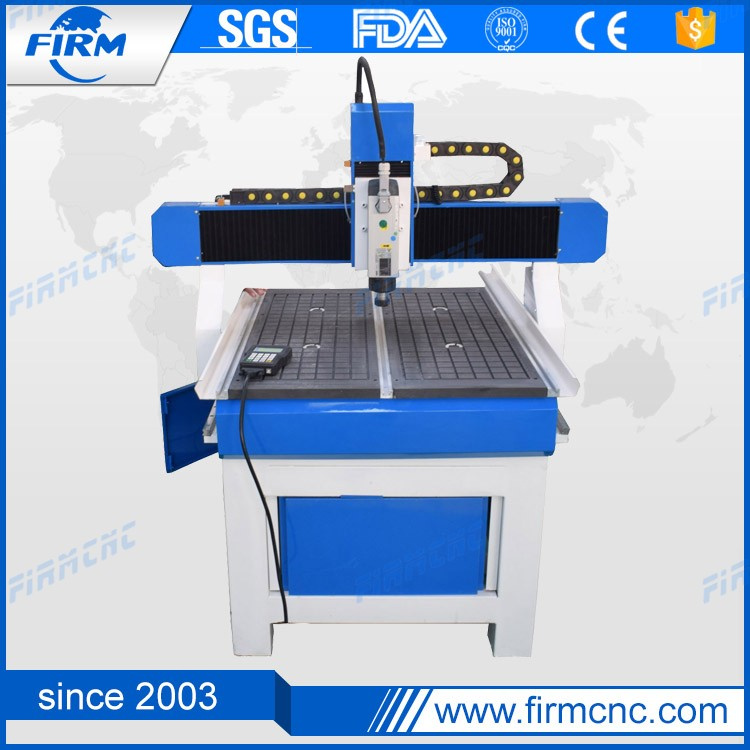

High Precision Advertising Carving Engraving Cutting Equipment
1. Advantage of Machine
1) Water cooling spindle, with high precision, long life time, steady working, easy to start up.
2) Taiwan Hiwin linear square guide rail, self-lubricating sliding block. It ensures equal
force in all directions and accuracy and strength of the machine.
3) Taiwan TBI ball Screw transmit, ensured high accuracy and stable when working.
4) Stepper motors and Drivers, 3 sets in total, with big torque, ensure machine stable.
5) DSP controller system with USB interface,working without connecting with computer
during working and easy to control.
2. Descriptions of Machine| Description | Parameter |
| X,Y,Z Working Area | 600mmx900mmx100mm |
| Table Size | 750mm×1250mm |
| Table Surface | T-slot Table |
| Spindle Power | 1.5KW water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Motors | Stepper motors |
| Driver | Leadshine or YAKO driver |
| Transmission | X,Y,Z Axis: Taiwan TBI ball Screw |
| Machine Guide Rails | Taiwan Hiwin Linear square guide rail |
| Inverter | Fuling or Delta Inverter |
| Operating System | DSP control system |
| Soft Limit switch | Japan Omron limit |
| AC contactor | France Schneider |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.02mm |
| Max. Rapid Travel Rate | 12000mm/min |
| Max. Working Speed | 8000mm/min |
| Max. Power Consumption | 3KW(Without Spindle) |
| Working Voltage | AC220V/60Hz |
| Command Language | G Code |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER20 |
| Software Compatibility | Artcam OR Type3 Software |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Packing Size | 1710 x 1250 x 1585mm |
| N.W. | 200KG |
| G.W. | 250KG |
| Optional Parts | Spindle: Air cooling spindle can be choose |
|
Motor and Driver: Servo system
Japan: Yaskawa / Panasonic servo
China: Taiwan Delta servo |
| Control system: NC Studio/Syntec/mach3 |
| Dust Collector |
| Rotary System |
| Mist-cooling System |

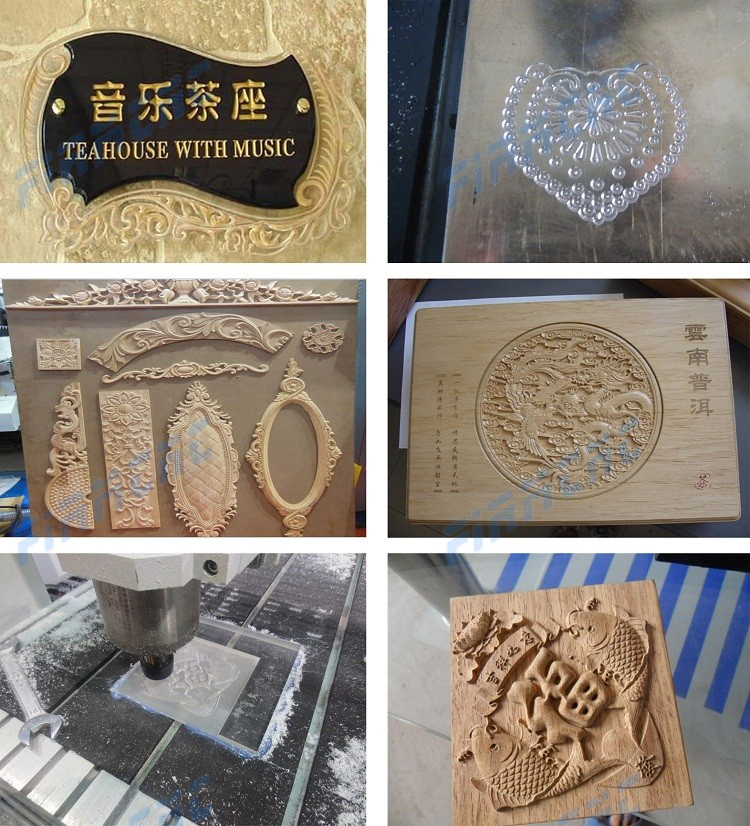

3. Applicable materials of Machine
Materials |
Cut |
Engrave |
Acrylic/Plexiglas/Perspex |
Yes |
Yes |
Organic board/Matte board/Double color plate |
Yes |
Yes |
Wood/Bamboo/Veneer/MDF |
Yes |
Yes |
Leather/Pig leather/Cow Leather/Sheep leather |
Yes |
Yes |
Fabric/Cloth/Textile |
Yes |
Yes |
Wool Felt |
Yes |
Yes |
Paper/Cardboard/Chipboard press board |
Yes |
Yes |
Plastic ABS/PVC/rubber/plastic |
Yes |
Yes |
Ceramic/Tile/Marble/Stone/Granite/Tombstone |
No |
Yes |
Fiber glass crystal/Glass |
No |
Yes |
Others non-metal materials |
|
Yes |
4. How to Order Our Machine?
Before we can recommend you the best suitable machine, please kindly tell us:
1) What materials will you work on?
2) What is your Max.size of your processing materials? ( Length & Width )
3) Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4) Does your materials are cylinder? If YES, what's the Max. Diameter of it?
5) If it is possible, could you send us your product samples' picture? It will help us better to
understand.
5. Trade Items of Machine
MOQ |
1 set |
Package |
Standard Plywood Box |
Delivery Terms |
FOB, CIF, EXW, Door to Door ect. |
Delivery Time |
15 working days after receiving payment |
Payment Type |
T/T, Paypal, Western Union and others |
Supply Ability |
200 sets/month |
Port |
Qingdao, China. |

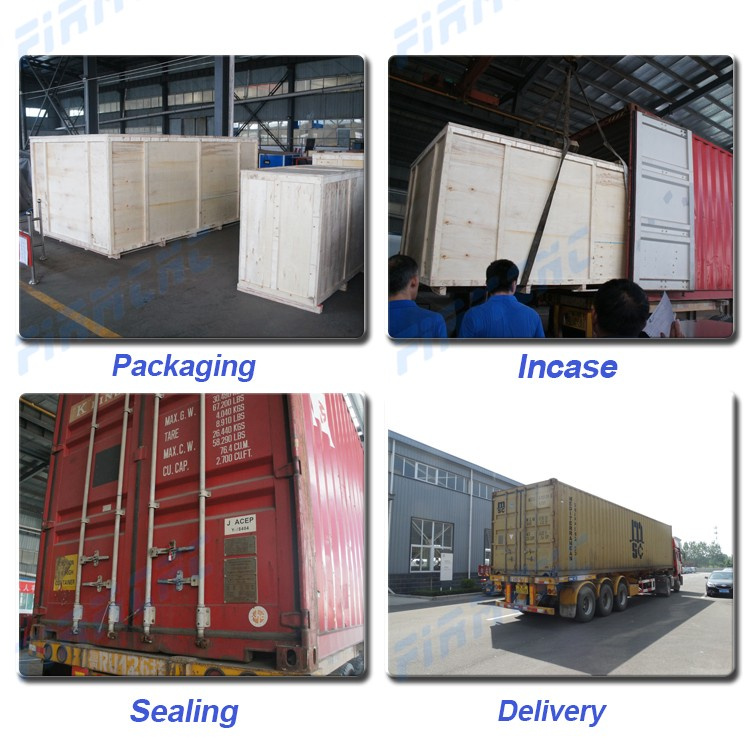

6. Packing&shipping:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
7. Guarantee & Service of Machine
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak
very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional damages, we would
provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug
and fix.
5) Could be remote control if needed.
