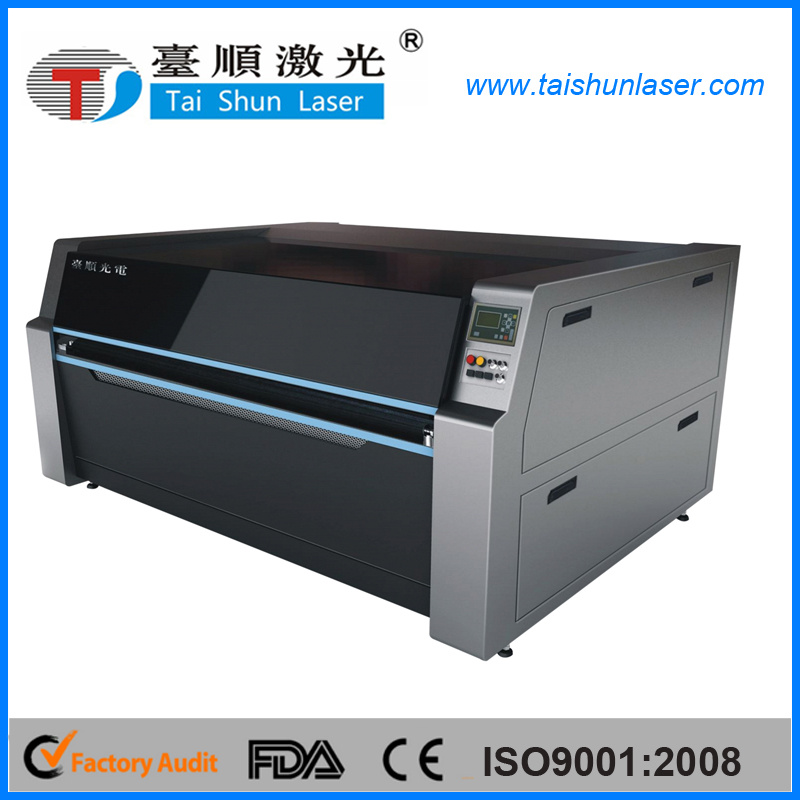

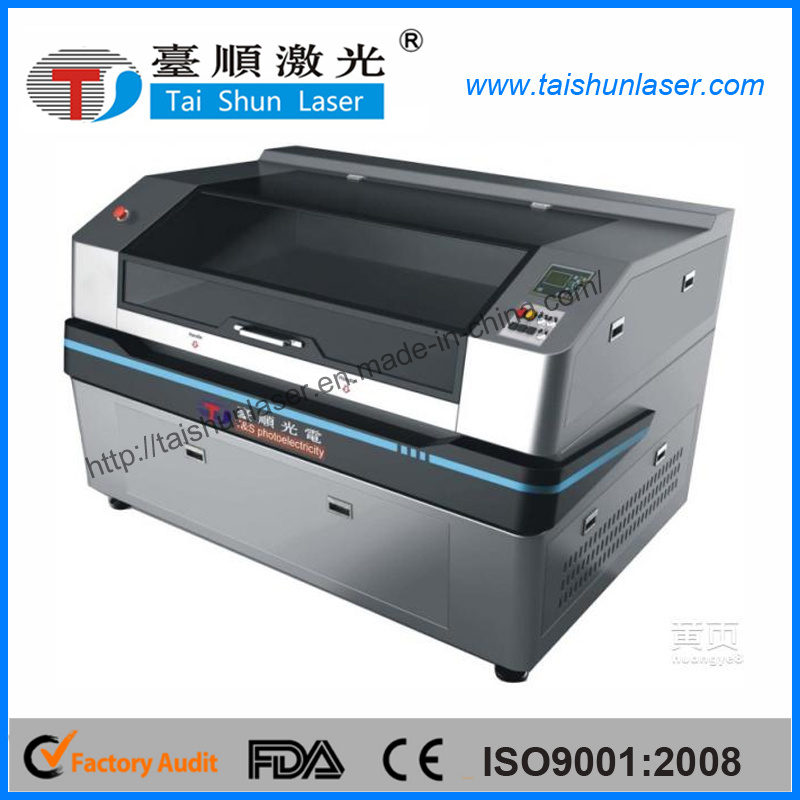

Garment Fabrics Application CO2 Laser Cutting Machine
| Price: |
US $ 3000-4500/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
TSHY-160100LD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 |
| Application Area: |
Ads, Car Accessories, Shoe, Textiles, Garments |
| Application Material: |
Fabric, Acrylic, Rubber, Wood Non-Woven, Leather |
| Power Supply: |
AC220V+-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
1600mmx1000mm |
| Output Power: |
60W |
| Cutting Speed: |
Adjustable |
| Working Table: |
Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |
Product Description
Main configuration:
Working table:1600mmx1000mm conveyor table
Laser Type:CO2 glass laser tube
Laser head:dual head to cut faster,single head to cut for large format,available to choose according to the production demand
Type setting software:intelligent Taishun typesetting software to achieve continuous feeding material
Water Chiller:standard industried water cooling system CW3000/make sure the laser tube work in ambient temperature.
Fume extractor: 2 sets 550W exhaust fan
Linear guide Rail:imported brand of Hiwin or others,
Main Body:| 1). 1× 60watts Co2 Laser tube (Installed in the machine). |
| 2). 3 × Reflecting Mirrors + 1× Focusing Lens (Installed in the machine). |
| 3). 1× 3000W Industrial Water Chiller |
| 4). 1× conveyor working table OR 1× Honeycomb table |
| 5). 1× Air Compressor + 2× Exhaust blower |
| 6). 1× USB cable (Connecting PC and Laser) |
| 7). 1× Manual (User-friendly User's Manual, Guiding video & Demo video.) |
| 8). 1× Power cable(we also stock 110V~240V power version and USA.UK.EU.AU plugs for the country all over the world) |
| 9). 1× Tool box |
Technic parameter:| Working Area | 1600*1000mm | | According to Demands |
| Laser Power | 40w/50w/60w/80w/100w/130w/150w |
| Laser Type | CO2 Sealed Laser Tube , 10.6μm |
| Cooling Type | Water Cooling |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-36000mm/min |
| Laser Output Control | 0-100% Set by Software |
| Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm |
| Highest Scanning Precision | 2500DPI |
| Locating Accuracy | ≤±0.01mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc |
| Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
| Color Separation | Yes |
| Drive System | High-precision 3-phase Stepper Motor |
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe |
| Power Supply | AC110V/220V+10%,50HZ/60HZ |
| Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
| Option | Water chiller Red Dot Position System |
|
Our strength:1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime.4. For water chiller, we use CW3000 CW5000 for single head, and CW5200 for double head laser machine.5. Good quality and unique design for red pointer and auto feeder6. All the machine have LCD offline control system + USB port.7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.8. the transforming belt adopt the famous FULONG brand, it have the metal inside, so it is fasten and not easy to loosen.9. All the power supply and laser device are kept on running for at least 24 hours testing to ensure it's in good performance.Sample
Application:
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Why choose us:
1.Supported by the government of Wuhan City
2.Has its own R & D center, update for technology
3.We are the manufacturer, our price are the most competitive!
4.With 20 years history on researching and producing all kinds of laser machines
5.Our company welcomes AGENTS all over the world
After sale services:
1.One year guarantee period for product quality.(man made damaged is negotiable).
2.Free design of fixtures as customers required.
3.Free training for machines installation and operation of the staffs.
4.Free samples marking of customer provided.Demo videohttps://www.youtube.com/watch?v=xs_Im20mv6g carpet cuttinghttps://www.youtube.com/watch?v=GbkX77rZW_Q labels engravinghttps://www.youtube.com/watch?v=DOUXxajO3_w insole engraving https://www.youtube.com/watch?v=hPIgjdvG_GY fiber laser cutting metalhttps://www.youtube.com/watch?v=KJ4UGkaCjkk fiber laser cutting machinehttps://youtu.be/5PgXtVNajn4 large format fabric cutting https://youtu.be/L6Rz6L3UaXY embroidery applique cuttinghttps://youtu.be/uy6NRT4HsrU MDF laser cutting

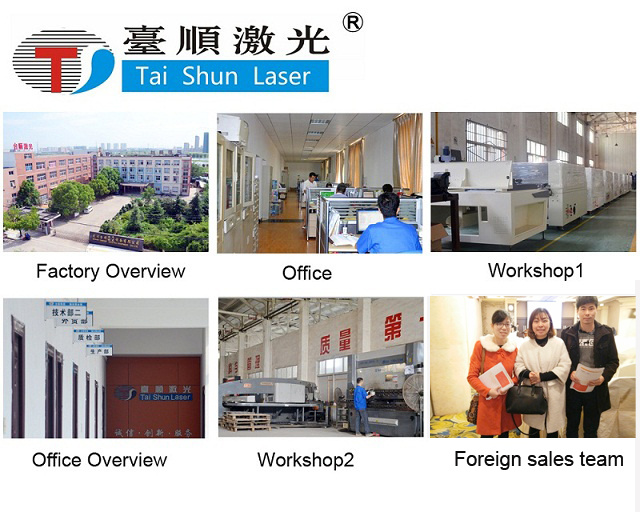

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.

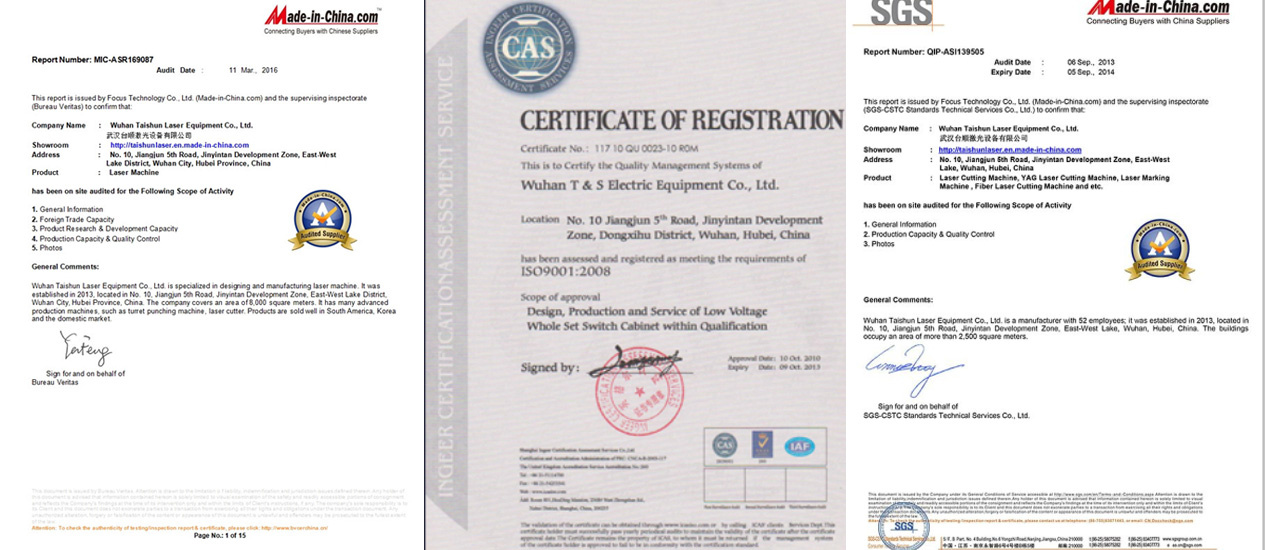

Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
