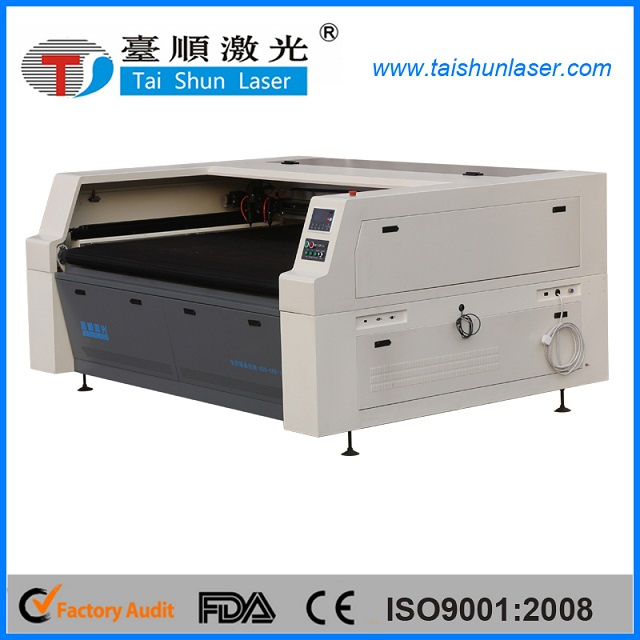

Garment Application Double Head Laser Cutting Machine

Garment Application Double Head Laser Cutting Machine
Price: US $ 4000-5500/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal

Product Specifications


Prod Model: TSHY-160100LD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Laser Type: CO2
Application Area: Car Accessories, Plush Toys, Home Textiles
Application Material: Fabric, Textile, MDF, Non-Woven, Leather
Power Supply: AC220V+-5%50Hz
Graphic Format Supported: Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp
Cutting Area: 1600mmx1000mm
Output Power: 80W
Cutting Speed: Adjustable
Working Table: Conveyor Working Table
Guarantee: One Year Free Maintenance

Product Description

Feature:

1.Suiable for most soft material cutting such as textile,fabric,plush,fiber,paper,rubber,leather,one machine with multi-function.

2.High precision:Imported linear guide and ball screw greatly improve the cutting precision ,extend the lifespan.

3.Constant light system: The machine uses the constant light, achieving high precision cutting of the whole area.

4.DSP control system with simple button on the panel,easy to set the cutting parameter,very humanly.

5. Auto focus fume extraction system with two air compresser and air pump

6.Adopt sealed co2 laser tube ,6 months life guarantee.

7. Simple structure,  low maintenance cost.

Parameter:
Laser typeGlass CO2 laser tubeMovement systemstepping motor system
Output power80WCooling systemWater cooling
Working area1600mmx1000mmElectrical VoltageAC220V+-5% 50/60hz
Working tableconveyor working tableSupported file formatAI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF
Working speedAdjustableStandard accessories1 set 550W exhuast fans
Position accuracyplus minus 0.1mmConnect interfaceUSB

Application:
---it''s suitable a variety of textile and apparel fabrics, soft and solid materials.
--it's used widely for textile, garment , industrial fabric and other materials.

Pls pay attention to the working environment for the double head laser engraver machine:
A: Avoid to put it near others machines with high magnetic and voltage such as welder and launching tower because they may interfere the signal transmission
B: Make sure to use a voltage regulator to keep the voltage stable, voltage fluctuation will hurt the machines
C: Pls use a three-pin socket to make sure the laser machine is connected well
D: You'd better not run it for too long time in an environment of strong acid to strong base to avoid damage precise components.

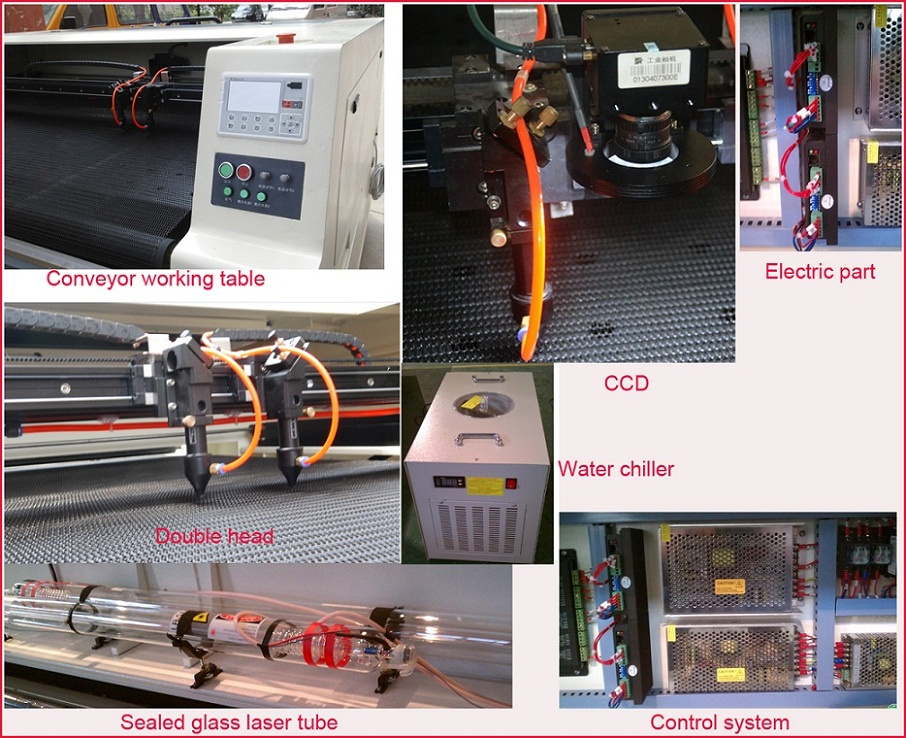

Close up


Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.


Demo video
https://www.youtube.com/watch?v=xs_Im20mv6g     carpet cutting
https://www.youtube.com/watch?v=GbkX77rZW_Q   labels engraving
https://www.youtube.com/watch?v=DOUXxajO3_w   insole engraving
https://www.youtube.com/watch?v=hPIgjdvG_GY      fiber laser cutting metal
https://www.youtube.com/watch?v=KJ4UGkaCjkk    fiber laser cutting machine
https://youtu.be/5PgXtVNajn4      large format fabric cutting
https://youtu.be/L6Rz6L3UaXY       embroidery applique cutting
https://youtu.be/uy6NRT4HsrU    MDF laser cutting

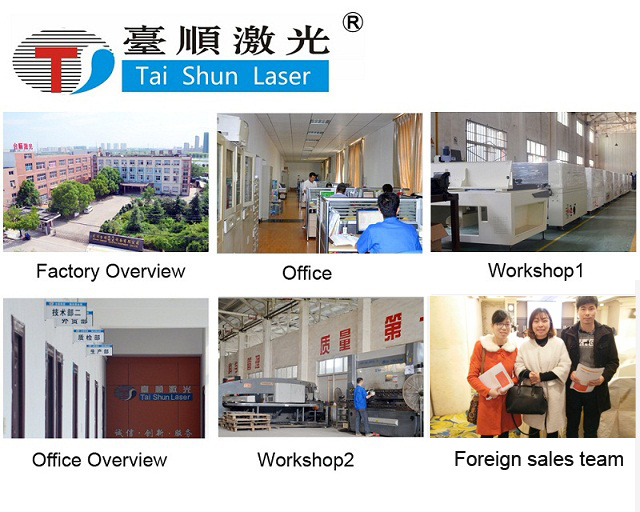

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.

Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.

We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.

Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
