Fmj6090 Customized CO2 Laser Engraving Machine for Wood
| Price: |
US $ 1-4950/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
FMJ6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Laser CNC Machine |
| Working Area: |
600*900mm |
| Laser Power: |
40W/60W/90W/100W/130W/150W |
| Laser Tube: |
Reci/ Weegaint |
| Control System: |
Leetro 6585 |
| Motor And Driver: |
Leadshine Stepper Motor and Driver |
| Rail: |
Taiwan Hiwin Square Rail |
| Belt: |
Shanghai Fulong Belt |
| Lens And Mirrors: |
Singapore |
| Table: |
Blade/ Honeycomb |
Product Description

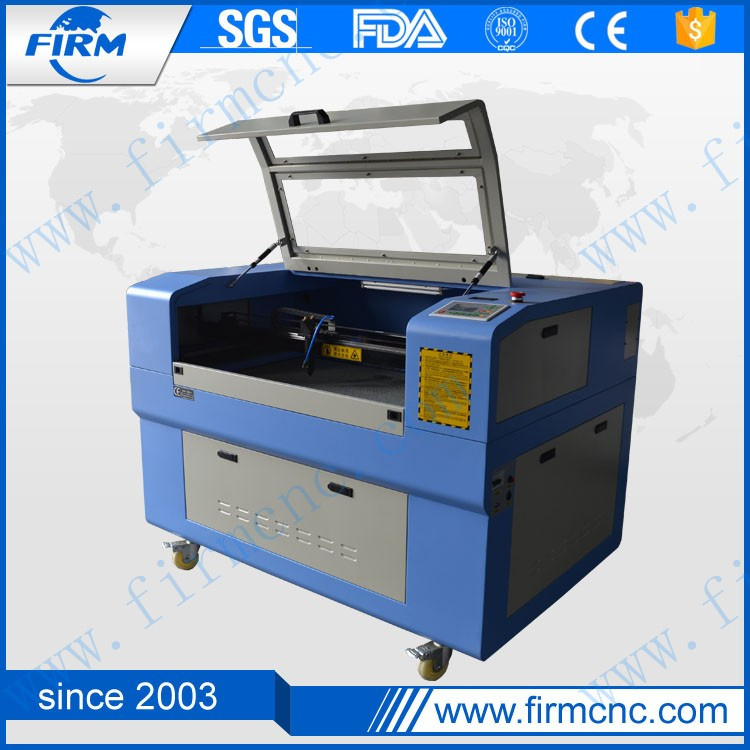

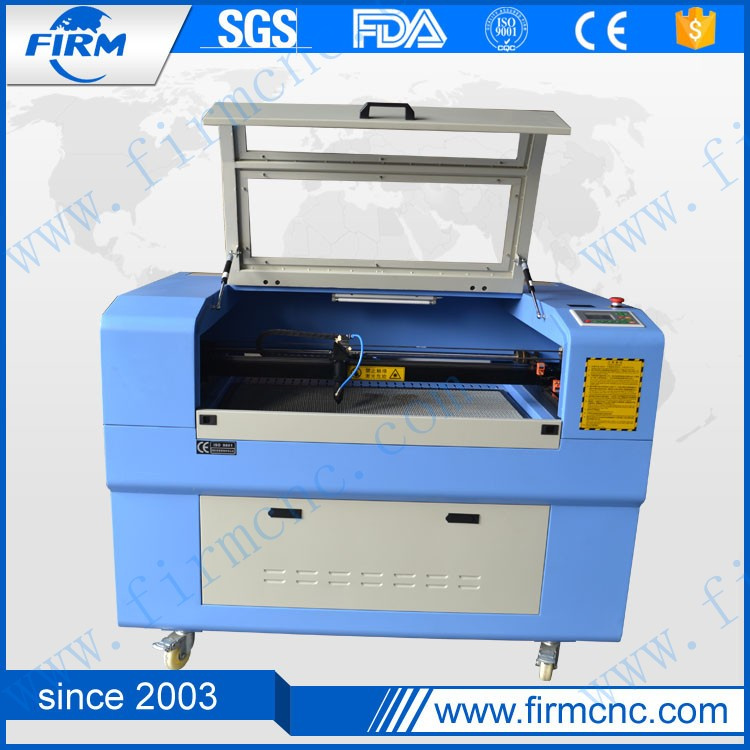

Fmj6090 Customized CO2 Laser Engraving Machine for Wood
This machine can cut and engrave on the acrylic, the max thickness can cut and engrave on the acrylic is: 20mm. We have many size of laser machine, as working size: 1300x900mm, 1300x2500mm, 600x900mm, 1400x1000mm 1600x1000mm and so on. Laser tube has 60w, 80w, 100w, 120w, 150w, using the Beijing RECI, or Chengdu Weegiant, having the honey nest table and the blade table.
Honey nest table fit for the soft materials, like leather, cloth, paper, fiber...
Blade table: Can withstand heavy materials, can hold 200kg, materials, suitable for cutting and engraving hard materials, like wood, acrylic and so on.

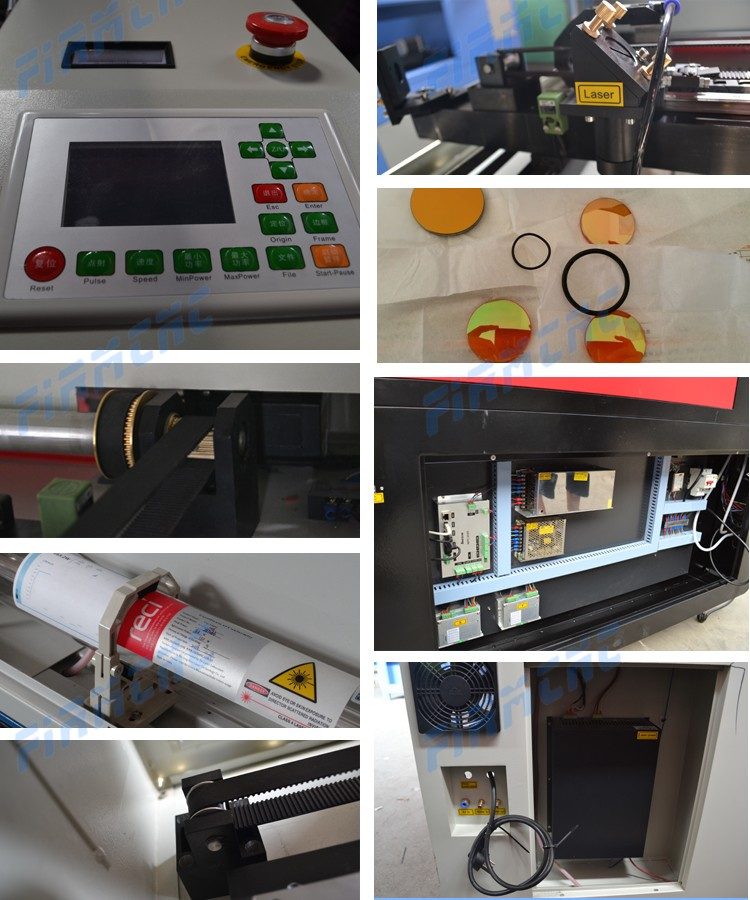

Features
1. The imported linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth. We also have the SEVEO, The motor can be choice. But price is higher than the stepper motor.
3. With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about the manual positioning.
4. High quality laser tube provides the strong beam and long service life.
5. More scientific design and high strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube. Beijing RECI LASER TUBE, can be over 10000 hours. | Material | Cut | Engrave |
| Acrylic , Plexiglass , Pmma , Perspex, | * | * |
| Organic board , Double color plate | * | * |
| Wood , Bamboo, Veneer , MDF ,Plywood | * | * |
| Leather ,Pig leather, Cow leather, Sheep leather , Wool Felt | * | * |
| Fabric , Textile ,Wool Felt,Man-made leather | * | * |
| Paper , Cardboard ,chipboard , press board | * | * |
| Ceramic , Tile ,Marble | | * |
| Plastic | * | * |
| Fiber glass | | * |
Technical specification| Model | FM-4060 | FM-6090 | FM-1290 | FM-1410 | FM-1610 | FM-1325 |
| Working area (mm) | 600*400 | 900*600 | 1200*900 | 1400*1000 | 1600*1000 | 1300*2500 |
| Laser tube power | 60W 80W 100W 120W 130W 150W |
| Laser Type | CO2 sealed laser tube |
| Engraving Speed | 0-64000mm/min |
| Cutting Speed | 0-36000mm/min |
| Cooling mode | Circulating-water-cooling (optional:water chiller) |
| Machine control and drive | Speedy DSP controlling, stepper motor |
| Cutting Platform | knife-strip platform (optional:honeycomb platform) |
| Power Supply | AC110V-220V/50-60Hz |
| Interface | USB |
| Dictate format | PLT,DST,DXF,BMP,DWG,AL,LAS |
| Operating Temperature | 5°C-40°C |
| Compatible Software | Support AutoCAD ,CoreDraw direct outputing |
| Optional Spare Parts | Rotary system, Industrial Chiller, Infrared Locating System,
Laser Tube, Up-down work table |
| Recommended Spare Parts | Laser Tube ,reflect and focus lens |
Application
Advertisement signs and marks making, handicraft industry, crystal accessories, paper
cutting, wood and bamboo industry, printing industry, clothing and leather industry,
garment industry, decorative industry, photo frame making and so on.
Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Our Service
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
1. We would provide English Version working manual.
2. If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.
3. Machine warranty is one year. So if your machine has any unintentional damages,we would provide parts for free.
4. If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
5. Could be remote control if needed.
Our company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
