Product Specifications
| Prod Model: |
TSHY130250 |
| Laser Type: |
CO2 |
| Application Area: |
Car Accessories, Plush Toys, Home Textiles |
| Application Material: |
Fabric, Wood, Non-Woven, Leather |
| Power Supply: |
AC220V+-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
1300mm*2500mm |
| Output Power: |
80W |
| Cutting Speed: |
Adjustable |
| Working Table: |
Conveyor Working Table |
| Guarantee: |
One Year Free Maintenance |
Product Description
Applications for laser cutting machine:
1.Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
2.Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry

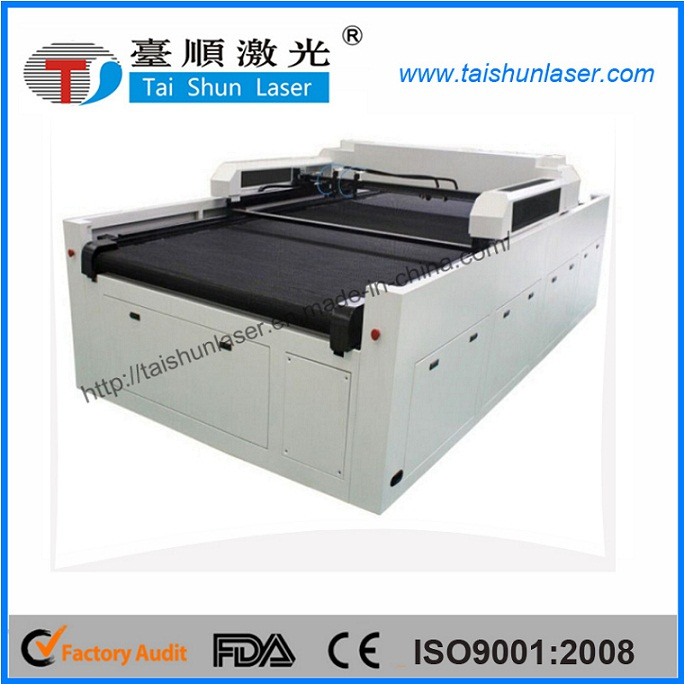

Standard Configuration for flatbed co2 laser cutting machine
1) Working Area:1300mm*2500mm,this can be customized as your requirements
2) Laser power:60w 80w 100w 150w - you can choose RECI laser tube,working hours:8000-10000 hours
3) DSP control system - with only a few buttons very easy to use
4) Conveyor worktable -you also can choose honeycomb table use for soft materials such as leather,fabric etc.
5) High resolution laser head.-good quality and long lifetime
6) Water pump-used for cooling laser tube to protect it has long life.
7) Air pump/Compressor.-cooling the laser head to avoid the materials being burned.
8) Exhaust fan - Blow away the smoke and dust,oil smoke
9) USB cable-To connect the machine and computer.
10) Tool box-Included the CD,User manual,and some wrenches for your work.
Product parameter:| Laser type | Glass CO2 laser tube | Movement system | single side servo system |
| Output power | 80W | Cooling system | Water cooling |
| Working area | 1300mm*2500mm | Electrical Voltage | AC220V+-5% 50/60hz |
| Working table | Conveyor working table | Supported file format | AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF |
| Working speed | Adjustable | Standard accessories | 2 set 550W exhuast fans |
| Position accuracy | +/-0.1mm | Optional accessories | 80W 100w,130w,150w laser tube,auto feeding system |
Feature:
1) The machine adopt advanced DSP control system which can continue and optimize the cutting speed, processing path, improve the working efficiency, the clearance compensation ensure the processing quality.
2) High compatibility, can support CAD, CORELDRAW, PHOTOSHOP etc and meet the industry need.
3) Multi-document function : the machine can store 256 files, the machine can still work without computer.
4) All optical isolate system and high speed differential input circuit design protect the signal from distorting and interferacing. the system realizes 12 kinds working state output and 16 kinds state input, and the machine can easy operation all over the world.
5) Reasonable design of laser line with industry water chiller, keep the same power-force on each spot, ensure the quality of cutting.
6) Double laser heads adopt the double linkage design, the distance between two heads can adust freely. the laser heads can work at the same time and respectively.
7) Widely used in advertising , LGP, model, clothes, leather industry, mainly used for engraving and cutting board, clothing, leather.
Samples shows
Full services:1. service before sales: our salesman will get a full knowledge of your requirement and supply a most suitable scheme for your product. Order detailed checked and confirmed by an official procedure
2. service during production: we will send photos of machines during production.In this way customers can get updated about status
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the any mistakes arised
4. service after shipping: we will seed the shipping documents to you accordingly and send a shipping advice about the ETD and ETA about the goods.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some
customers have question about it. we will have professional technician to help them to install and
teach how to use through skype ,calling, video or mail.
7. service of warranty: we offer 1 year warranty for whole machine. if any parts of our machine
is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a good experiences during the process of operation
If customers have any problems of machine in 2 or 3 , 5 years , they can contact us . Packing method:pallet first then into plywood carton with metal strip strengthed
Our machine series: CO2 Laser Engraving and Cutting Machine for most of the non-metal materials. Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm Mild Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )Order Notice:Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Demo videohttps://www.youtube.com/watch?v=xs_Im20mv6g carpet cuttinghttps://www.youtube.com/watch?v=GbkX77rZW_Q labels engravinghttps://www.youtube.com/watch?v=DOUXxajO3_w insole engraving https://www.youtube.com/watch?v=hPIgjdvG_GY fiber laser cutting metalhttps://www.youtube.com/watch?v=KJ4UGkaCjkk fiber laser cutting machinehttps://youtu.be/5PgXtVNajn4 large format fabric cutting https://youtu.be/L6Rz6L3UaXY embroidery applique cuttinghttps://youtu.be/uy6NRT4HsrU MDF laser cutting

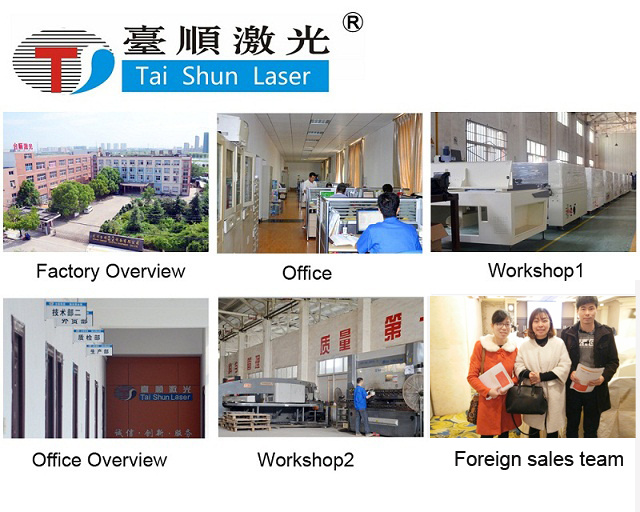

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
