Product Specifications
| Prod Model: |
TS160100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
Glass CO2 Laser Tube |
| Cutting Area: |
1600mmx1000mm |
| Cooling Mode: |
Water Cooling |
| Place Of Origin: |
Wuhan, China (Mainland) |
| Laser Power: |
60W/80W/100W/130W/150W |
| Brand Name: |
Taishun |
| Working Table: |
Conveyor Working Table |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf, Dxf,Plt |
| Driving System: |
Stepper Motor |
| Optional: |
CCD, Auto Feeding System |
Product Description

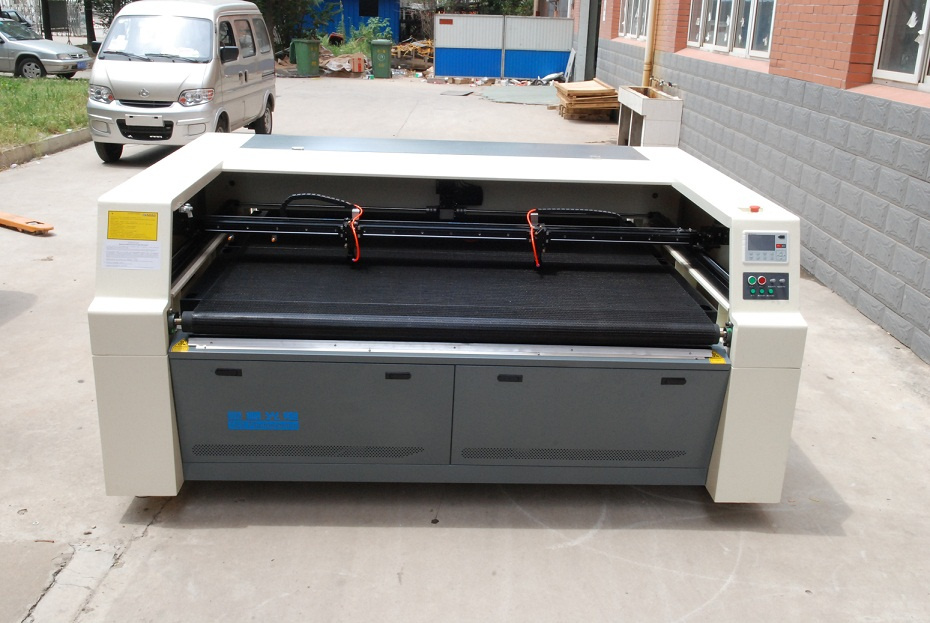

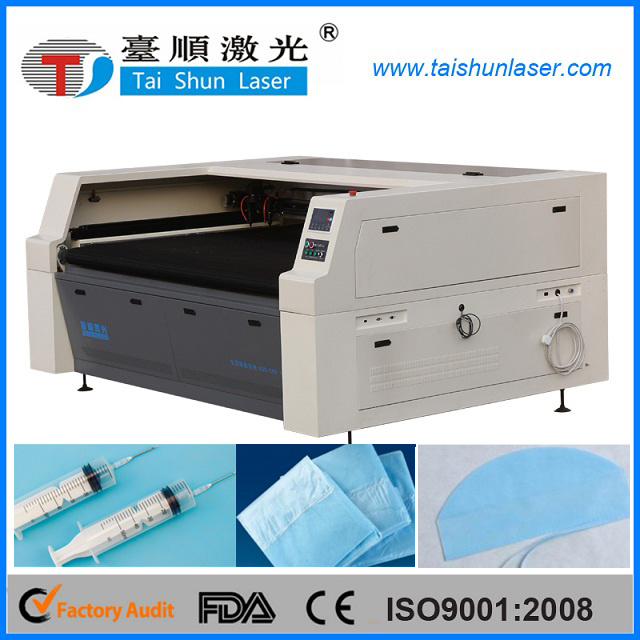

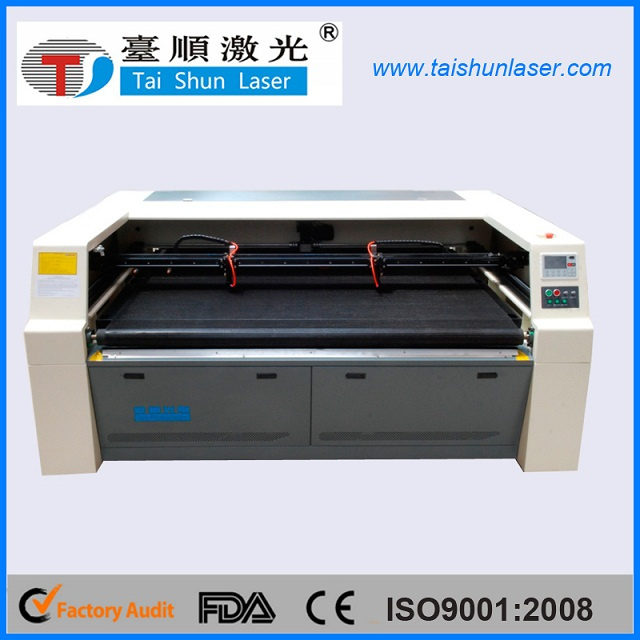

Auto Feeding Textile Laser Cutting Machine for textile,leather/small cnc laser engraver and cutter machinery
Applications for laser cutting machine:
1.Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
2.Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry

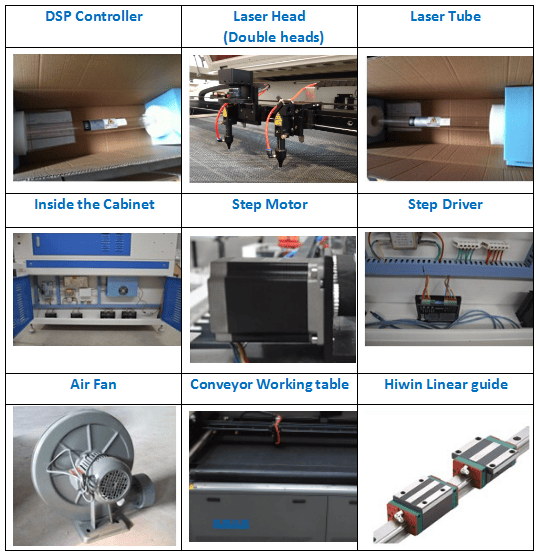

Standard Configuration for co2 laser cutting machine:
1) Working Area:1600*1000mm,this can be customized as your requirements
2) Laser power:60w 80w 100w 150w - you can choose RECI laser tube,working hours:8000-10000 hours
3) DSP control system - with only a few buttons very easy to use
4) Knife worktable - suitable for hard materials such as wood,acrylic,you also can choose conveyor honeycomb table use for soft materials such as leather,fabric etc.
5) High resolution laser head.-good quality and long lifetime
6) Water pump-used for cooling laser tube to protect it has long life.
7) Air pump/Compressor.-cooling the laser head to avoid the materials being burned.
8) Exhaust fan - Blow away the smoke
9) USB cable-To connect the machine and computer.
10) Tool box-Included the CD,User manual,and some wrenches for your work.
Standard configuration for laser cutting machine:
| | Item / Model | TSHY-160100II |
| 1 | Working area | 1600 x 1000mm |
| 2 | Laser power | 80W/100W/130W/150W Laser tube |
| 3 | Engraving speed | 0 - 60000 mm/min |
| 4 | Reposition accuracy | ±0.1mm |
| 5 | Working voltage | AC110- 220V±10%,50-60Hz |
| 6 | Consuming power | <1,000W |
| 7 | Working temperature | 0 - 45°C |
| 8 | Working humidity | 8 - 95% |
| 9 | Minimum letter size | English :1 x 1mm Chinese:2 x 2mm |
| 10 | Supported file format | BMP, HPGL, PLT, DST, DXP, and AI |
| 11 | Driving system | Stepper motors |
| 12 | Laser tube cooling type | Water pump |
| 13 | Other auxiliary equipment | Air Fun |
| 14 | Compatible software | CorelDraw AutoCAD Photoshop |
| 15 | Laser tube type | Sealed CO2 glass laser tube: |
| 16 | N.W/G.W | 600kg/750kg |
| 17 | Consumable parts(Recommended) | 1.Extra laser tube 2.Extra 1 lens and 3 mirrors |
| High quality and competitive price |
Technical Parameters for laser engraving machine :
Characteristic:
----It adopted conveyor working table with over-exceed long working area , which can realize one time cutting for more wider home textile and industrial products
---Through Multi- head intelligent typesetting software, it can realize double head divided automatically, and make cutting speed more faster, and increase higher utilization rate for fabric materials.
--Various laser power and working area can be chose, customer can request for multi-head to increase production efficiency according to themself requirements.
Samples
Certification for laser cutting machine:
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
