Product Specifications
| Prod Model: |
TSM30WF |
| Laser Type: |
Fiber Laser |
| Model No: |
Tsm30wf |
| Laser Power: |
10W/20W/30W |
| Max.Marking Area: |
110*110mm |
| Cooling Way: |
Water Cooling |
| Marking Depth: |
0.01~1mm |
| Minimum Character: |
0.15mm |
| Engraving Speed: |
0-7000mm/S |
| Minimum Line Width: |
0.01mm |
| Guarantee: |
Two Year |
Product Description
>>>Feature

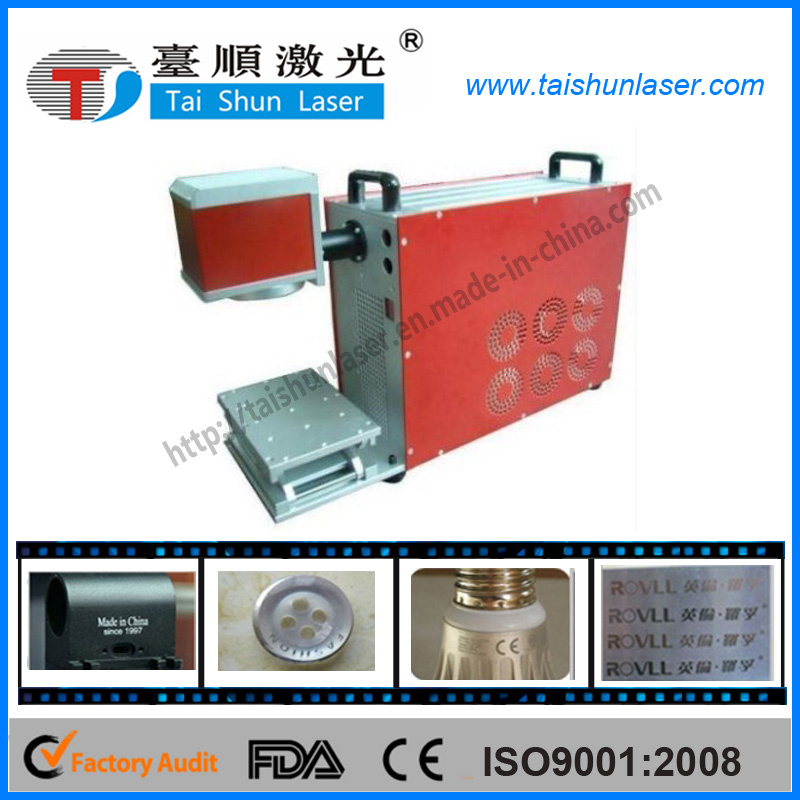

1.TSM30WF laser marking machine is a new generation laser marking system made with newest laser technique in the world.
2.It design with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function.
3.The fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc.
>>> Technical Parameters
| Tag arguments | Model name | TSM30WF |
| Standard marking size | 110mmX110mm |
| Marking Range | 110X110mm /300 X 300MM/ 650mm×650mm (optional) |
| Beam quality | m2<2 |
| Marking speed | ≤ 12000mm / s |
| Laser characterization | Laser power | 10W/20W/30W |
| Laser wavelength | 1064 nm |
| Laser output control | 1-100% software setting |
| Min.character size | 0.3 mm/0.5mm |
| Min line width | 0.01mm |
| Repeated precision | ± 0.02mm |
| Laser Module Life | >100000hours |
| Other | Power consumption | ≤3.5 KW |
| Environment Temperature | 15~35ºC |
| Environment humidity | 30%-80% |
| Power supply | 220V/50Hz 30A |
| Cooling style | air-cooling system |
| Marking graph | User-defined character, CAD data/BMP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT |
| Package(PortableA) | N.W | 50KG |
| Dimension (MM) | 300×700×500mm |
| Package size | 400×830×650 |
| Package(PortableB) | N.W | 40KG |
| Dimension (MM) | 600×600×600mm |
| Package size | 700×730×750 |
| Package(PortableC) | N.W | 100KG |
| Dimension (MM) | 800×680×(75+62)mm |
| Package size | 900×720×880 mm |
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
