Fiber Laser Marking Machine for Stationery and Bolts Making
| Price: |
US $ 5500-14000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
TSM30WF |
| Laser Type: |
Fiber Laser |
| Model No: |
Tsm30wf |
| Laser Power: |
10W/20W/30W |
| Max.Marking Area: |
110*110mm |
| Cooling Way: |
Water Cooling |
| Marking Depth: |
0.01~1mm |
| Minimum Character: |
0.15mm |
| Engraving Speed: |
0-7000mm/S |
| Minimum Line Width: |
0.01mm |
| Guarantee: |
Two Year |
Product Description

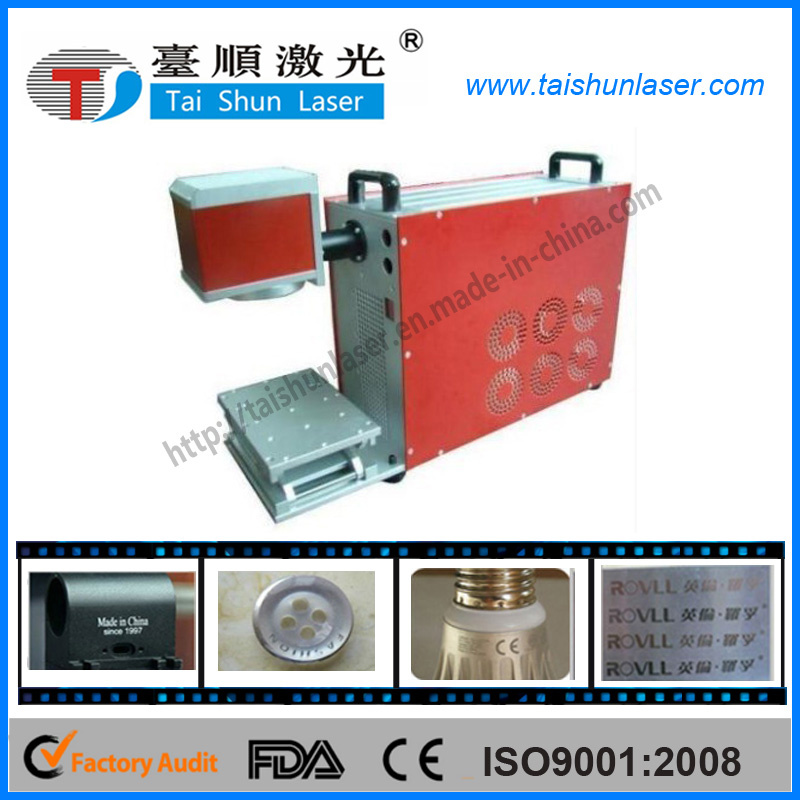

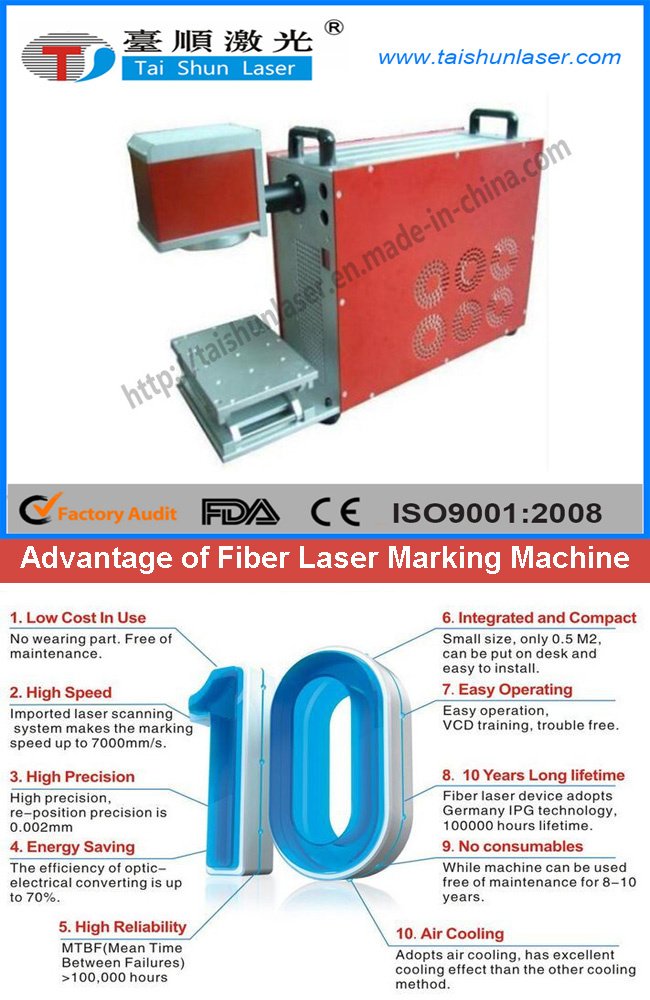

Portable Mini Laser Marking Machine (TSM30WF)
1.TSM30WF laser marking machine is a new generation laser marking system made with newest laser technique in the world.
2.It design with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function.
3.The fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc.
>>> Technical Parameters | Tag arguments | Model name | TSM30WF |
| Standard marking size | 110mmX110mm |
| Marking Range | 110X110mm /300 X 300MM/ 650mm×650mm (optional) |
| Beam quality | m2<2 |
| Marking speed | ≤ 12000mm / s |
| Laser characterization | Laser power | 10W/20W/30W |
| Laser wavelength | 1064 nm |
| Laser output control | 1-100% software setting |
| Min.character size | 0.3 mm/0.5mm |
| Min line width | 0.01mm |
| Repeated precision | ± 0.02mm |
| Laser Module Life | >100000hours |
| Other | Power consumption | ≤3.5 KW |
| Environment Temperature | 15~35ºC |
| Environment humidity | 30%-80% |
| Power supply | 220V/50Hz 30A |
| Cooling style | air-cooling system |
| Marking graph | User-defined character, CAD data/BMP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT |
| Package(PortableA) | N.W | 50KG |
| Dimension (MM) | 300×700×500mm |
| Package size | 400×830×650 |
| Package(PortableB) | N.W | 40KG |
| Dimension (MM) | 600×600×600mm |
| Package size | 700×730×750 |
| Package(PortableC) | N.W | 100KG |
| Dimension (MM) | 800×680×(75+62)mm |
| Package size | 900×720×880 mm |
>>>FAQ:Q1.What's the guarantee for the product quality?
We offer two-year free maintenance services for our customers. Generally speaking, our technician will figure out what the cause may be one the problems arise according to clients' feedback. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.
Q3. What I need to do when the machine suffer trouble?
Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q4. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q5 .How about the life-span of the laser tube ?
If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q6: How long time does it take for a learning of the laser machine operation ?
If you are able to use some basic graphic design software, it will only take a few hours to master the operation, You just need to do some simple tests on different processing materials to learn how to adjust the speed and laser power.
Q7: Is it harmful to human body when in operation ?
It is not harmful, as long as the laser don't direct shoot the skin and eyes.
Q8: Does it need to be connected by a laptop or computer ?
Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.

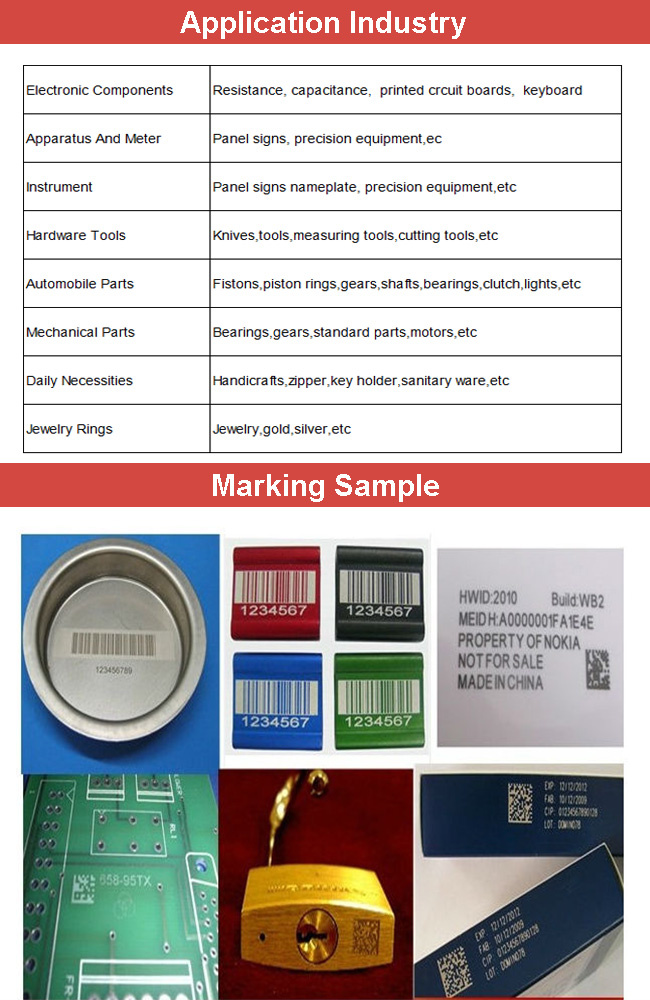

Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
