Product Specifications
| Prod Model: |
TSM30WC |
| Model No: |
Tsm30wc |
| Laser Power: |
10W/30W/60W/100W |
| Max.Marking Area: |
110*110mm |
| Cooling Way: |
Air Cooling |
| Guaranty: |
One Year Free Maintanence |
| Certification: |
Ce SGS FDA ISO |
| Marking Depth: |
<2mm(Determined by Material) |
| Marking Speed: |
≤7000mm/S |
| Min Linear Width: |
0.15mm |
Product Description
>>>Brief introduction

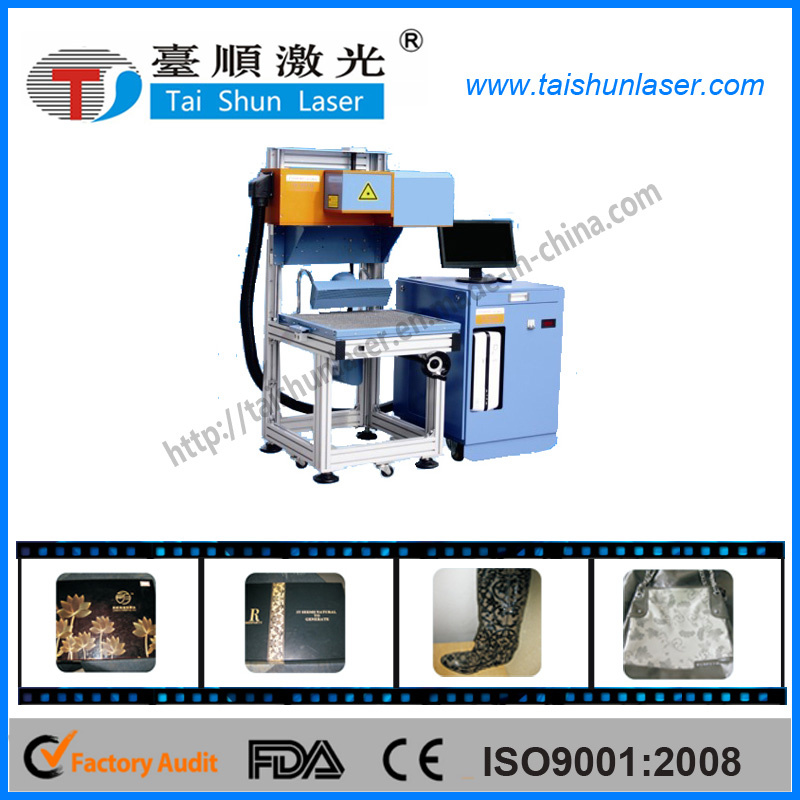

CO2 3D dynamic laser marking machine takes many factors into consideration, such like big power, larger working area, high efficiency marking, bad working environment, so we do many improvements on selecting device and designing.
It has many advantages such like fine laser spot with good consistency, longer life span laser tube. This system adopt imported appliance.
It is equipped with imported high speed scanning galvanometer and optical devices.
The machine can work for a long time with extremely stable performance.
>>>Application industry
Materials: Most nonmetallic materials, such as leather, cloth, wood, bamboo, paper,
Organic materials ect.
Industry: Glasses, leather products, garment, wooden products, crafts gifts, packaging.
>>>Feature
1. Full sealed and maintenance free laser optic system. You can use it at installation without adjustment.
2. It adopts the original imported RF laser, makes the machine enjoys a life time more than 20k hours.
3. The working efficiency is 20% higher than other similar machines with high precision and high speed marking performance.
4. External dual cycle industrial cooling water system enables the whole machine run more stably with lower power consumption.
5. The strict multiple protection control design applies to a wide range of working
Environment temperature, it ensures 24 hours continuous and reliable working of the laser marking system.
6. Under Windows interface, it can compatible with a variety of software output files, such like AutoCAD, CoreDraw, Photoshop.
Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.
It support automatic coding, serial number, batch number, date, bar code and
Two-dimensional code marking.
7. Especially suitable for engraving and marking on stones and leather materials.
8. With a big aluminium shell, the laser head is protected well. Also it makes the body immune to the impact of laser radiation.
>>>Technical parameters
Machine Type |
Non-metallics CO2 Laser Marking Machine |
Machine Model |
TSM30WC |
Laser Output Power |
10W |
30W |
60W |
100W |
Laser Type |
American RF CO2 Laser Tube |
China Glass Laser Tube |
Laser Tube life Time |
45000+ hours |
1500~3000 hours |
Standard Working Area: |
110mm×110 mm |
Optional Working Area: |
70mm×70mm, 175mm×175mm |
Marking Depth: |
0.01~0.3mm |
Marking Speed: |
7000mm/second |
Repeated Accuracy: |
0.01mm |
Laser Wavelength: |
10.64um |
Minimum Line Width: |
0.015mm |
Power Supply: |
380V/220(50Hz-60Hz) |
Machine Power: |
2KW |
Dimensions
(L×W×H) |
Laser Optical System |
240×1280×1200 (mm) |
Control Cabinet |
590×560×800 (mm) |
Water-cooling System |
540×700×900 (mm) |
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
