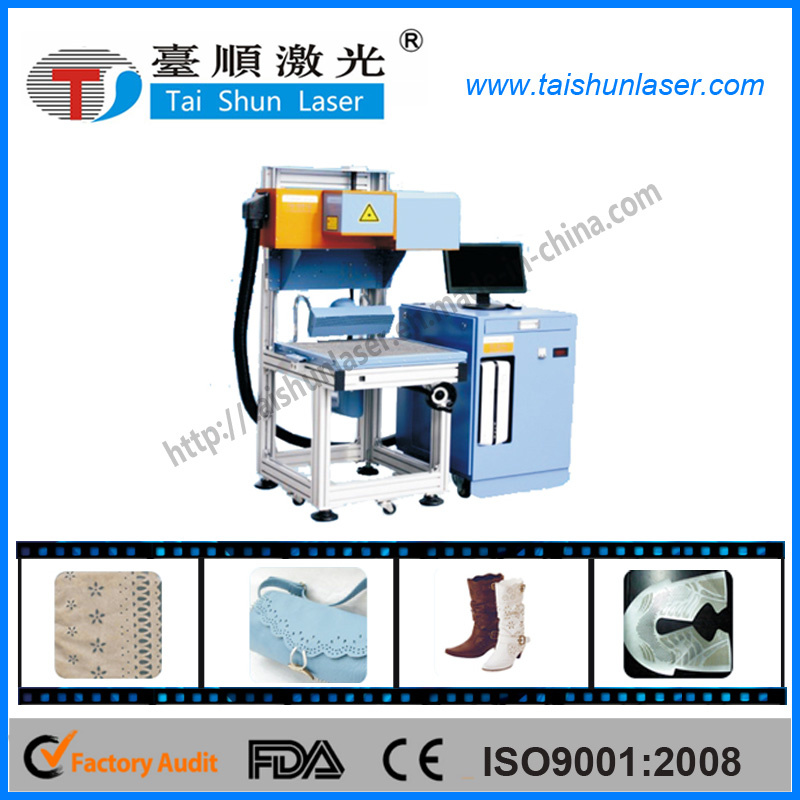

Product Specifications
| Prod Model: |
TSM150WC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Applied Material: |
Plastic, Leather Fabric Plywood, Epoxy |
| Marking Range: |
100mmx100mm |
| Laser Power: |
150W |
| Graphic Format: |
Ai, BMP, Plt, Dxf, Dst |
| Tag Line Speed: |
7000mm/S |
| Repeat Accuracy: |
+0.003mm |
| Laser Repeat Frequency: |
20kHz-80kHz |
| Min Line Width: |
0.012mm |
| Guarranty: |
One Year Free Maintanence |
| Certification: |
Ce, Rhos, SGS, ISO |
Product Description
Feature:
1.Laser tube: Adopts USA Coherent RF metal laser tube which is characterized by high power,
excellent performance and long life <20k hours>.
2.Laser optic system:sealed and maintenance-free laser optic system with key components imported from USA or
UK,put into production after installation
3. Marking characteristic :High-precision and high-speed with efficiency 20% higher than a normal one
4. Water cooling system makes it work more stable with longer service life.
5. Rotary worktable system :optional,for marking on a cambered or curved surface for articles such as pen,ring,oven cup,etc
6. With mirror marking function.
7. Friendly WINDOWS interface, compatible with files output from software such as CORELDRAW,
AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX,
TTF font.
Application Industry
Materials: Majority of nonmetal materials such as leather, cloth, wood, bamboo, paper, organic materials,
plastic, epoxy resin etc.
Fields: arts & crafts,Leather products,glasses,clothing,bamboo and wood products
industry,package,advertising decoration and architectural model.
Technic parameter:
| Laser type | CO2 laser tube | Min line width | 0.012mm |
| Output power | 150W | Min Character | 0.15mm |
| Laser wavelength | 1064nm | Electrical Voltage | AC220V+-5% 50/60hz |
| Marking area | 100mmx100mm | Supported file format | AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF |
| Tag line speed | <7000mm/s | Optional accessories | Rotary system,up and down system |
Applied tips:
1, Marking content: any text or icon in English, Arabia digital, serial number, VIN number, two-dimensional code, logos, etc
2, Character arrangement: horizontal, inclined, arc, arbitrary permutation;
3, any optional font;
4, The character size, spacing can be adjusted freely;
5, Applicable materials: metal, hard alloy, ceramic, plastic etc
Full services
1. service before sales: our salesman will get a full knowledge of your requirement and supply a most suitable scheme for your product. Order detailed checked and confirmed by an official procedure
2. service during production: we will send photos of machines during production.In this way customers can get updated about status
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the any mistakes arisen
4. service after shipping: we will seed the shipping documents to you accordingly and send a shipping advice about the ETD and ETA about the goods.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some
customers have question about it. we will have professional technician to help them to install and
teach how to use through skype ,calling, video or mail.
7. service of warranty: we offer 1 year warranty for whole machine. if any parts of our machine
is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a good experiences during the process of operation
If customers have any problems of machine in 2 or 3 , 5 years , they can contact us .
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex- factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
Order Notice
Please let us know following informations:
1. What materials you want to mark?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. Where do you want to use them for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
