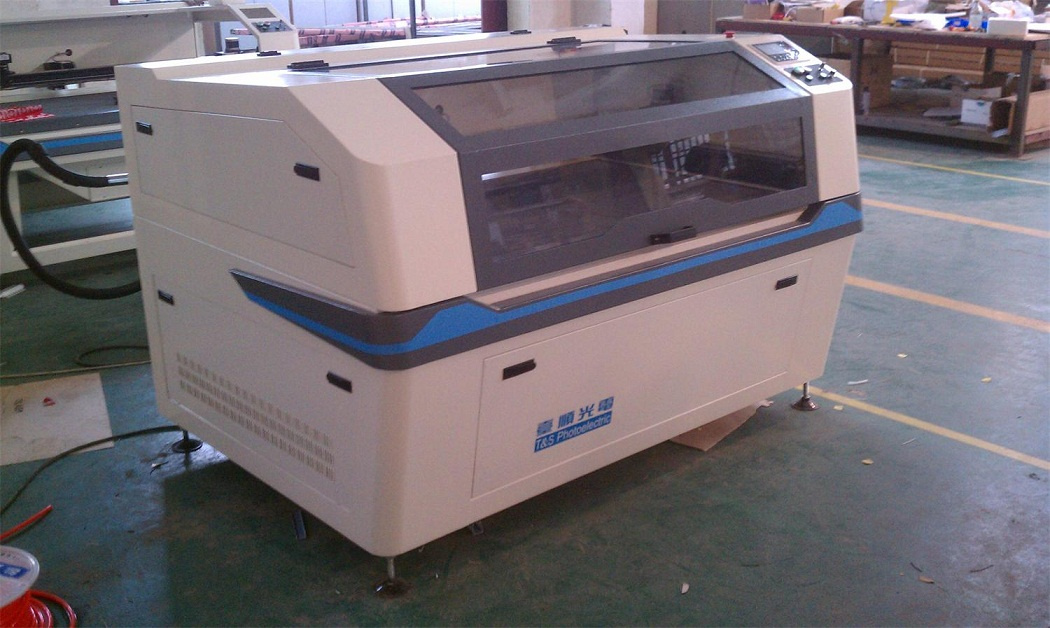

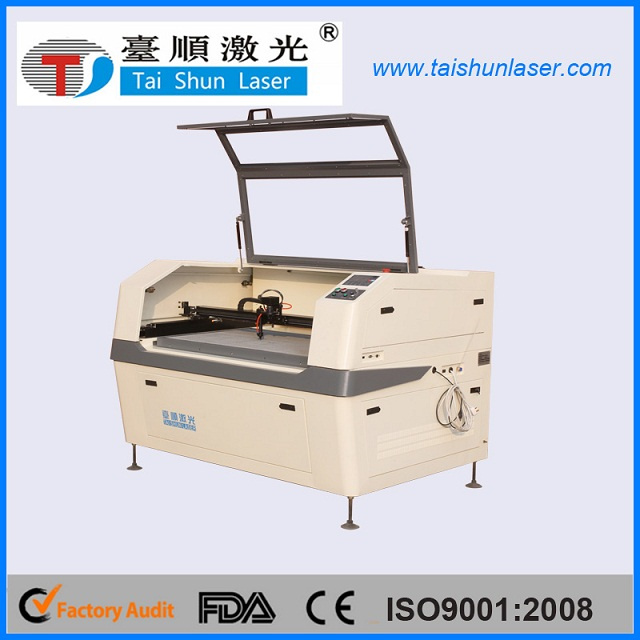

Dual Head CO2 Laser Machine for Shoe Upper Insole Pattern Engraving

Product Specifications

Prod Model:	TSHY160100LD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Laser Type:	CO2
Laser Power:	60wx2
Working Area:	1000mmx600mm
Position Accuracy:	+/-0.1mm
Movement System:	Stepping Motor System
Guarantee:	1 Year Free Maintanence
Working Table:	Conveyor Working Table
Compatible Software:	Coreldraw, Photoshop, Autocad, Tajima, etc.
Working Environment:	0-45c, Humidity 5-95%(No Condensate Wat
Classification:	Laser Engraving

Product Description

Feature:

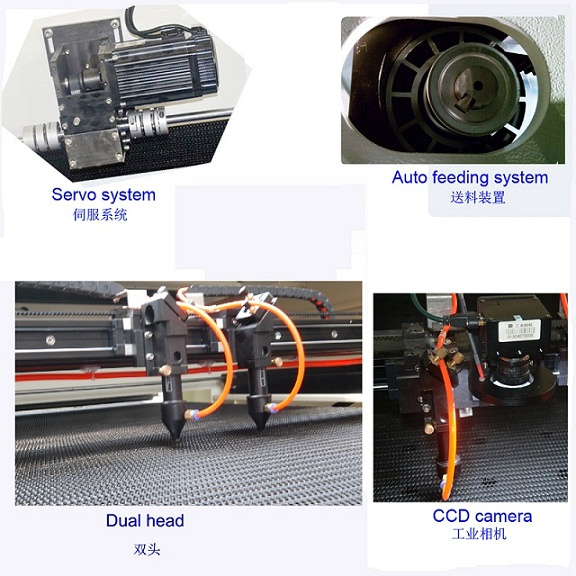

Hardware parts
Adopt imported patent guide rail for critical sections,which has special adjust
& calibration method.
It has characteristic for small kerf ,high speed and high accuracy

Movement parts
It has unique patented transmission system,improve the stability of transit system to achieve instantaneous liner speed and self-regulation function according to liner to curve,ensure the cutting edge is smooth and the curve natural

Optical Path
It adopt imported focus lens and reflecting mirrors,and it can reach mininum energy lost.

Cooling system
It adopted closed water cooling system to ensure stable operation of laser tube for a long time.It also can choose professional water chiller,to ensure recycling water temperature,making sure laser beam stably and working long

Software system
Automatic intelligent layout functions,double head shift
Automatic typesetting files to achieve continuous feeding and cutting
Through a simple copy collection devices to achieve fast copy and marker function,convenient for staff operation

Technology parameter:

Laser type	Glass Co2 laser tube	Movement system	single side servo system
Output power	60Wx2	Cooling system	Water cooling
Working area	1000mmx600mm	Electrical Voltage	AC220V+-5% 50/60hz
Working table	conveyor working table	Supported file format	AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF
Working speed	Adjustable	Standard accessories	2 set 550W exhuast fans
Position accuracy	plus minus 0.1mm	Optional accessories	100w,130w,150w laser tube,auto feeding system,water chiller

Video here
http://v.youku.com/v_show/id_XNTU2Nzk3OTM2.html?from=s1.8-1-1.2 double head cutting insole application

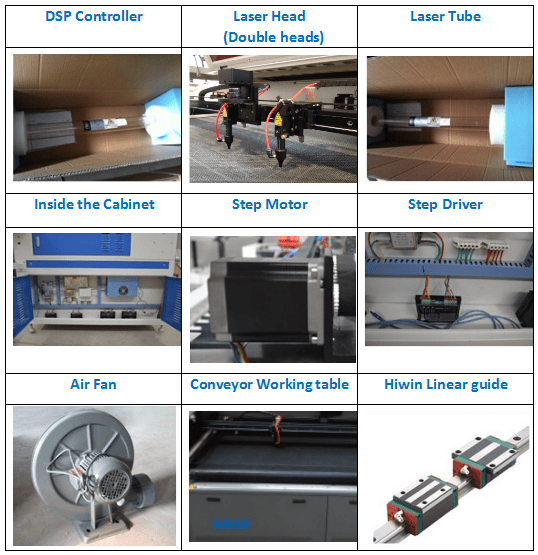

Main configuration:



Pls pay attention to the working environment for the double head laser engraver machine:
A: Avoid to put it near others machines with high magnetic and voltage such as welder and launching tower because they may interfere the signal transmission
B: Make sure to use a voltage regulator to keep the voltage stable, voltage fluctuation will hurt the machines
C: Pls use a three-pin socket to make sure the laser machine is connected well
D: You'd better not run it for too long time in an environment of strong acid to strong base to avoid damage precise components.

FAQ:
Q1.What's the guarantee for the product quality?
 A:We offer one-year free maintenance services for our machines. Fault parts with the valid period will be replaced for free except for consumable parts.

Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.If problems in the process of operation,pls keep your lens and mirrors be clean ,then check your laser tube and talk details to us.

Q3. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.

Q4 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RF metal laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months

Q5: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.

Q6: Is it harmful to human body when in operation ?
A: It is not harmful, as long as avoid to see it directly

7:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.

Full services
1.  service before sales:  our salesman will get a full knowledge of your requirement  and supply a most suitable scheme for your product. Order detailed checked and confirmed by an official procedure
2. service during production: we will send photos of machines during production.In this way customers can get updated about status
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the any mistakes arisen
4. service after shipping: we will seed the shipping documents to you accordingly and send a shipping advice about the ETD and ETA about the goods.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching:  there are some manual and video about how to use machine, if some
customers have question about it. we will have professional technician to help them to install and
teach how to use through skype ,calling, video or mail.
7. service of warranty: we offer 1 year warranty for whole machine. if any parts of our machine
is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a good experiences during the process of operation
If customers have any problems of machine in 2 or 3 , 5 years , they can contact us .

Guarantee&After-sale service
1, Best components, perfect technics and strictly ex- factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.

Order Notice
Please let us know following informations:
1. What materials you want to cut ?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the material used for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.
