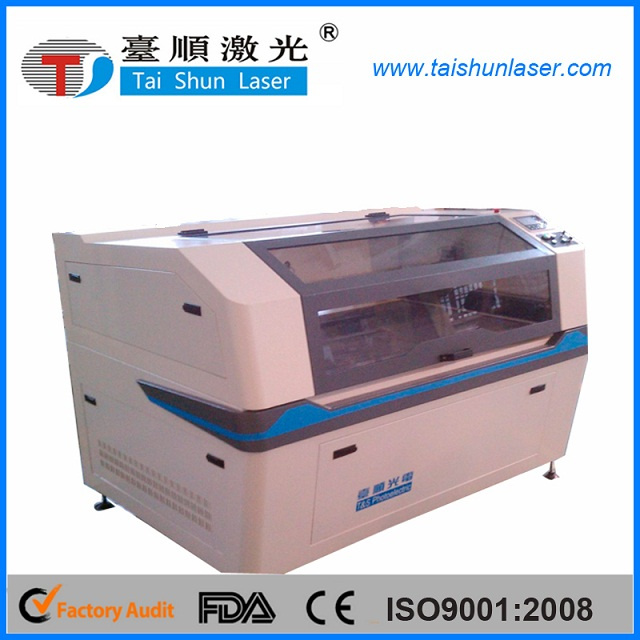

Double Head Garment Accessories Laser Engraving Machine
| Price: |
US $ 4900-5000/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Specifications
| Prod Model: |
TSHY15090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 |
| Laser Power: |
80wx2 |
| Working Area: |
1500mmx900mm |
| Working Table: |
Conveyor Working Table |
| Position Accuracy: |
+/-0.1mm |
| Movement System: |
Single Side Servo System |
| Standard Accessories: |
550W 2 Set Exhaust Fans |
| Supported File Format: |
Ai, BMP Plt Dxf Dst Ai BMP Plt Dxf |
| Guarantee: |
One Year Free Maintenance |
| Customized: |
Accepted |
Product Description
Characterics:
widely used in garment material for leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving, jeans engraving, carpet engraving and cutting, toy cutting, wool cutting, denim engraving and cutting.
Technic parameter:| Model | TSYQ15090 | | Option |
| Working Area | 1500mmx900mm | | According to Demands |
| Laser Type | CO2 Sealed Laser Tube , 10.6μm |
| Cooling Type | Water Cooling |
| Engraving Speed | 0-60000mm/min |
| Cutting Speed | 0-36000mm/min |
| Laser Output Control | 0-100% Set by Software |
| Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm |
| Highest Scanning Precision | 2500DPI |
| Locating Accuracy | ≤±0.01mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc |
| Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
| Color Separation | Yes |
| Drive System | High-precision 3-phase Stepper Motor |
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe |
| Power Supply | AC220V+10%,50HZ/60HZ |
| Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
| Option | Water chiller CCD Position System |
Main body shipped| 1). 2× 80watts Co2 Laser tube (Installed in the machine). |
| 2). 3 × Reflecting Mirrors + 1× Focusing Lens (Installed in the machine). |
| 3). 1× 3000W Industrial Water Chiller |
| 4). 1× conveyor working table OR 1× Honeycomb table |
| 5). 1× Air Compressor + 2× Exhaust blower |
| 6). 1× USB cable (Connecting PC and Laser) |
| 7). 1× Manual (User-friendly User's Manual, Guiding video & Demo video.) |
| 8). 1× Power cable(we also stock 110V~240V power version and USA.UK.EU.AU plugs for the country all over the world) |
| 9). 1× Tool box |
Pls pay attention to the working environment for the double head laser engraver machine:
A: Avoid to put it near others machines with high magnetic and voltage such as welder and launching tower because they may interfere the signal transmission
B: Make sure to use a voltage regulator to keep the voltage stable, voltage fluctuation will hurt the machines
C: Pls use a three-pin socket to make sure the laser machine is connected well
D: You'd better not run it for too long time in an environment of strong acid to strong base to avoid damage precise components.
Our machine series:
CO2 Laser Engraving and Cutting Machine for most of the non-metal materials.
Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.
Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm Mild Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )
Full services
1. service before sales: our salesman will get a full knowledge of your requirement and supply a most suitable scheme for your product. Order detailed checked and confirmed by an official procedure
2. service during production: we will send photos of machines during production.In this way customers can get updated about status
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the any mistakes arisen
4. service after shipping: we will seed the shipping documents to you accordingly and send a shipping advice about the ETD and ETA about the goods.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some
customers have question about it. we will have professional technician to help them to install and
teach how to use through skype ,calling, video or mail.
7. service of warranty: we offer 1 year warranty for whole machine. if any parts of our machine
is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a good experiences during the process of operation
If customers have any problems of machine in 2 or 3 , 5 years , they can contact us .
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex- factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
Notice:
Please let us know following informations:
1. What materials you want to cut ?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cuting, what will be the metal used for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.
Demo video
https://www.youtube.com/watch?v=xs_Im20mv6g carpet cutting
https://www.youtube.com/watch?v=GbkX77rZW_Q labels engraving
https://www.youtube.com/watch?v=DOUXxajO3_w insole engraving
https://www.youtube.com/watch?v=hPIgjdvG_GY fiber laser cutting metal
https://www.youtube.com/watch?v=KJ4UGkaCjkk fiber laser cutting machine
https://youtu.be/5PgXtVNajn4 large format fabric cutting
https://youtu.be/L6Rz6L3UaXY embroidery applique cutting
https://youtu.be/uy6NRT4HsrU MDF laser cutting
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
