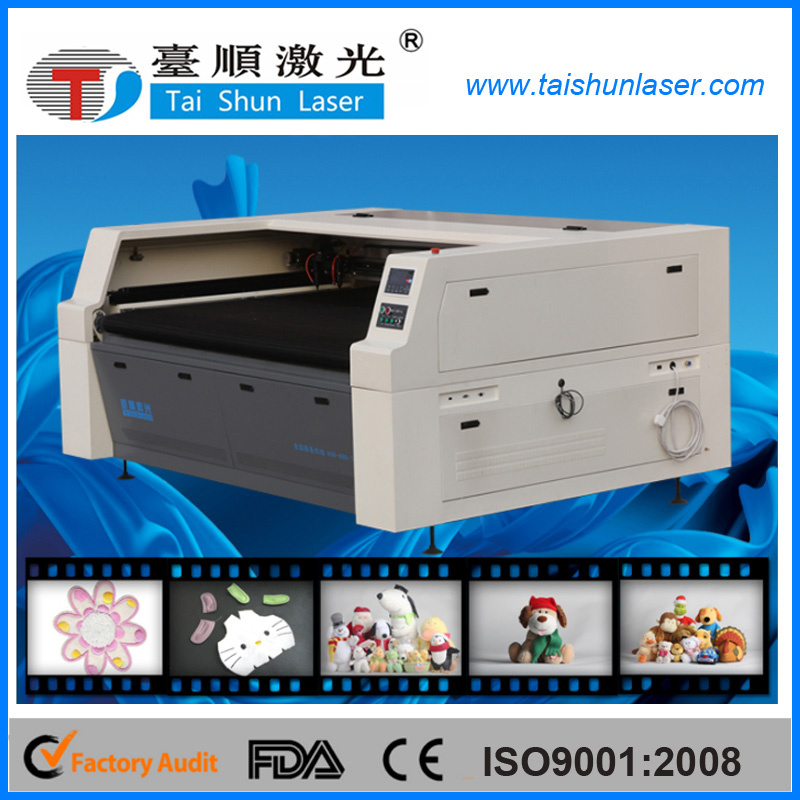

Double Head CO2 Laser Cutting Machine for Plush Toys

Double Head CO2 Laser Cutting Machine for Plush Toys
Price: US $ 4000-6000/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Product Specifications


Prod Model: TSJ160100L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No: Tsj160100L
Laser Power: 60W/80W/100W/110W/130W
Max.Marking Area: 1600mmx1000mm
Cooling Way: Water Cooling
Laser Type: Glass CO2 Laser Tube
Movement System: Single Side Servo System
Position Accuracy: 0.5mm
Condition: New
Guarantee: One Year Free Maintenance
Worktable: Honeycomb

Product Description

>>>Applications for laser cutting machine:
 1.Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
 2.Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry

>>>Standard Configuration for co2 laser cutting machine:
1) Working Area:1600*1000mm,this can be customized as your requirements
2) Laser power:60w 80w 100w 150w - you can choose RECI laser tube,working hours:8000-10000 hours
3) DSP control system -  with only a few buttons very easy to use
4) honeycomb worktable - suitable for hard materials such as wood,acrylic,you also can choose honey comb table use for soft materials such as leather,fabric etc.
5) High resolution laser head.-good quality and long lifetime
6) Water pump-used for cooling laser tube to protect it has long life.
7) Air pump/Compressor.-cooling the laser head to avoid the materials being burned.
8) Exhaust fan - Blow away the smoke
9) USB cable-To connect the machine and computer.
10) Tool box-Included the CD,User manual,and some wrenches for your work.

>>>Parameter
Laser typeGlass CO2 laser tubeMovement systemstepping motor system
Output power80WCooling systemWater cooling
Working area1600mmx1000mmElectrical VoltageAC220V+-5% 50/60hz
Working tablehoneycomb working tableSupported file formatAI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF
Working speedAdjustableStandard accessories1 set 550W exhuast fans
Position accuracyplus minus 0.1mmConnect interfaceUSB,PC,U-disk
Software supportedCoreldraw, Photoshop, AutoCADWorking environmentTemperature:0-45C,Humidity 5-95%(No Condensate Water)

Characteristic:
1) The machine adopt advanced DSP control system which can continue and optimize the cutting speed, processing path, improve the working efficy, the clearance compensation ensure the processing quality.
2) High compatibility, can support CAD, CORELDRAW, PHOTOSHOP etc and meet the industry need.
3) Multi-document function : the machine can store 256 files, the machine can still work without computer.
4) All optical isolate system and high speed differential input circuit design protect the signal from distorting and interferacing. the system realizes 12 kinds working state output and 16 kinds state input, and the machine can easy operation all over the world.
5) Reasonable design of laser line with industry water chiller, keep the same power-force on each spot, ensure the quality of cutting.
6)  Double laser heads adopt the double linkage design, the distance between two heads can adust freely. the laser heads can work at the same time and respectively.
7)  Widely used in advertising , LGP, model, clothes, leather industry, mainly used for engraving and cutting board, clothing, leather.

>>>After-Sales Service & Warranty
1.One year guarantee period for product quality.(man made damaged is negotiable).
2.Lifelong maintenance and spare parts supply.
3.Free design of fixtures as customers required.
4.Free training for machines installation and operation of the staffs.
5.Free samples marking of customer provided.

Samples

FAQ:
Q1.What's the guarantee for the product quality?
 We offer one-year free maintenance services for our customers. Generally speaking, our technician will figure out what the cause may be one the problems arise according to clients' feedback. Fault parts with the valid period will be replaced for free except for consumable parts.

Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.

Q3. What i need to do when the machine suffer trouble?
A: Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.

Q4. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.

Q5 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months

Q6: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.

Q7:Is it better to increase blow system to improve laser processing performance?
A: It works for some kind materials,it can stop firing

Q8: How long time does it take for a learning of the laser machine operation ?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation, You just need to do some simple tests on different processing materials to learn how to adjust the speed and laser power.

Q9: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.

Q10: Does it need to be connected by a laptop or computer ?
A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.

Q11:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.

Warmly welcome you visit our factory!!!
Warmly welcome you contact us directly for more information!!!

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.

Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.

We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.

Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
