| Price: | US $ 6000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Prod Model: | TSHY-160100II |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: | Glass CO2 Laser Tube |
| Cutting Area: | 1600*1000mm |
| Cooling Mode: | Water Cooling |
| Place Of Origin: | Wuhan, China (Mainland) |
| Laser Power: | 60W/80W/100W/130W/150W |
| Brand Name: | Taishun |
| Working Table: | Conveyor Working Table |
| Graphic Format Supported: | Ai, BMP, Dst, Dwg, Dxf, Plt |
| Driving System: | Stepper Motor |
| Optional: | CCD, Auto Feeding System |
1.Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
2.Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry

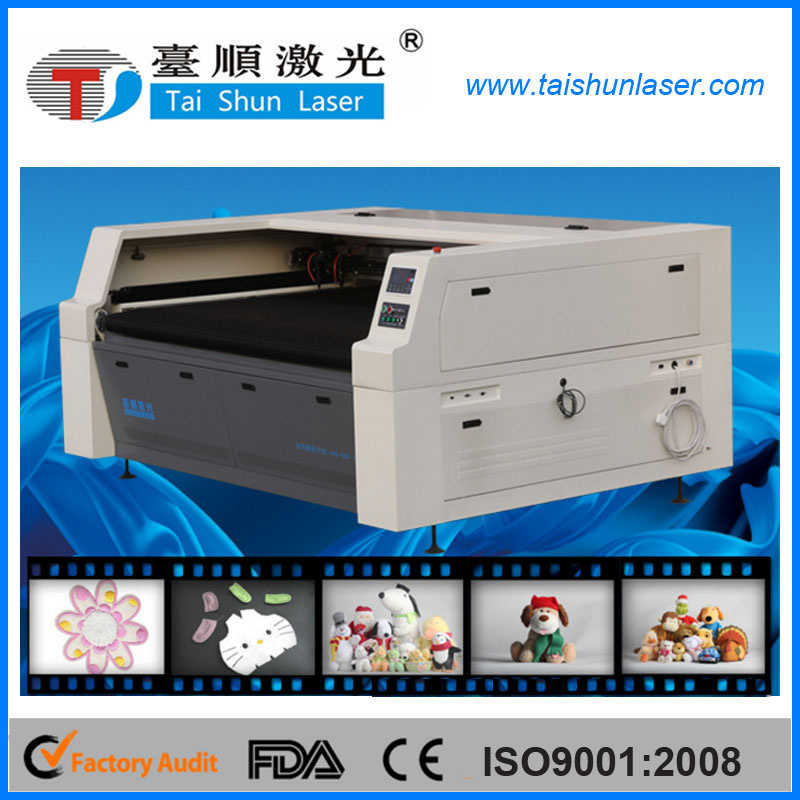

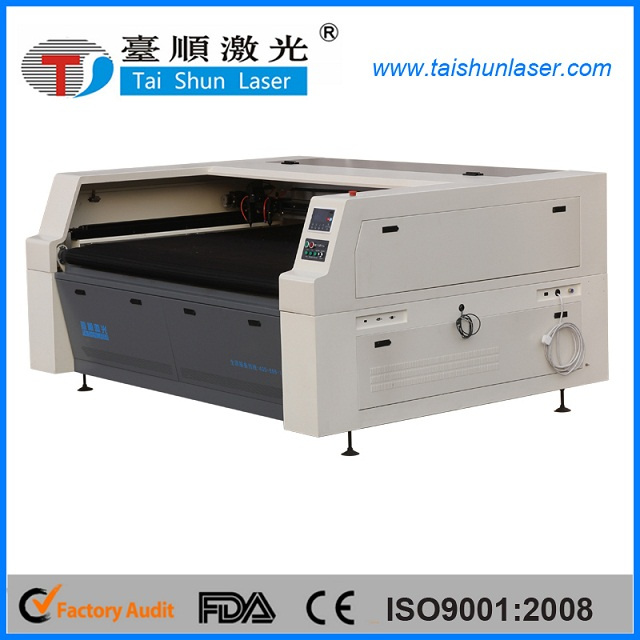

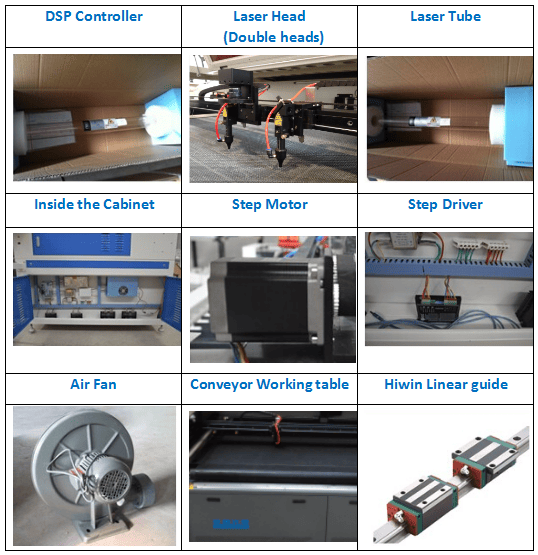

Standard Configuration for co2 laser cutting machine:
1) Working Area:1600*1000mm,this can be customized as your requirements
2) Laser power:60w 80w 100w 150w - you can choose RECI laser tube,working hours:8000-10000 hours
3) DSP control system - LDP panel with only a few buttons very easy to use
4) Conveyor worktable - with vacumme absoption function,keeping the fabric flatly on the working table,thus cutting more precisely
5) High resolution laser head.-good quality and long lifetime
6) Water pump-used for cooling laser tube to protect it has long life.
7) Air pump/Compressor.-cooling the laser head to avoid the materials being burned.
8) Exhaust fan - Blow away the smoke
9) USB cable-To connect the machine and computer.
10) Tool box-Included the CD,User manual,and some wrenches for your work.
Standard configuration for 3d laser cutting machine:
no | Item / Model | TSHY-160100II | customized is accepted |
1 | Working area | 1600 x 1000mm | |
2 | Laser power | 80W/100W/130W/150W Laser tube | |
3 | Engraving speed | 0 - 60000 mm/min | |
4 | Reposition accuracy | ±0.1mm | |
5 | Working voltage | AC110- 220V±10%,50-60Hz | |
6 | Consuming power | <1,000W | |
7 | Working temperature | 0 - 45°C | |
8 | Working humidity | 8 - 95% | |
9 | Minimum letter size | English :1 x 1mm Chinese:2 x 2mm | |
10 | Supported file format | BMP, HPGL, PLT, DST, DXP, and AI | |
11 | Driving system | Stepper motors | |
12 | Laser tube cooling type | Water pump | |
13 | Other auxiliary equipment | Air Fun | |
14 | Compatible software | CorelDraw AutoCAD Photoshop | |
15 | Laser tube type | Sealed CO2 glass laser tube: | |
16 | N.W/G.W | 600kg/750kg | |
17 | Consumable parts(Recommended) | 1.Extra laser tube 2.Extra 1 lens and 3 mirrors | |
1) The machine adopt advanced DSP control system which can continue and optimize the cutting speed, processing path, improve the working efficiency, the clearance compensation ensure the processing quality.
2) High compatibility, can support CAD, CORELDRAW, PHOTOSHOP etc and meet the industry need.
3) Multi-document function : the machine can store 256 files, the machine can still work without computer.
4) All optical isolate system and high speed differential input circuit design protect the signal from distorting and interferacing. the system realizes 12 kinds working state output and 16 kinds state input, and the machine can easy operation all over the world.
5) Reasonable design of laser line with industry water chiller, keep the same power-force on each spot, ensure the quality of cutting.
6) Double laser heads adopt the double linkage design, the distance between two heads can adust freely. the laser heads can work at the same time and respectively.
7) Widely used in advertising , LGP, model, clothes, leather industry, mainly used for engraving and cutting board, clothing, leather.
