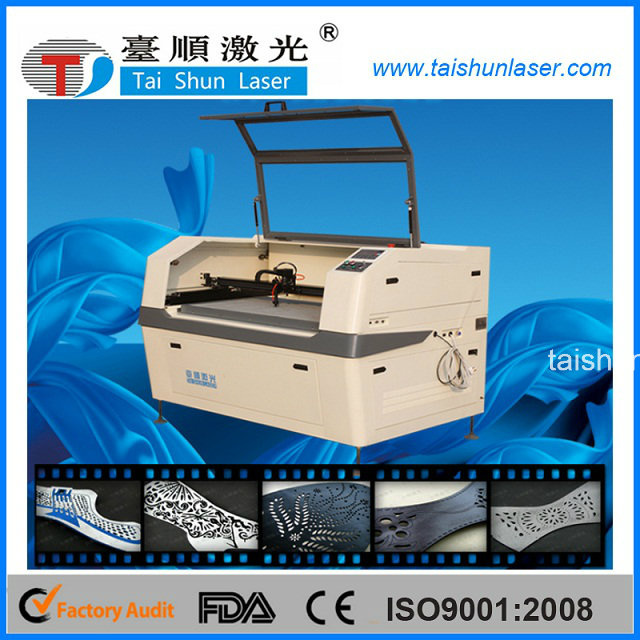

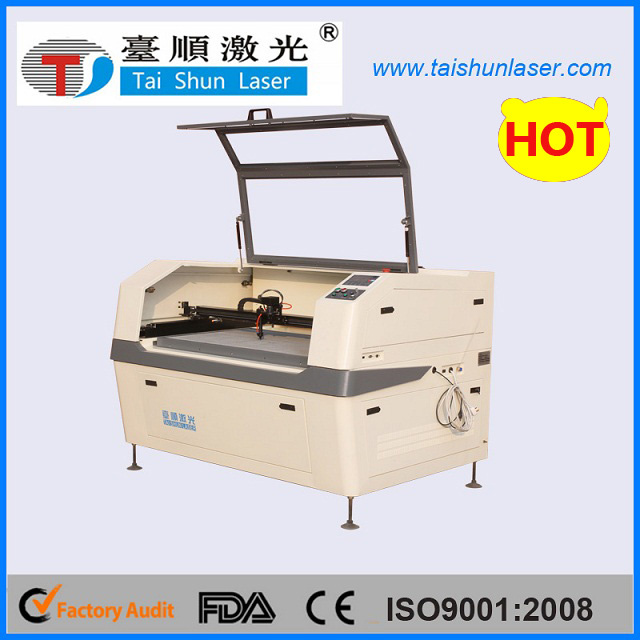

Crystal Acrylic Gift CO2 Laser Cutting Machine with Ce FDA

Product Specifications

Prod Model:	TSHY10060
Laser Type:	CO2
Application Area:	Laser Cutting
Application Material:	Fabric, Filtering, Leather, Rubber, Acrylic
Graphic Format Supported:	Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp
Power Supply:	AC220V+-5%50Hz
Moving System:	Single Side Servo System
Cutting Area:	1000mmx600mm
Output Power:	80W
Working Table:	Knife or Fixed Working Table
Guarantee:	One Year Free Maintenance

Product Description



Features:

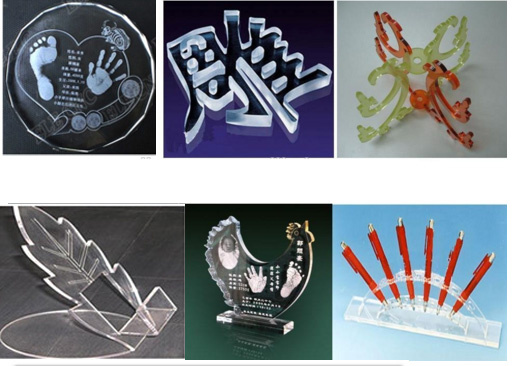

1,One machine,widely used for acrylic ,mdf,soft material cutting and engraving.
2, It's good to cut any shapes without fringe and sewing automatically.
3,Imported linear guide,ball screw,mirror and lens,we do high quality product to win long-term customers
4,The following-up fume extractor system is going with laser head to save power consumption and good fume chasing effect.
5, DSP control system support online and offline data transferring.
6, Built up a data base in computer to save space room for the cutting workshop

Technical parameter:

Laser type	Glass Co2 laser tube	Movement system	Servo system
Output power	80W	Cooling system	Water cooling
Working area	1000x600mm	Electrical Voltage	AC220V+-5% 50/60hz
Working table	knife working table	Supported file format	AI,BMP,PLT,DXF,DST,AI,BMP,PLT,DXF
Working speed	Adjustable	Standard accessories	2 set 550W exhuast fans
Position accuracy	plus minus 0.1mm	Optional accessories	100w,130w,150w laser tube,auto feeding system,water chiller

Application:
Laser cutter application: Suitable for cutting a variety of textile and industrial fabrics.
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.


Our machine series:
CO2 Laser Engraving and Cutting Machine for most of the non-metal materials.
Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.
Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm Mild Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )

FAQ:
Q1.What's the guarantee for the product quality?
 A:We offer one-year free maintenance services for our machines. Fault parts with the valid period will be replaced for free except for consumable parts.

Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.If problems in the process of operation,pls keep your lens and mirrors be clean ,then check your laser tube and talk details to us.

Q3. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.

Q4 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RF metal laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months

Q5: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.

Q6: Is it harmful to human body when in operation ?
A: It is not harmful, as long as avoid to see it directly

7:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.

Guarantee&After-sale service
1, Best components, perfect technics and strictly ex- factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.

Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
