Product Specifications
| Prod Model: |
TSM100WC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Applied Material: |
Plastic, Leather, Denim, ABS, MDF Plywood, Epoxy |
| Marking Range: |
600mmx600mm |
| Graphic Format: |
Ai, BMP, Pit, Dxf, Dst |
| Laser Power: |
100W |
| Tag Line Speed: |
7000mm/S |
| Repeat Accuracy: |
+0.003mm |
| Laser Repeat Frequency: |
20kHz-80kHz |
| Min Line Width: |
0.012mm |

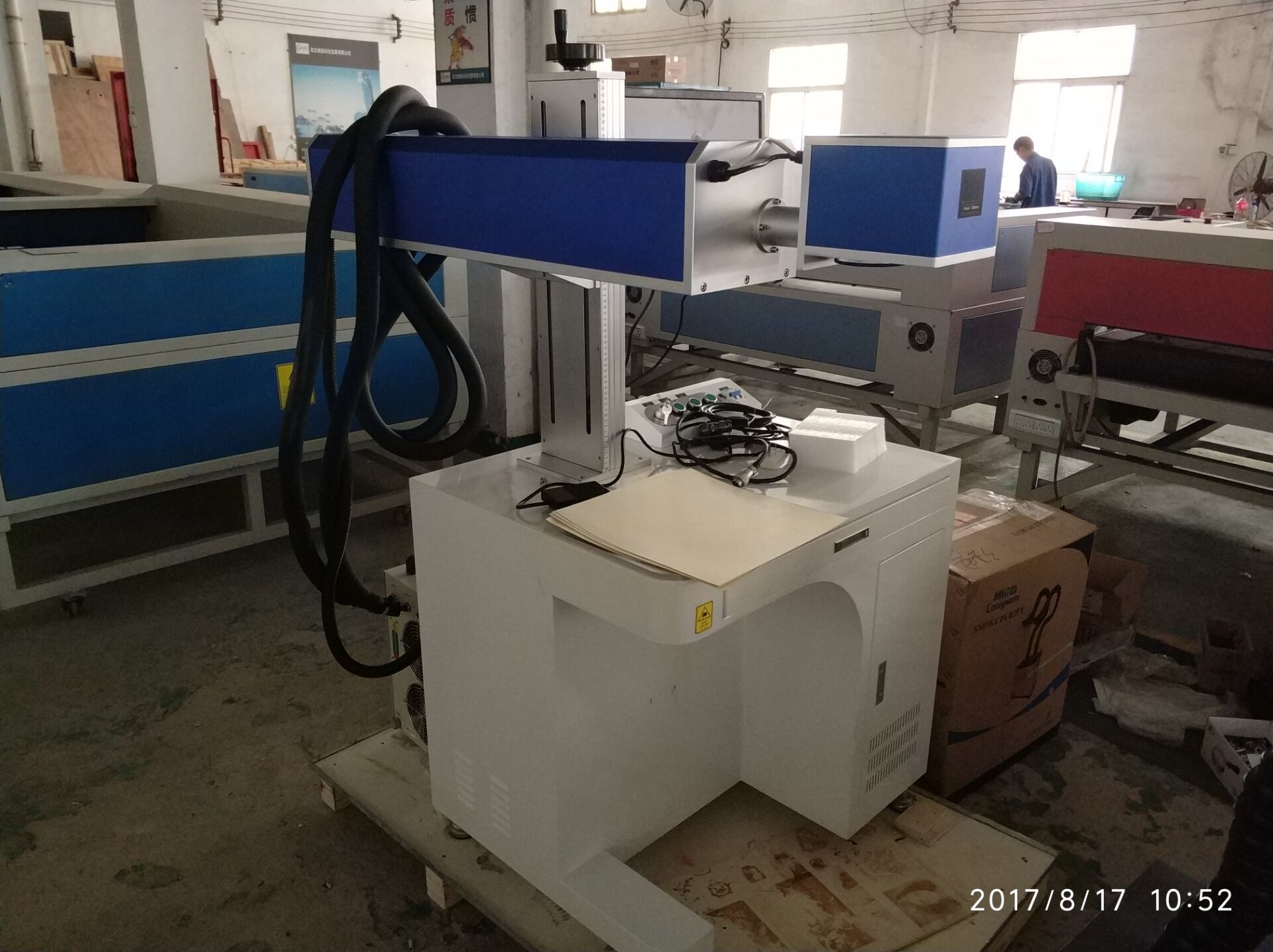

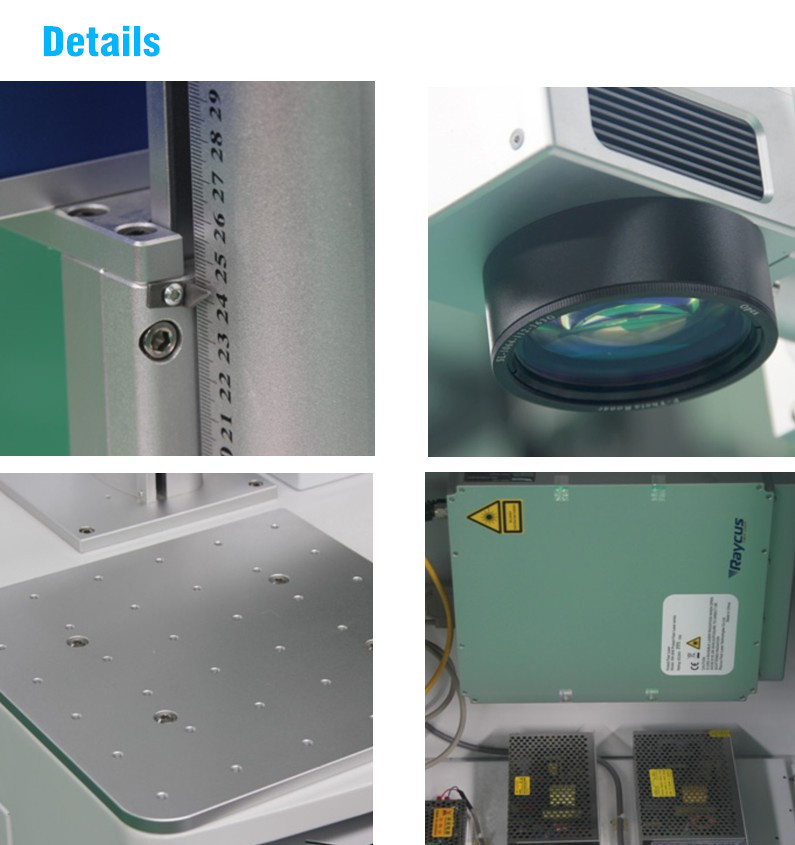

Product Description
Feature:(1)Imported CO2 laser source,galvo scanner fast scanning speed 7000mm/s.
(2) Applied for glasses,garments,wooden instruments,crafts and packing
(3) Closed laser route make sure the stable running process
(4) Easy to operate,enabling text,symbols,images,barcode,two-dimensional code
(5) Appled for most of the non-metal material such as acrylic,wood,fabric,cloth,paper,glass
Technical parameters:1, marking speed: max 7000mm/s adjustable;
2, marking depth: 0.01mm ~ 0.3mm, as materials;
3, the minimum line width: 0.012mm;
4, the minimum character: 0.15mm;
5, repeat accuracy: 0.003mm
6, laser power:100WRepairment tips:| Line# | Problems arised | Root cause | Solving method |
| 1 | No singal for power light | The power is off | Open the power button |
| The power line isn't connected | Connect the power line |
| The power is broken down | Change a new power indicator |
| 2 | No singal for the laser light | The laser light is broken down | Change a new power indicator |
| 3 | laser light is ON | The lens head is covered | take off the lens head |
| No laser beam | The power rate is too low | enhance the power rate |
| 5 | Laser light is off | | |
| No laser beam | no connection to the singal line | re-connect the singal line |
| 6 | Laser light is OK | laser light is broken | Change a new one |
| Laser light is Off | laser light is loose weld | weld the laser light |
| 7 | The etch is uneven | the workpiece is not in the field lens surface | Put the workpiece on the field lens |
| 8 | Some are clear but some are not for the texts,images | Marking surface is not paralleled with the field lens | adjust the workpiece |
| |
FAQ:Q1.What's the guarantee for the product quality?
We offer one-year free maintenance services for our customers. Generally speaking, our technician will figure out what the cause may be one the problems arise according to clients' feedback. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.
Q3. What i need to do when the machine suffer trouble?
A: Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q4. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q5 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q6: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.
Q7:Is it better to increase blow system to improve laser processing performance?
A: It works for some kind materials,it can stop firing
Q8: How long time does it take for a learning of the laser machine operation ?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation, You just need to do some simple tests on different processing materials to learn how to adjust the speed and laser power.
Q9: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.
Q10: Does it need to be connected by a laptop or computer ?
A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.
Q11:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.Please let us know following informations:1. What materials you want to mark?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. Where do you want to use them for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.
After sale services:
1.One year guarantee period for product quality.( Artificial damage is negotiable).
2.24hrs fast responses for customers' demand
3.Free training for machines installation and operation of the staff.
4.Free samples marking of customer provided.
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
