Product Specifications
| Prod Model: |
TSJ160100L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Tsj160100L |
| Laser Power: |
80W/100W/130W |
| Max.Marking Area: |
1800*1000mm |
| Cooling Way: |
Water Cooling |
| Laser Type: |
Glass CO2 Laser Tube |
| Movement System: |
Single Side Servo System |
| Position Accuracy: |
0.1mm |
| Guarantee: |
One Year |
Product Description
Applicable Materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,glass and other nonmetal materials.
Applicable industries:
Advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized embroidery and clipping, packaging and paper industry.
Parameter
| Laser type | Sealed CO2 laser tube |
| Laser power | 80W,100W,130W,150W,200W (optional) |
| Engraving speed | 0-60000mm/min |
| Resetting position accuracy | ±0.05mm |
| Working voltage | AC110-220V ±10%.50-60HZ |
| Power | <1,000W |
| Operating temperature | 0-45°C |
| Operating humidity | 5-95% |
| Minimum shaping character | English 1×1mm |
| Graphic format supported | BMP, PLT,DST, DXF,and AI |
| Driving system | Stepper |

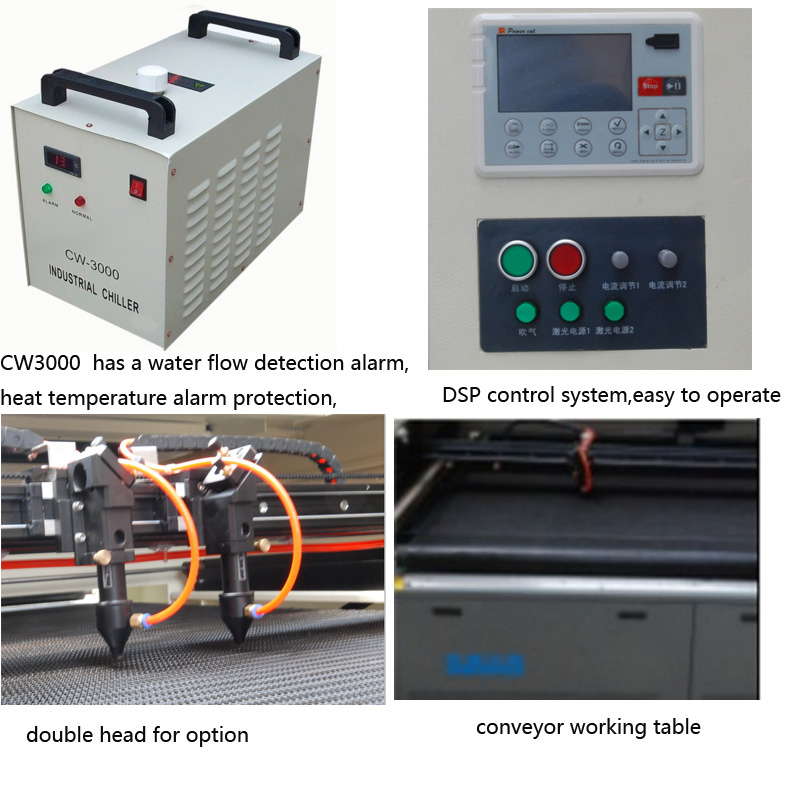

| Cooling mode | Water-cooling and protection system or choose industry chiller cw3000 cw5000 |
| Auxiliary equipment | Exhaust-fan, air-exhaust pipe |
| Controlling software | DSP control system |
| Compatible software | Coreldraw auto CAD photoshop |
Samples
Configuration
Our machine series:
CO2 Laser Engraving and Cutting Machine for most of the non-metal materials.
Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.
Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm Mild Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )
Full services
1. service before sales: our salesman will get a full knowledge of your requirement and supply a most suitable scheme for your product. Order detailed checked and confirmed by an official procedure
2. service during production: we will send photos of machines during production.In this way customers can get updated about status
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the any mistakes arisen
4. service after shipping: we will seed the shipping documents to you accordingly and send a shipping advice about the ETD and ETA about the goods.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some
customers have question about it. we will have professional technician to help them to install and
teach how to use through skype ,calling, video or mail.
7. service of warranty: we offer 1 year warranty for whole machine. if any parts of our machine
is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easily and have a good experiences during the process of operation
If customers have any problems of machine in 2 or 3 , 5 years , they can contact us .
Guarantee&After-sale service
1, Best components, perfect technics and strictly ex- factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
