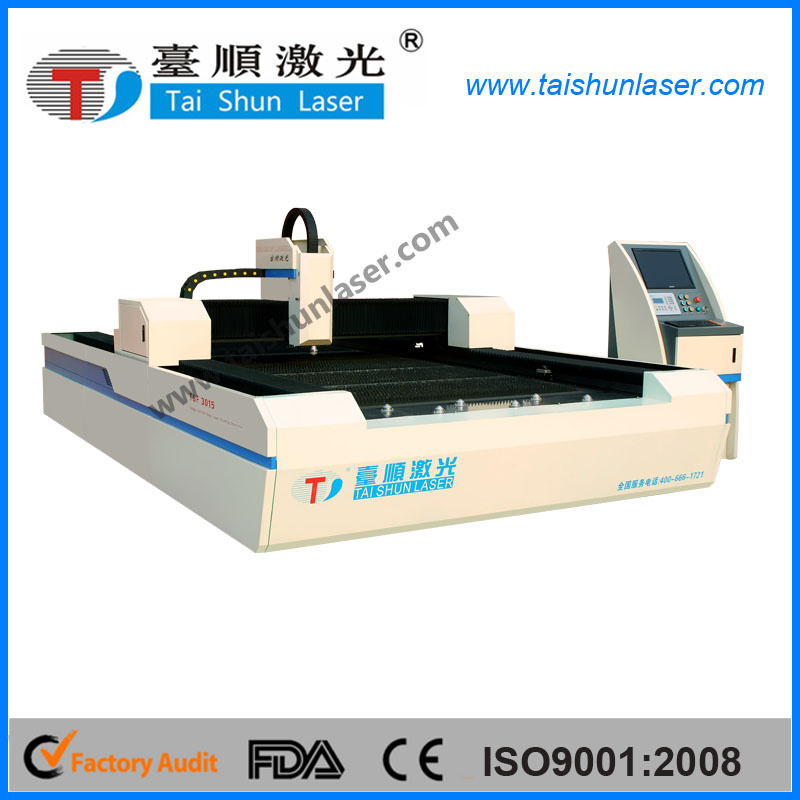

Product Specifications
| Prod Model: |
TSGX300150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
Fiber Laser |
| Model No: |
Tsgx300150 |
| Laser Power: |
500W 700W 1000W |
| Max.Marking Area: |
3000*1500mm |
| Max.Cutting Speed: |
18m/Min |
| Cutting Thickness: |
0.2-5mm |
| Controlling System: |
Servo System |
| Position Accuracy: |
0.05mm |
| Minn Line Width: |
<0.12mm |
| Whole Power: |
<11kw |
Product Description
>>>Features:
1 Optimized CNC control system for cutting precisely
2 Wide working format for virious metal plates cutting
3 Easy constructure, easy to operate, low use cost
4 The cutting edge is smooth, no need of post-treatment
5 Fast cutting speed with high working efficiency
6 Endure 10hrs working time
>>>Fiber Cutting advantages:
(1) Fiber laser cutting machine is for metal precise cutting powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1, 064nm). The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.
(2) The efficiency of a fiber laser on a large extent exceeds traditional YAG or CO2 laser. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal been cut.
(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100, 000 hours of continuous or pulsed operation.
(4) Taishun Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.
>>>Machine's main technical data
| Model | TSGX150300 | TSGX150300H |
| Laser Power | 500W | 1000W |
| Laser Source | World Famous USA SPI / USA IPG Fiber laser source |
| Laser Type | Import Fiber Laser | Import Fiber Laser |
| Working Area | 3000mm×1500mm | 3000mm×1500mm |
| X axis Stroke | 3000mm | 3000mm |
| Y axis Stroke | 1500mm | 1500mm |
| Z axis Stroke | 150mm | 150mm |
| Cutting Thickness | 0.2-5 mm | 0.2-12 mm |
| (Carbon Steel) |
| Max. Cutting Speed | 20-30 Meter / Min (Up to materials) |
| Transmission Method | Ball Screw Transmission | Ball Screw Transmission |
| Table-driven system | Japanese Famous Kawasaki | Japanese Famous Kawasaki |
| servo motor & driver | servo motor & driver |
| Focus Method | Auto focusing | Auto focusing |
| Location precision | ≤±0.05mm | ≤±0.05mm |
| Re-location precision | ±0.02mm | ±0.02mm |
| Max. moving speed | 100m/min | 100m/min |
| Supporting Format | PLT, DXF, BMP, AI | PLT, DXF, BMP, AI |
| Power demand | 380V/50Hz | 380V/50Hz |
| Worktable max. load | 750KGS | 800KGS |
| Control Method | Offline Movement Control | Offline Movement Control |
| Control software | Taishun Laser Professional Laser Cutting Software | Taishun Laser Professional Laser Cutting Software |
|

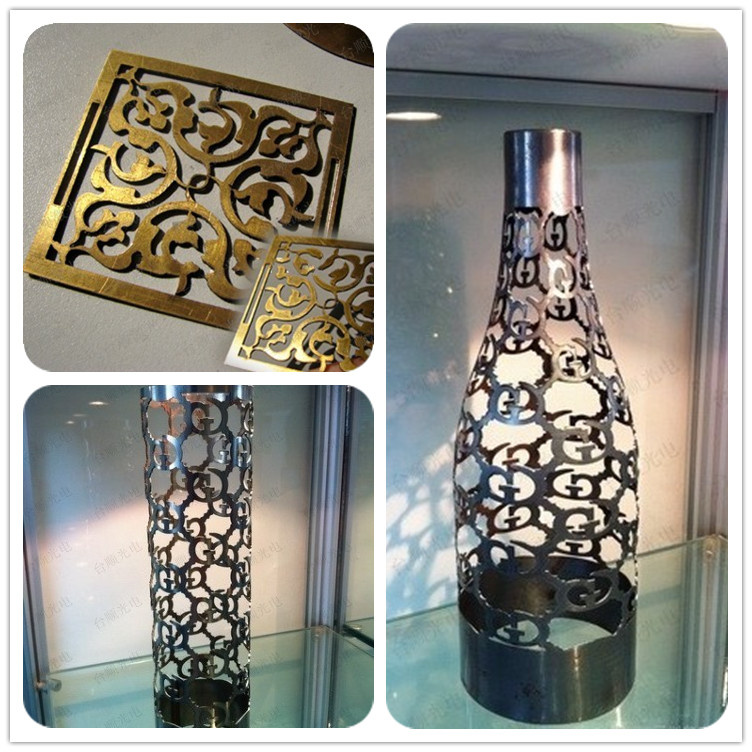

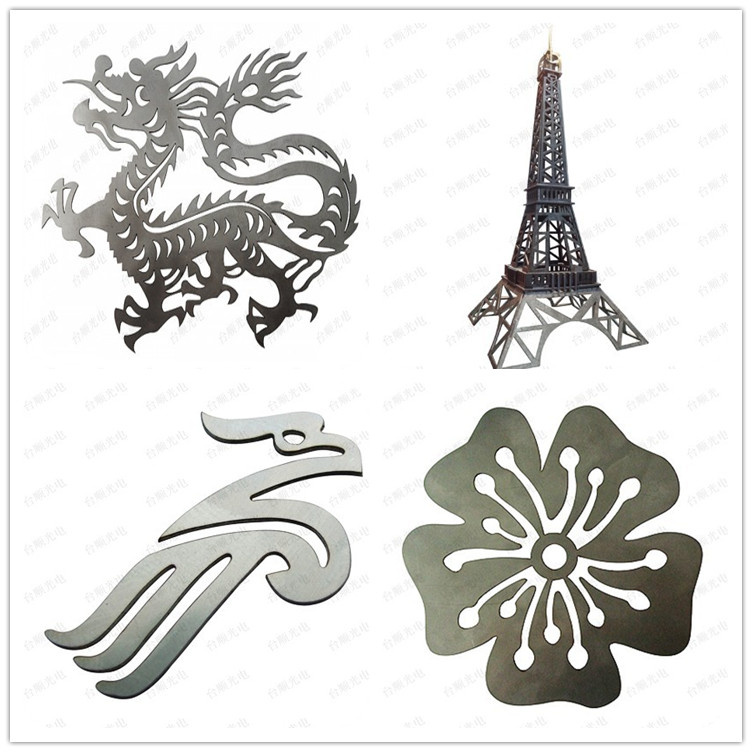

Samples
>>>After-Sales Service & Warranty
1. One year guarantee period for product quality. (man made damaged is negotiable).
2. Lifelong maintenance and spare parts supply.
3. Free design of fixtures as customers required.
4. Free training for machines installation and operation of the staffs.
5. Free samples marking of customer provided.
Application industry
The fiber laser cutting machine can be widely used in aerospace, aviation, electronics, elevators, medical equipment, kitchen electrical, auto parts, electrical equipment, gold plated chassis cabinets,mechanical equipment,lighting hardware,advertising signs, display equipment,all kinds of metal products, sheet metal cutting processing and other industries.
Order notice
Please let us know following informations:
1. What materials you want to cut?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials?
4. After cutting, what will be the metal used for?
5. Are you an end user or retailer?
According to your above information, we'll recommend the most suitable machine to you.
Watch more video:
Https: //www. Youtube. Com/watch? V=xs_Im20mv6g carpet cutting
Https: //www. Youtube. Com/watch? V=GbkX77rZW_Q labels engraving
Https: //www. Youtube. Com/watch? V=DOUXxajO3_w insole engraving
Https: //www. Youtube. Com/watch? V=hPIgjdvG_GY fiber cutting metal
Warmly welcome you visit our factory! ! !
Warmly welcome you contact us directly for more information! ! !
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.

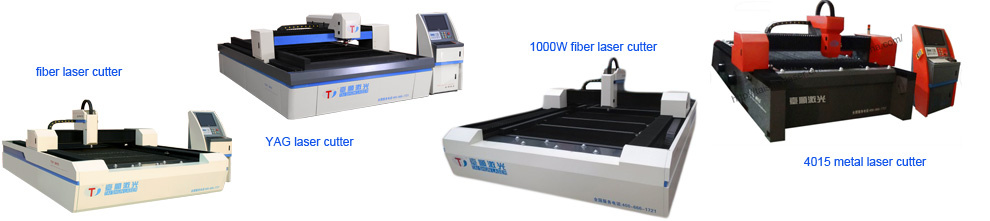

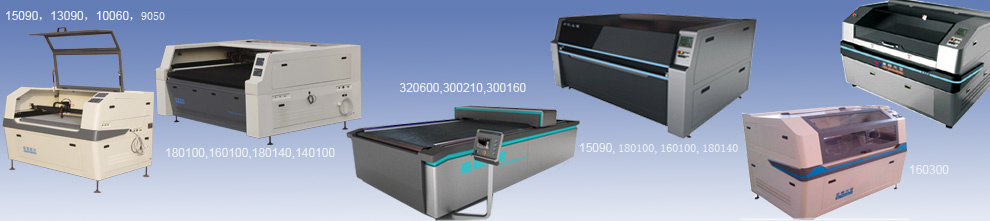

We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
