| Price: | US $ 3500-5500/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |

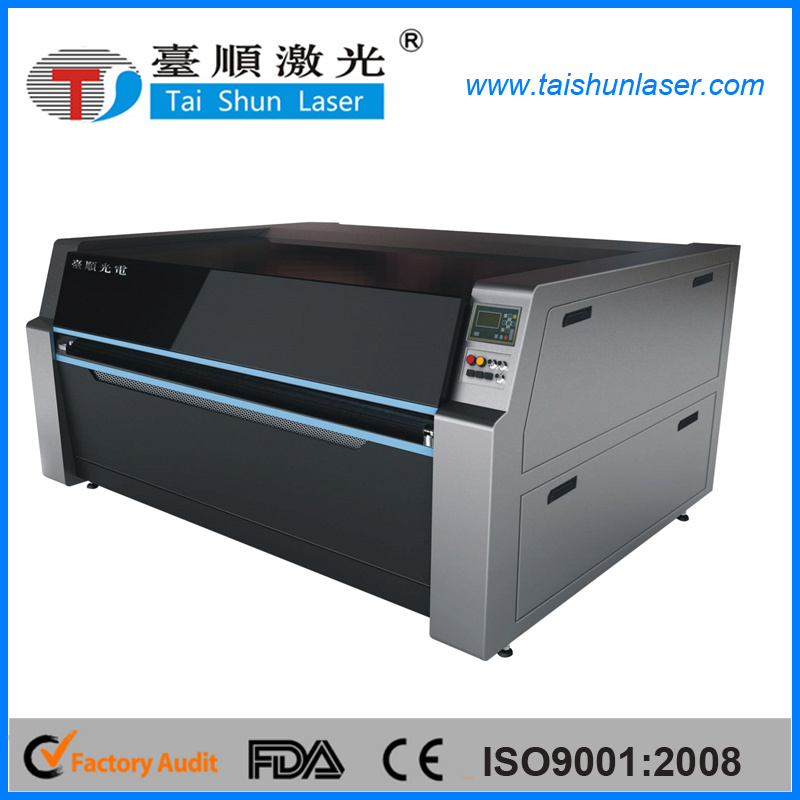

| Prod Model: | TSPJ160100L |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: | CO2 Glass Tube |
| Application Area: | Car Carpet, Plush Toys, Home Textiles, Garments |
| Application Material: | Fabric, Rubber Acrylic Wood Crystal, Leather |
| Power Supply: | AC220V+-5%50Hz |
| Graphic Format Supported: | Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: | 1600X1000mm |
| Output Power: | 80W |
| Cutting Speed: | Adjustable |
| Working Table: | Conveyor Working Table |
| Guarantee: | One Year Free Maintenance |
| Working size: | 1600mmx1000mm | Smaller size 210300,160300 are for optional |
| Laser power: | 80W | 100W,110W,130W,150W available |
| Laser tube: | RECI laser tube | Domestic Weiju laser tube for optional |
| Engraving speed | 0-1000mm/s | adjustable |
| Cutting speed: | 0-800mm/s | adjustable |
| Repeating location: | ±0.1mm | |
| Resolution ratio: | 0.025mm | |
| Minimum shaping character | English Letters 1 x 1mm | |
| Highest scanning precision | 2000DPI | |
| Laser output control | 1-100% software setting | |
| Control system | DSP control system,Ruida control software | |
| Interface | USB | |
| Software supported | Coreldraw Phototshop ,Autocad output | |
| Support graphic format | DST, PLT, BMP, DXF AI,CDR | |
| Cooling system | water-cooling and protection system | industrial Chiller |
| Driving system | Stepper motor | |
| Exhaust system | exhaust fan and air pump | |
| Offline work: | support | |
| Working voltage: | AC220V+/-5% 50/60HZ | |
| Operating temperature: | 0-45°C | |
| Operating humidity: | 5%-95% free of condensed water |

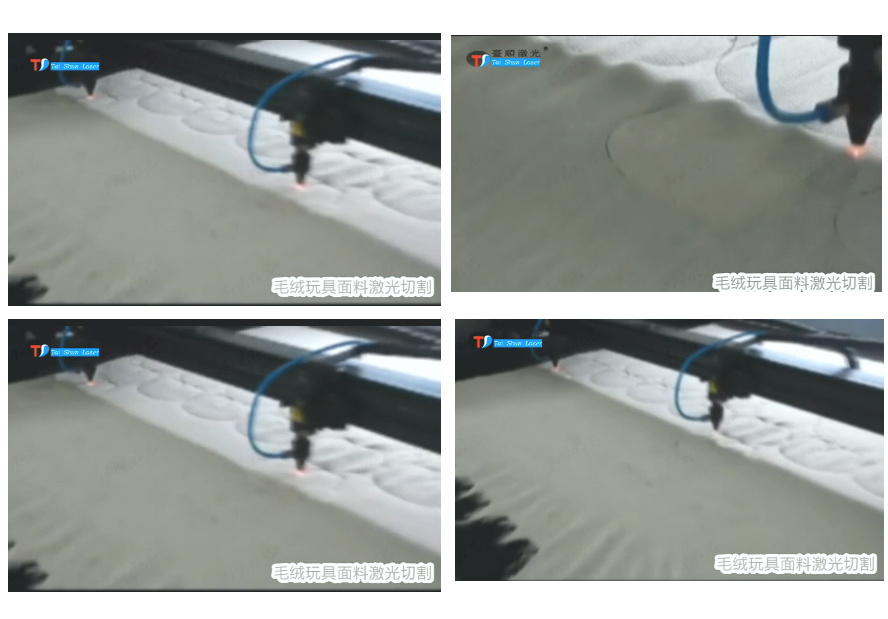

Video address:http://v.youku.com/v_show/id_XNTUxMDk3MTIw.html?from=s1.8-1-1.2 four head cutting plush toy material
Our product range
Working area:9050,10060,13070,13090,15090,160100,180100,140100,180140,160300,130250,210300,320600
Laser power:40w,50w,60w,80w,100w,110w,130w,150w,lifetime 4000h
Please note the same format(working area)machine can be stored with different powered laser tube,the price is based on working format and laser power at the same configuration
FAQ:
Q1.What's the guarantee for the product quality?
A:We offer one-year free maintenance services for our machines. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.If problems in the process of operation,pls keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q3. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q4 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RF metal laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q5: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.
Q6: Is it harmful to human body when in operation ?
A: It is not harmful, as long as avoid to see it directly
7:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.
Our machine series:
CO2 Laser Engraving and Cutting Machine for most of the non-metal materials.
Laser Marking Machine fiber laser marker for meta tag,hardware,circuit board,machinery,plastic marking of barcode,symbol,texts,;CO2 laser marker for nonmetal (fabric,leather,textile,PU,paper,cardboard,PVC,etc) of barcode,images,floral,flying dynamic marking effects.
Metal laser Cutting Machine:YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm carbon Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )
Demo video
https://www.youtube.com/watch?v=xs_Im20mv6g carpet cutting
https://www.youtube.com/watch?v=GbkX77rZW_Q labels engraving
https://www.youtube.com/watch?v=DOUXxajO3_w insole engraving
https://www.youtube.com/watch?v=hPIgjdvG_GY fiber laser cutting metal
https://www.youtube.com/watch?v=KJ4UGkaCjkk fiber laser cutting machine
https://youtu.be/5PgXtVNajn4 large format fabric cutting
https://youtu.be/L6Rz6L3UaXY embroidery applique cutting
https://youtu.be/uy6NRT4HsrU MDF laser cutting
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you
.
