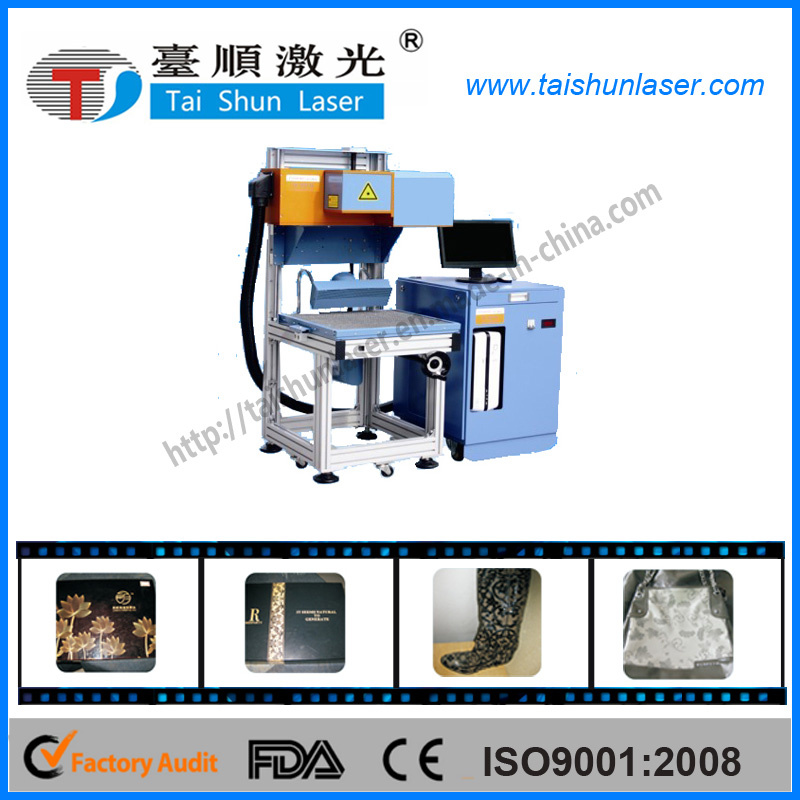

Product Specifications
| Prod Model: |
TSM30WC |
| Model No: |
Tsm30wc |
| Laser Power: |
10W/30W/60W/100W |
| Max.Marking Area: |
110*110mm |
| Cooling Way: |
Air Cooling |
| Guaranty: |
One Year Free Maintanence |
| Certification: |
Ce SGS FDA ISO,CCC |
| Marking Depth: |
<2mm(Determined by Material) |
| Marking Speed: |
7000mm/S |
| Min Linear Width: |
0.15mm |
Product Description
>>>Application industryMaterials: Most nonmetallic materials, such as leather, cloth, wood, bamboo, paper,
Organic materials ect.
Industry: Glasses, leather products, garment, wooden products, crafts gifts, packaging.
>>>Feature1. Laser tube: Adopts USA Coherent RF metal laser tube which is characterized by high power,excellent performance and long life <20k hours>.2. Laser optic system:sealed and maintenance-free laser optic system with key components imported from USA or UK,put into production after installation3. Marking characteristic :High-precision and high-speed with efficiency 20% higher than a normal one4. Water cooling system makes it work more stable with longer service life.5. Rotary worktable system :optional,for marking on a cambered or curved surface for articles such as pen,ring,oven cup,etc6. With mirror marking function.7. Friendly WINDOWS interface, compatible with files output from software such as CORELDRAW,AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX,TTF font.>>>Technical parameters
Machine Type |
Non-metallics CO2 Laser Marking Machine |
Machine Model |
TSM30WC |
Laser Output Power |
10W |
30W |
60W |
100W |
Laser Type |
American RF CO2 Laser Tube |
China Glass Laser Tube |
Laser Tube life Time |
45000+ hours |
1500~3000 hours |
Standard Working Area: |
110mm×110 mm |
Optional Working Area: |
70mm×70mm, 175mm×175mm |
Marking Depth: |
0.01~0.3mm |
Marking Speed: |
7000mm/second |
Repeated Accuracy: |
0.01mm |
Laser Wavelength: |
10.64um |
Minimum Line Width: |
0.015mm |
Power Supply: |
380V/220(50Hz-60Hz) |
Machine Power: |
2KW |
Dimensions
(L×W×H) |
Laser Optical System |
240×1280×1200 (mm) |
Control Cabinet |
590×560×800 (mm) |
Water-cooling System |
540×700×900 (mm) |
>>>What's the strength of Dynamic CO2 laser machine?1 Compared with 2D laser marking technology,there is no strict request for the flatness of the workpiece,3D dynamic laser marking can mark much more patterns on curved surfaces2 Customized the effect customers want to realise3 3D dynamic laser marking machine has larger lens in x y axis,thus can make wider laser beam,marking larger range 4 Faster marking speed than 2D laser marking machine,more widely used. >>>samples

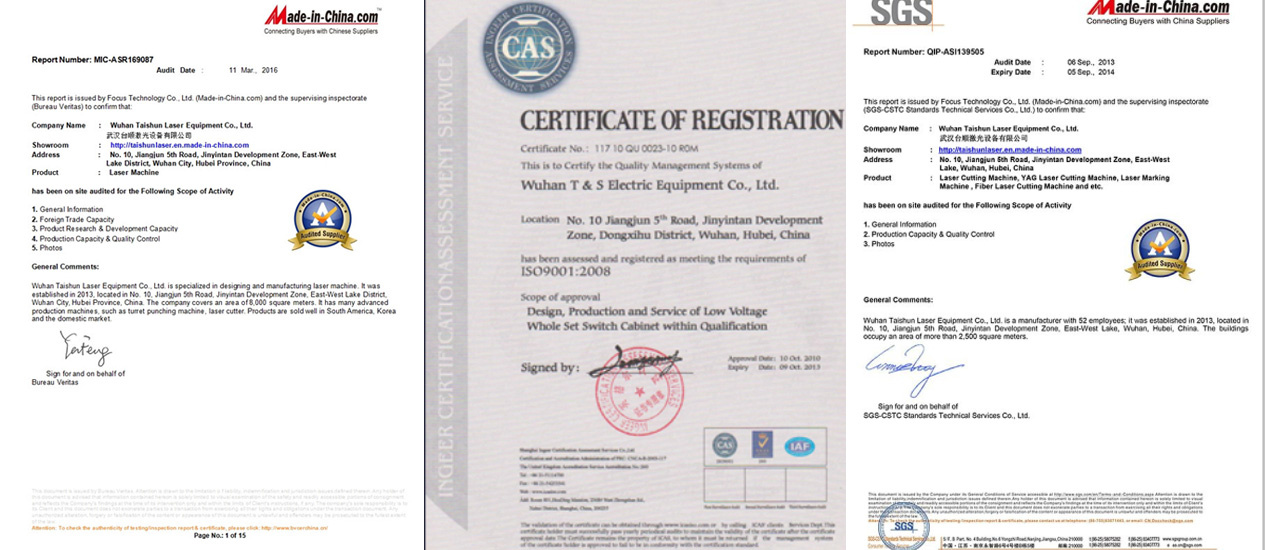

>>>Certificates
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
