Product Specifications
| Prod Model: |
TSGX103050p |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Applied Material: |
Plastic, Fabric Leather MDF Plywood, Epoxy |
| Marking Range: |
100mmx100mm |
| Laser Power: |
10W 30W 50W |
| Graphic Format: |
Ai, BMP, Plt, Dxf, Dst |
| Tag Line Speed: |
<7000mm/S |
| Repeat Accuracy: |
+0.003mm |
| Laser Repeat Frequency: |
20kHz-80kHz |
| Min Line Width: |
0.012mm |
| Laser Tube Brand: |
Beijing Reci |
| Design Software: |
Coreldraw, Photoshop, CAD, etc |
Product Description

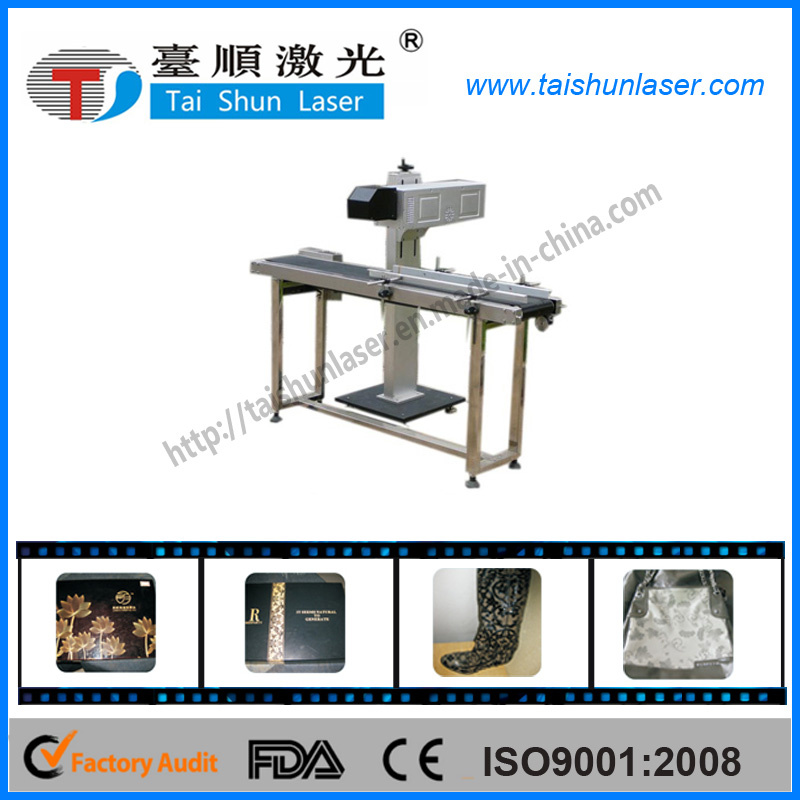

Feature:1. CO2 laser source, free of maintenance, servicetime up to 450,000 hours.
2. High speed galvo scanner (Made in Germany or China,optional for choice)
3. Higher precision,faster speed,Easy to Operate by first trial with manual
4 Air cooling,low power consumption.
5. Red light preview, focusing on the marking position before marking
7. Up and Down Lifter laser head work table easy to marking engraving different workpiece .
8. Rotary attachment optional, can engrave and mark inside and outside for jewellery,pen,crafts,cup,etc
9. High temperature resistance, good for marking medical equipment etc that requires sterilization
10. Permanent & fine marking quality, widely use in jewelry, mobile phones, and other high value items.
Applied tips:
1, Marking content: any text or icon in English, Arabia digital, serial number, VIN number, two-dimensional code, logos, etc.;
2, Character arrangement: horizontal, inclined, arc, arbitrary permutation;
3, Any optional font;
4, The character size, spacing can be adjusted freely;
5, Applicable materials: fabric,textile,plastic,rubber,acrylic,leather, ceramic, wood,etc

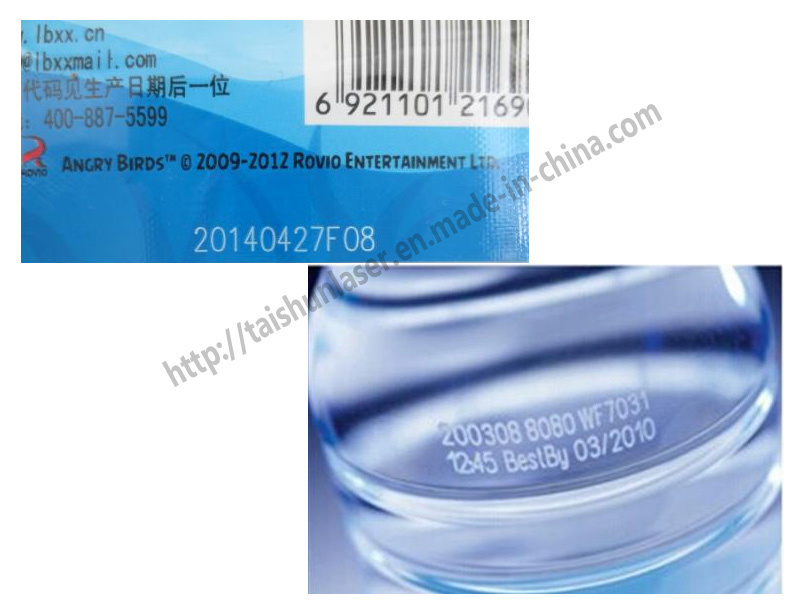

Example:Marking production for bottle
10W:two line10texts date for 7000pcs bottle marking production line
30W:two line10texts date for 15000pcs bottle marking production line
50W:two line10texts date for 30000pcs bottle marking production line
Guarantee&After-sale service1, Best components, perfect technics and strictly ex factory inspection.
2, 1 year guarantee for whole machine.
3, 24 hours (all days) technical support by call ,e-mail, skype or computer
remote control service by engineer.
4, Multi-language software, operation CD and detailed User Manual together with machine.
5, We offer free training in our factory, engineer oversea service is available if you like.FAQ:Q1.What's the guarantee for the product quality? We offer one-year free maintenance services for our customers. Generally speaking, our technician will figure out what the cause may be one the problems arise according to clients' feedback. Fault parts with the valid period will be replaced for free except for consumable parts. Q2. Is it easy to operate for the new user ?A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.
Q3. What i need to do when the machine suffer trouble? A: Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us. Q4. How to maintain the machine?A: After 3 hours working, it's better close 10 minutes. B, Keep lens and mirrors clean. C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze. Q5 .How about the life-span of the laser tube ?A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10000hours),It depends on your usageFor example, if it works 8 hours per day, the detailed data as follows:1, If you set the power at 20%-30% of the total power, the service life is about 1-2years2, If you set the power at 40-50% of the total power, the service life is about 1 year3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months Q6: How can I know the power of the laser tube has been exhausted?A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color. Q7:Is it better to increase blow system to improve laser processing performance?A: It works for some kind materials,it can stop firing Q8: How long time does it take for a learning of the laser machine operation ?A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation, You just need to do some simple tests on different processing materials to learn how to adjust the speed and laser power. Q9: Is it harmful to human body when in operation ?A: It is not harmful, as long as the laser don't direct shoot the skin and eyes. Q10: Does it need to be connected by a laptop or computer ?A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems. Q11:How to distinguish laser tubes with different powers and applications?A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)2. Laser tube diameter(relatively speaking, the thicker,the stronger)3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.Order NoticePlease let us know following informations:
1. What materials you want to mark?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. Where do you want to use them for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
