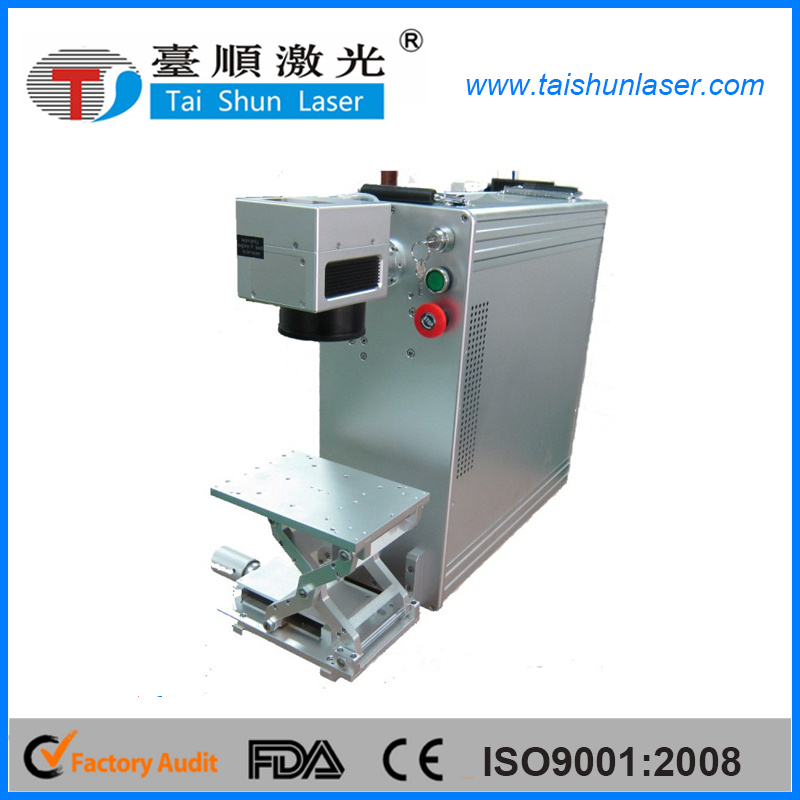

10W 20W 30W 50W Fiber Laser Marking Machine for Bearing

Product Specifications

Prod Model:	TSM30WF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Laser Type:	Fiber Laser
Model No:	Tsm30wf
Laser Power:	10W/20W/30W
Max.Marking Area:	110*110mm
Cooling Way:	Water Cooling
Marking Depth:	0.01~1mm
Minimum Character:	0.15mm
Engraving Speed:	0-7000mm/S
Minimum Line Width:	0.01mm

Product Description

10W 20W 30W 50W Fiber Laser Marking Machine





>>>Key Features:

· Fiber laser marking system adopts high quality fiber laser and high speed galvanometer scanner.
· No maintenance laser source, service time for more than 100, 000hours.
· High precision & faster speed (7000mm/s)
· Compact design, easy operation, low power consumption
· No consumable parts
· Air cooled
· The quality of output beam is much better than that of the traditional solid marker
· Up/down lifter with scale & up/down worktable, easy to mark on different pieces
· Rotary attachment optional, engrave/mark inside and outside ring jewelry, pen, cylinder workpiece

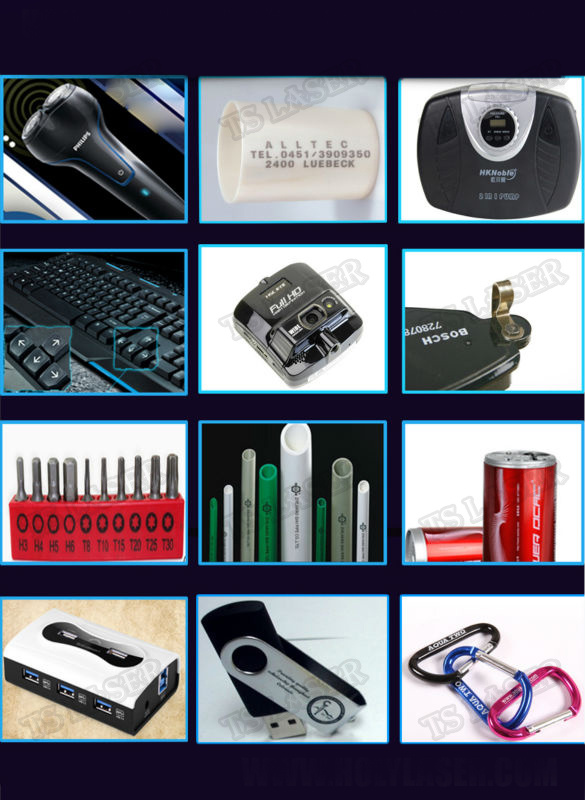

>>>Application Materials:

· Many type of Metals: Gold/ Silver/ Stainless steel/ Copper/ Aluminum/ Chrome plated brass etc.
· Alloy & Metal oxides: Anodized Aluminum
· Electrical parts and components
· Mobile (Cover/ Battery/ Keyboard)
· Jewelry (Ring/ bracelet), Eyeglass, Clocks and crafts
· Building Materials: PVC pipe
· Car Motor, Car spare parts
· Instrument and meters, Cutting tools
· Plastic case
· Hardware fitting and accessory
· Sanitary appliance
· Medical Instrument
· Some Non-metal materials & Special surface treatment: Silicon wafer, Ceramics, Plastic, Rubber, ABS, Printing ink, Plating, Spraying, Coating film





>>>Technical Parameters:


Laser Generator Brand	IPG	IPG	IPG
Laser Power(W)	≥10	≥20	≥30	40W 50W optional
Galvo Marking Speed	≥7m/s	≥7m/s	≥7m/s	Max 9m/s
Marking Area	110mm	110mm	110mm	175mm optional
Marking Focus	180mm	180mm	180mm
Marking Content	Vector, bar code, a variety of fonts, photos, and other formats
Marking Mode	Static state and dynamic state
On-line Speed	≤120m/min			Depends on marking content
Operating Temperature	5-35°C
Operating Humidity	Relative humidity is less than 95%, No condensation
Structural Materials	Good-quality aluminum alloy, stainless steel
Edit Mode	Computer software to edit
Communication Interface	USB, RS232 interface
Power Supply	AV220V/50Hz
Rated Power	500W	800W	1000W
Optional Accessories	Sensor, On-line detection speed encoder, rotary marking, equipment cabinet, laser generator support			Foot switch

1. Fiber laser with 100, 000 hours long service time
2. According to different material and precision, 70*70mm, 110*110mm, 150*150mm different working area for optional

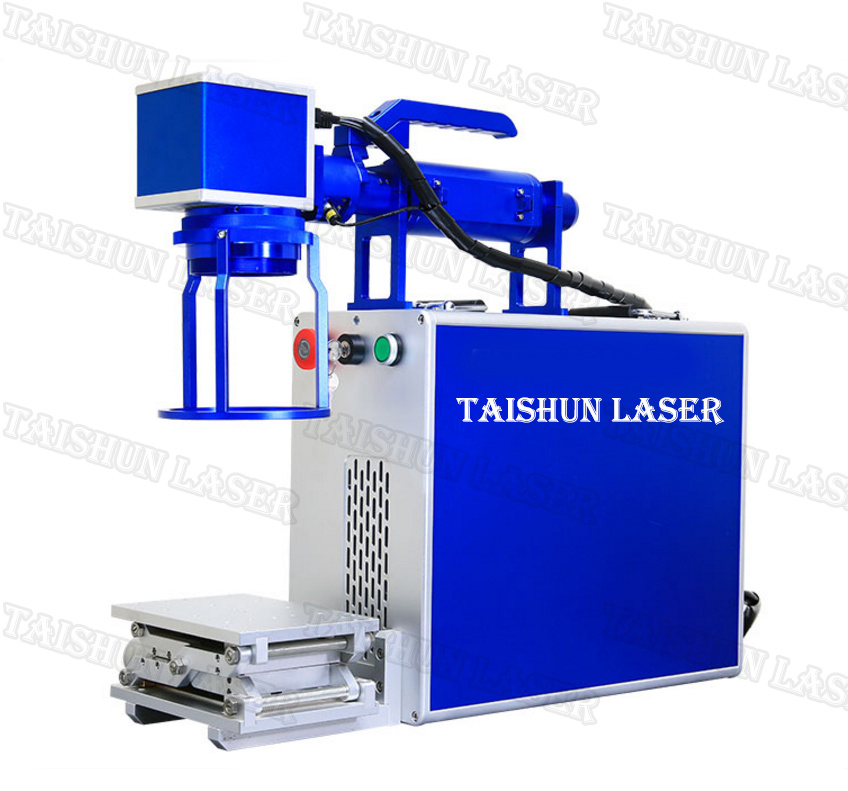

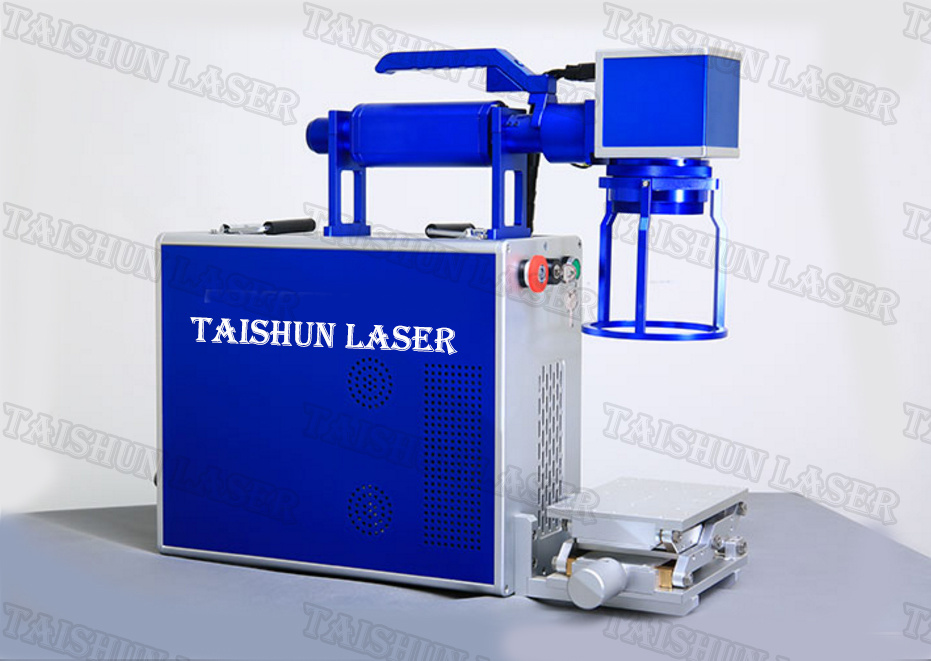

3. Portable mini structure, easy to carry and fix, small volume, low freight cost
4. Red light preview: Visible laser beam position
5. Air cooling: Convenient and save cost

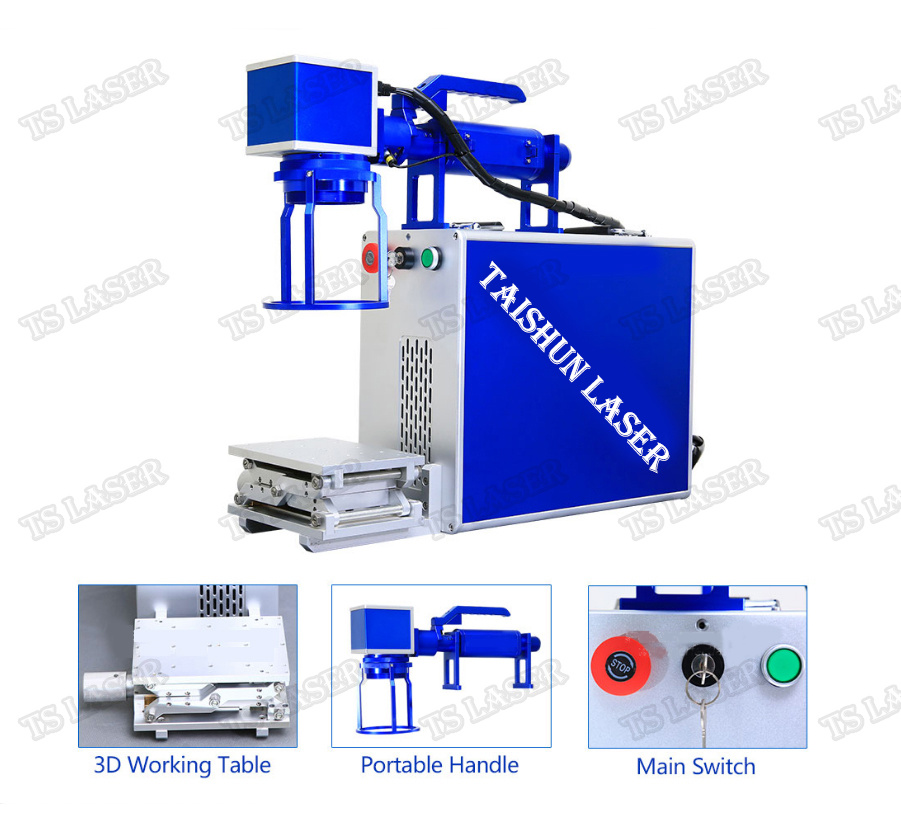

6. Up & down worktable: Equiped with micrometer, improve working precision
7. Foot-switch equipped: Improve woring effciency
8. Support many format file: PLT, PCX, AI, DXF, BMP, JPG etc
9. English system
10. High quality JCZ control card


>>Packing details

All the machine will be packed with standard plywood case to ensure transportation safety.
All the machine spare parts were covered by some soft materials to avoid the machine were damaged in the delivery process.
The outmost is plywood case with fixed framework.
The bottom of the plywood case has firm iron jack, convenient to handling and transport.



FAQS:

1. Do your machines get any certificates?
Yes, CE for EU market, FDA for USA market.

2. What's the guarantee, in case the machine breaks down?
1 years' quality warranty. If machine breaks down, generally speaking, our technician will figure out what problem it is based on clients' feedback. Parts (excluding the consumable parts) shall be replaced for free If there is any problems during warranty period.

3. How to pay to you?
30% deposit, 70% balance paid before delivery by T/T is prefer; Small amount with PayPal is also acceptable.

4. How long is the delivery time?
For standard machine, it would be 4 - 6days. For non-standard/customized machines according to clients' specific requirements, It would be 20days.

5. Do you arrange shipment for the machines?
FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.

6. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.

7. How is the packing?
3 Layers package -- (Water-proof plastic film+ Foam board protection + Solid seaworthy wood box)
