Wood, MDF, Plastic, Stone, Metal, 1325 CNC Router Machine
| Price: |
US $ 5000-8000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
1300*2500 |
| Guild Rail: |
Hiwin Square Rail |
| Ball Screw: |
PMI, Taiwan |
| Drive Mode: |
Stepper |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
Product Description
1325 CNC Router, woodworking engraving machine from professional CNC router machine manufacturer.Feature:1. Mode: DT1325
2. It is a unique design for relief and wood cutting machine, high accuracy, fast speed,
fully meet the requirements of carving patterns or designs on woodwork and
cutting. Lathe bed for large rectangular pipe welding, guide bearing surface stability.
rack drive, stable moving, high-speed operation for a long time without deformation
and shake.
3. Internationally advanced NC studio system which have memory of breakpoint can
guarantee resumption of processing in case of incident (breaking) or of work of the
previous day.
4. Good Y axis and dust-proof structure to ensure that the machines longer service life.Application:1. Woodworking industry: Three-dimensional wave board processing, cabinet door,
craft wooden door, folding screen, process window milling shape carved furniture
products.
2. Advertising industry: Advertising signs, PVC board, chevron board, double color
boards, logo making, acrylic cutting, plastic molding, characters, crystal cutting,
plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape literally
cut, blister light boxes mould
3. Arts and crafts industry: In the wood, bamboo, marble, organic board, double color

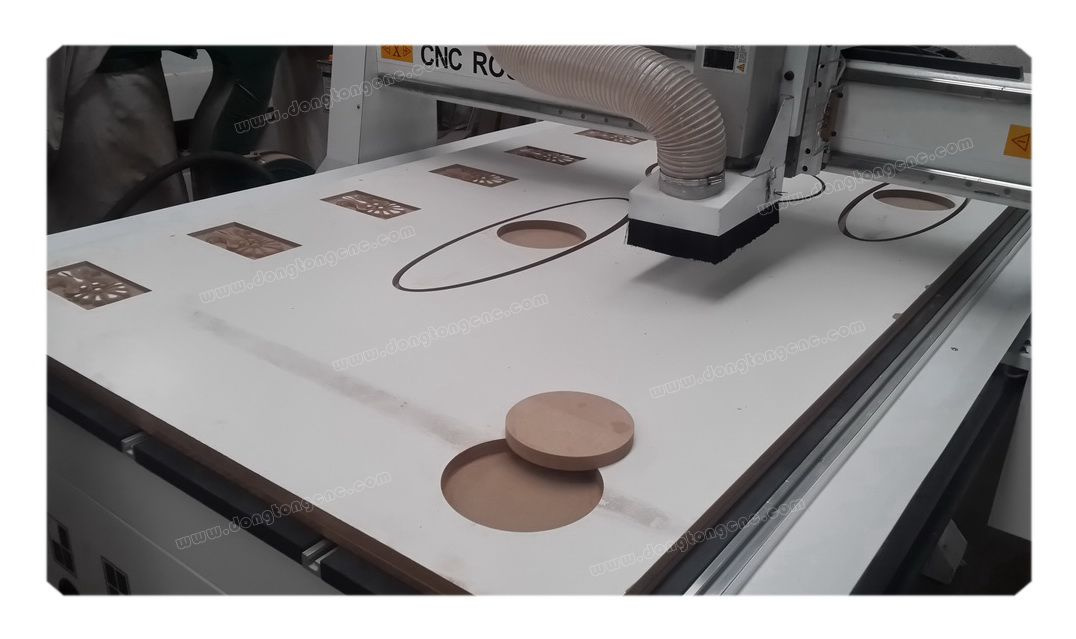

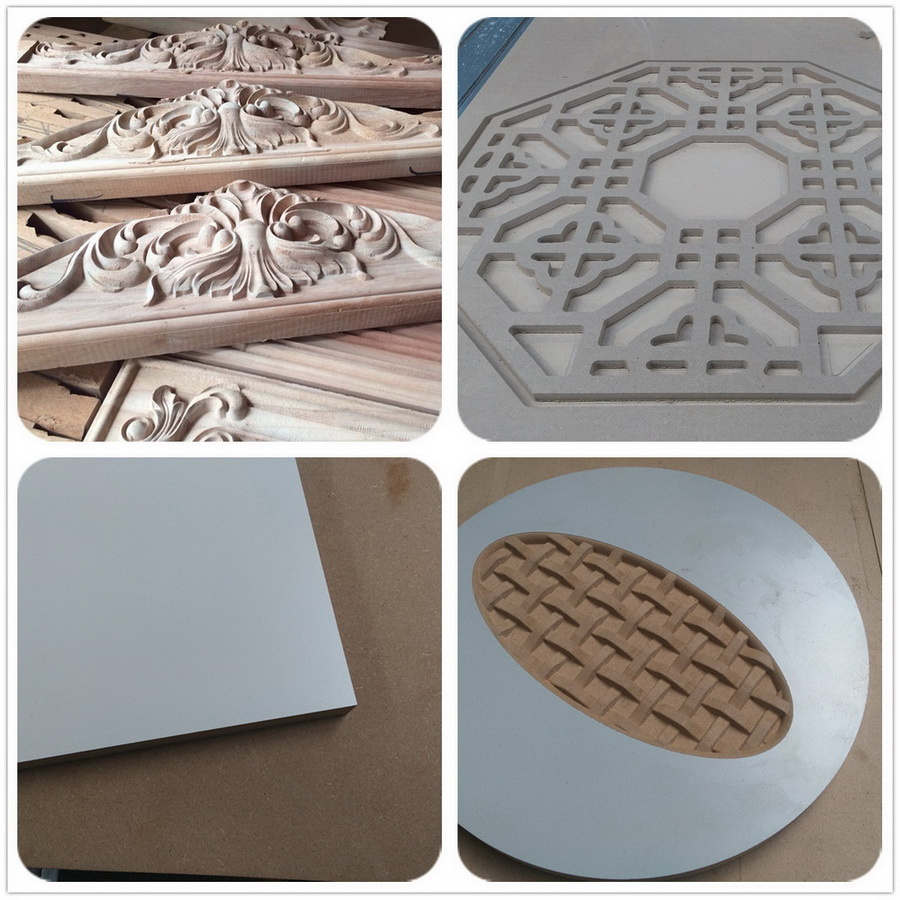

boards, such as material for a variety of exquisite design and text on the sculpture.Perfect cutting and carving samples:

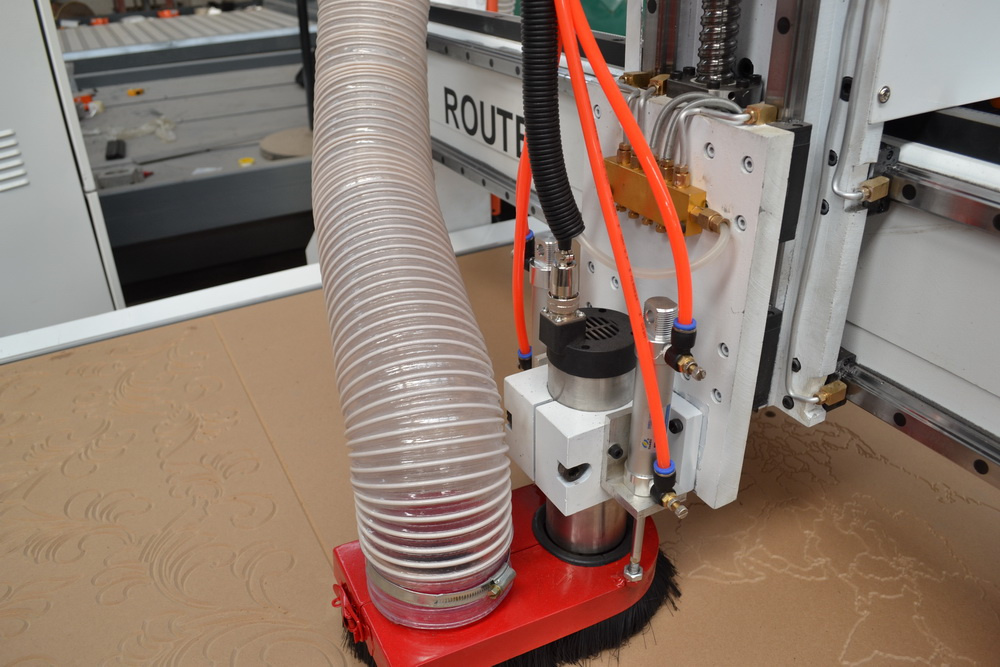

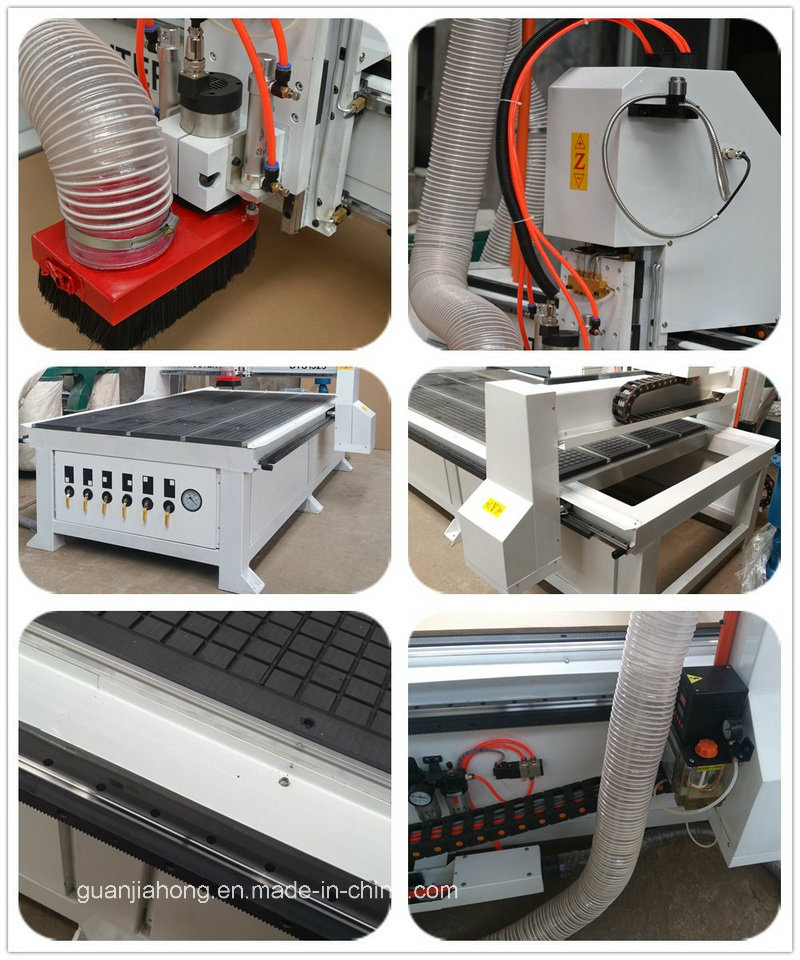

Real image. what you see is what you get:
| NO | Performance index | (Performance index) | (Parameter) | (Optional) |
| 1 | Working area | X | 1300mm | |
| | | Y | 2500mm | |
| | | Z | 200mm | |
| 2 | Table size | | 130mm*3000mm | 2200mm*3000mm |
| 3 | Accuracy | Working precision | 0.05mm | |
| | | Repositioning precision | 0.05mm | |
| 4 | Drive mode | X axis | Helical rack and pinion | |
| | | Y axis | Helical rack and pinion | |
| | | Z axis | Ball screw | |
| 5 | Speed | Max motion speed | 30000mm/min | |
| | | Max engraving speed | 8000mm/min | |
| 6 | Spindle | Spindle power | 3KW | 1.5KW_5.5KW |
| | | Spindle speed | 0_24000r/min | |
| 7 | Drive mode | | Servo | |
| 8 | Operating voltage | | AC220V/50HZ | |
| 9 | Operating system | | NC studio | |
| 10 | Net weight | | 1520KG | |
| Optional | T-slot table |
| Stepper motor |
| Water cooling spindle or air cooling spindle |
| DSP controller |
OEM Service Available:1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be customer-oriented designing.
3. Special configuration could be customer-oriented designing. Technical support:1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.After-sale & guarantee service:1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel and lifetime technical supportIf you have specific requirement for woodworking 1325 CNC router machine, customization is available.
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
