Product Specifications
| Prod Model: |
1224 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
Nc Studio |
| Guild Rail: |
Hiwin Square Rail |
| Ball Screw: |
PMI, Taiwan |
| Invertor: |
Fuling/Delta |
| Water Channel: |
Stainless |
| Spindle Layout: |
Spindle Over |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
| Spindle Number: |
1 |
Product Description

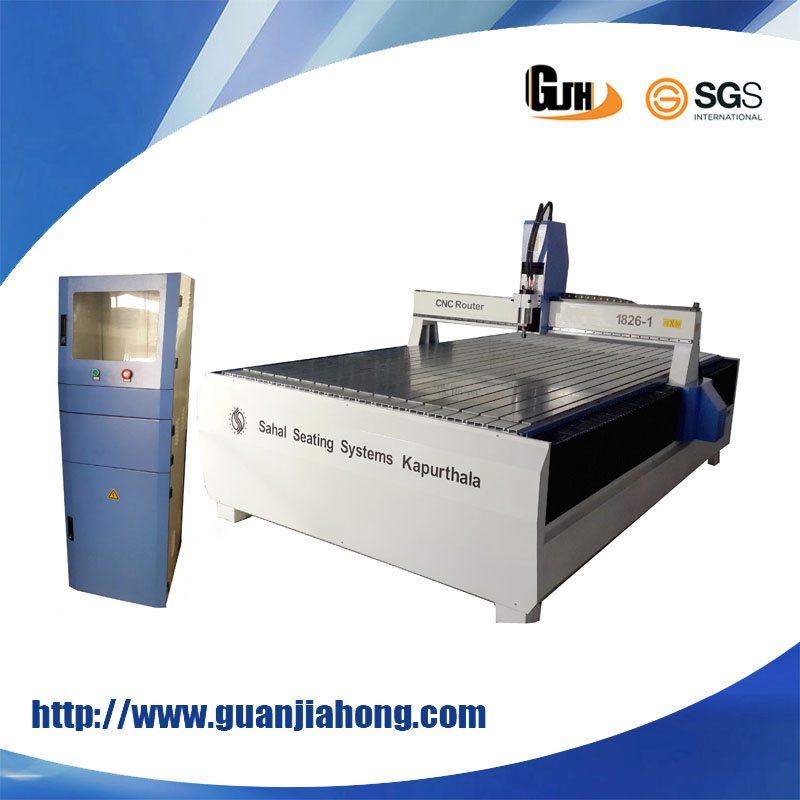

Customized 1325 Nc Studio system Wood, acrylic, aluminum, mdf, stone, metal CNC Router Machine from professional cnc router manufacturer
Feature:
1. It is a unique design for relief and wood cutting machine, high accuracy, fast speed, fully meet the
Requirements of carving
2. Patterns or designs on woodwork and cutting. Lathe bed for large rectangular pipe welding, guide
Bearing surface stability. Rack drive, stable moving, high-speed operation for a long time without
Deformation and shake.
3. Internationally advanced NC studio system which have memory of breakpoint can guarantee
Resumption of processing in case of incident (breaking) or of work of the previous day.
4. Good Y axis and dust-proof structure to ensure that the machines longer service life.
Application:
Woodworking industry:
Three-dimensional wave board processing, cabinet door, craft wooden door,
Folding screen, process window milling shape carved furniture products.
Advertising industry:
Advertising signs, PVC board, chevron board, double color boards, logo making,
Acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting
PVC board, acrylic, LED/neon trough, the hole shape literally cut, blister light
Boxes mould
Arts and crafts industry: In the wood, bamboo, marble, organic board, double color boards, such as
Material for a variety of exquisite design and text on the sculpture.
Parts of machine can be customized as your requirement:
1. Motor (stepper or servo motor)
2. Spindle ( air-cooling or water-cooling spindle)
3. Guide rail (round guide rail or square guide rail)
4. The table of machine (Vacuum table, T-slot table, table moving)
5. Other parts
OEM Service Available
1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be customer-oriented designing.
3. Special configuration could be customer-oriented designing.
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer
should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel and lifetime technical support
Configuration as you require:
1. System: NC studio, SYNTEC , Richauto
2. Motor: Yaskawa, Pansonic, Estun, Delta
3. Guild rail: PMI, Hiwin
4. Spindle: HSD, HQD.
| NO | Performance index | Performance index | Parameter | Optional |
| 1 | Working area | X | 1300mm |
|
|
| Y | 2500mm |
|
|
| Z | 200mm |
|
| 2 | Table size |
|
|
|
| 3 | Accuracy | Working precision | 0.05mm |
|
|
| Repositioning precision | 0.05mm |
|
| 4 | Drive mode | X axis | rack gear |
|
|
| Y axis | rack and dual-motor |
|
|
| Z axis | Screw |
|
| 5 | Speed | Max motion speed | 30000mm/min |
|
|
| Max engraving speed | 8000mm/min |
|
| 6 | Spindle(water-cooling) | Spindle power | 3KW | 1.5KW_5.5KW |
|
| Spindle speed | 0_24000r/min |
|
| 7 | Drive mode |
| Stepper |
|
| 8 | Operating voltage |
| AC220V/50HZ |
|
| 9 | Command code |
| G code |
|
| 10 | Operating system |
| 53C Nc studio |
|
| 11 | Net weight |
| 1520KG |
|
If you have speicic requirement for wood, stone, metal cnc router machine, customization is available.
