Wood, MDF, Acrylic, Aluminum, 1325 CNC Router
| Price: |
US $ 4000-7000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
DT1325-1-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
1300*2500 |
| Drive Mode: |
Stepper |
| Guild Rail: |
PMI / Hiwin |
| Operating System: |
Nc Studio |
| Spindle: |
Air Cooling or Water Cooling as Your Require |
| Spindle Layout: |
Spindle Over |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
| Spindle Number: |
3 |
Product Description

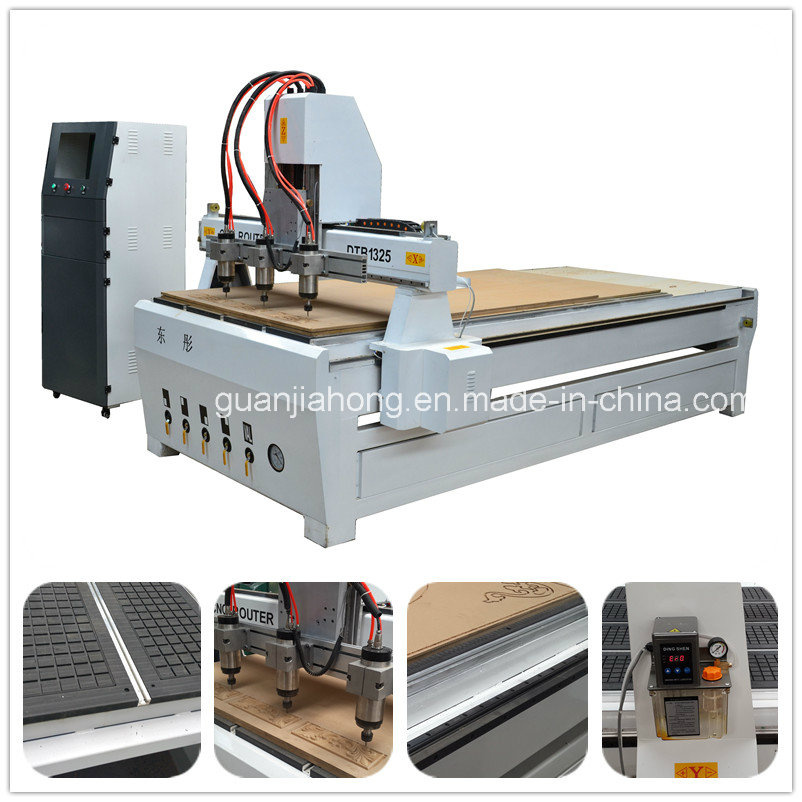

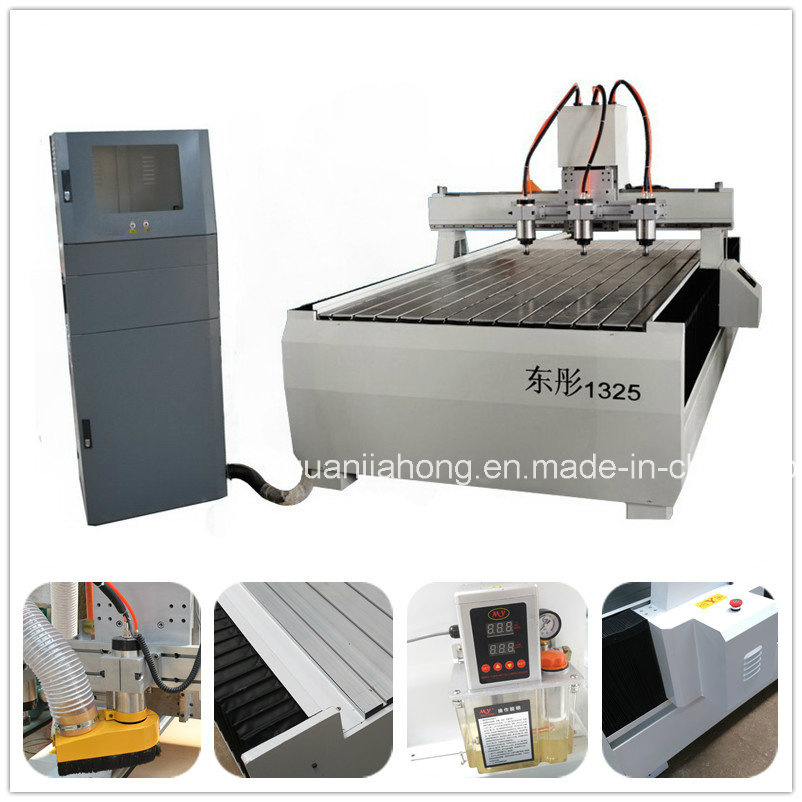

1325 multi spindle CNC router machine from professional cnc router machine manufacturer. Feature: 1. Specially design single spindle or multi-spindle design for wood cutting and relief.
2. Hiwin square guild rail and ball screws
3. Genuial NC STUDIO or SYNTEC control system
4. High power motor and driver
5. Lower noise spindle
Application: 1. Woodworking industry: three-dimensional wave board processing,cabinet door, craft wooden door,
folding screen, process window milling shape carved furniture products.
2. Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo
making, acrylic cutting, plastic molding,characters, crystal cutting, plate making, cutting PVC board,
acrylic,LED/neon trough, the hole shape literally cut, blister light boxes mould
3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as
material for a variety of exquisite design and text on the sculpture. Configuration as you require: control system, motor, spindle and so on.Processing multi work piece simultaneously, perfect carving sample:

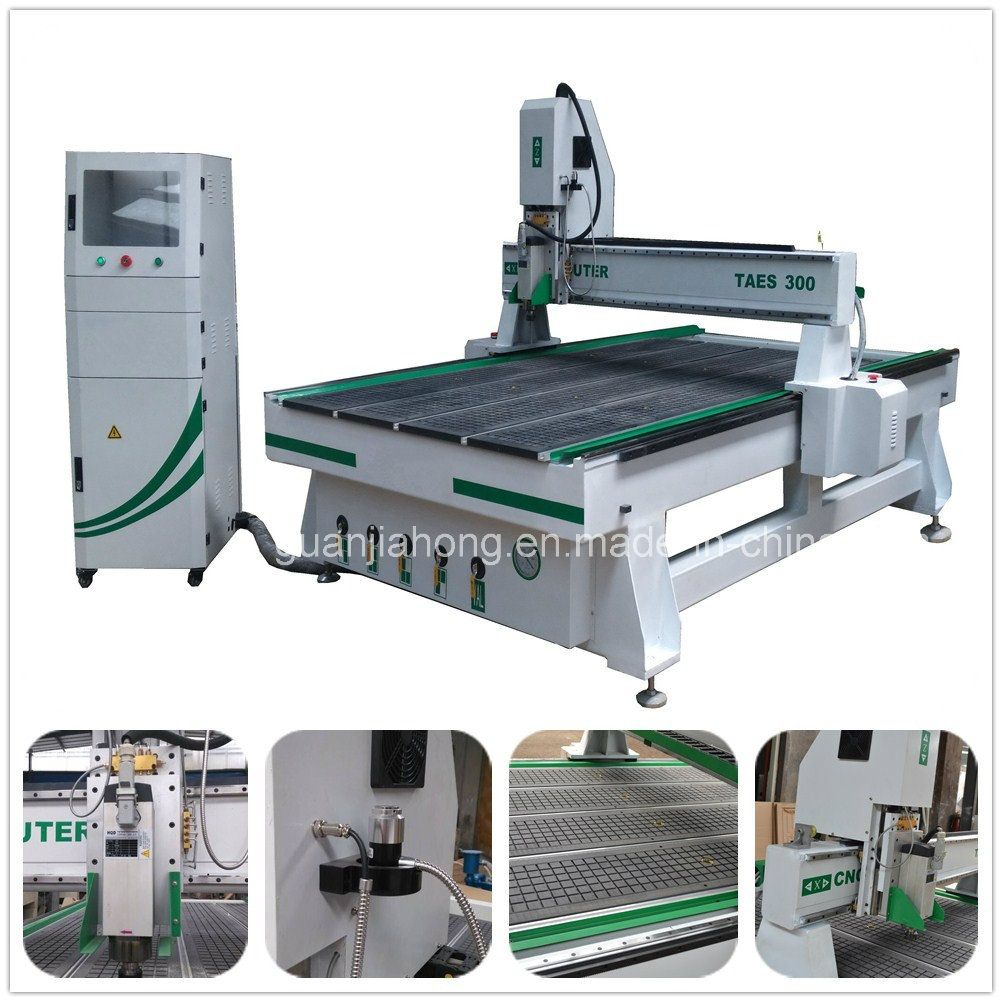

Without dust proof:
Performance :| NO | Performance index | Performance index | Parameter | Optional |
| 1 | Working area | X | 1300mm | as your require |
| | | Y | 2500mm | as your require |
| | | Z | 200mm | as your require |
| 2 | Table size | | 1300mm*2500mm | 2200mm*3000mm |
| 3 | Accuracy | Working precision | 0.05mm | |
| | | Repositioning precision | 0.05mm | |
| 4 | Drive mode | X axis | Helical guild and rack pinion | |
| | | Y axis | Helical guild and rack pinion | |
| | | Z axis | Ball screw | |
| 5 | Speed | Max motion speed | 30000mm/min | |
| | | Max engraving speed | 20000mm/min | |
| 6 | Spindle | Spindle power | 3KW | 0.8KW_6KW |
| | | Spindle speed | 0-24000r/min | |
| 7 | Drive mode | | Stepper or servo motor as your require | |
| 8 | Operating voltage | | AC220V/50HZ (as your require) | |
| 9 | Operating system | | Genuine NC STUDIO | |
| 10 | Machine weight | | 1520KG | |
| Optional | Yaskawa servo, Panasonic servo, Estun servo |
| Vacuum table |
| Vacuum pump |
| Dust collector |
| Dust proof |
| Air cooling spindle or water cooling spindle |
| Rotary system |
Technical support:1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. Buyer should pay the fee.After-sale & guarantee service:1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support
and service by email/fax/ tel and lifetime technical supportIf you have specific requirement for woodworking engraving machine CNC router, customization is available.
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
