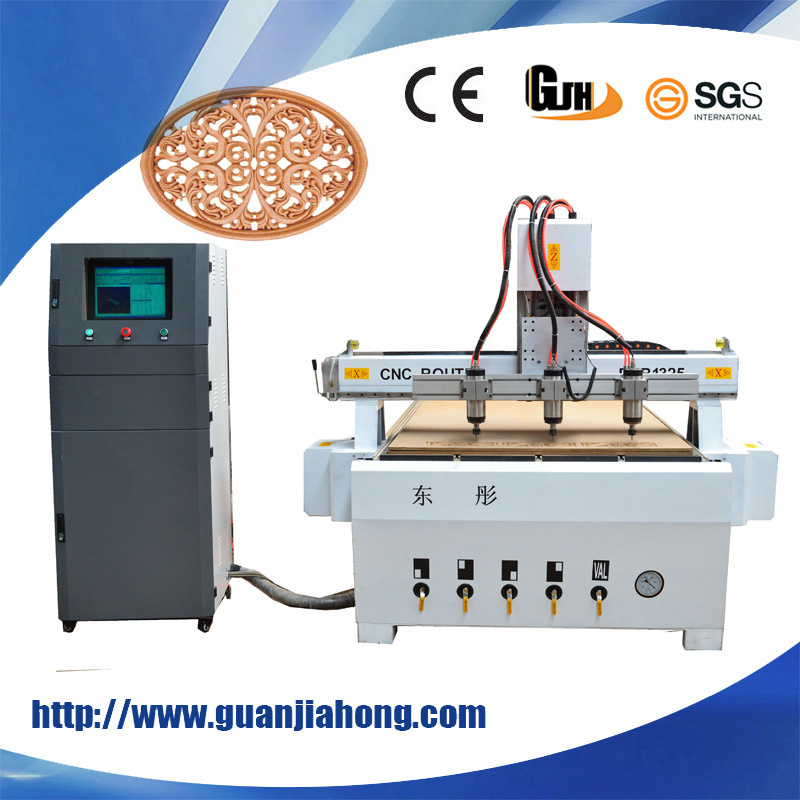

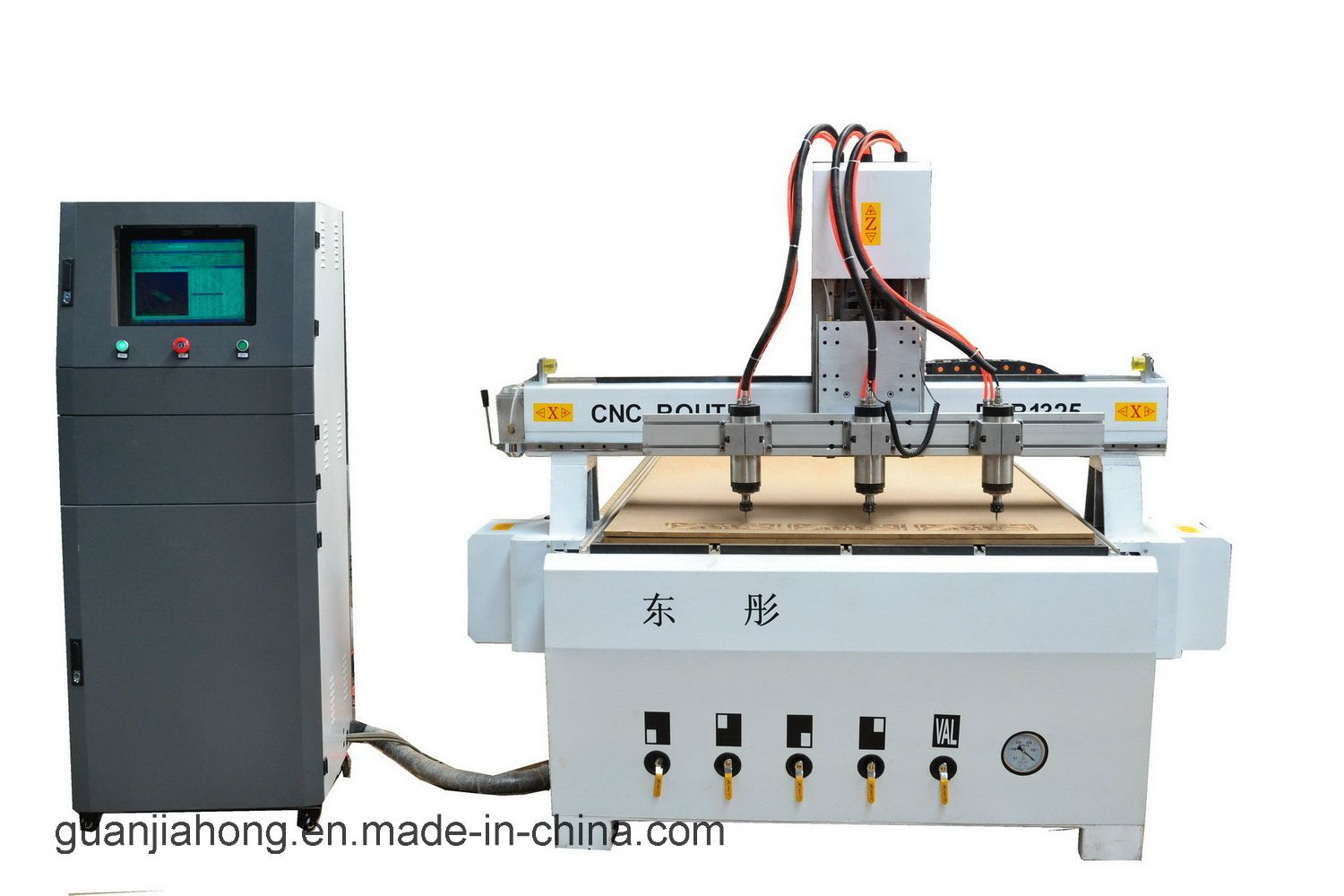

Relief, Cutting Wood CNC Router
| Price: |
US $ 4000-7000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
1325 |
| Table Size: |
1300*2500 |
| Drive Mode: |
Stepper |
| Guild Rail: |
PMI / Hiwin |
| Operating System: |
Nc Studio |
| Spindle: |
Air Cooling or Water Cooling as Your Require |
| Spindle Layout: |
Spindle Over |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
| Spindle Number: |
3 |
Product Description

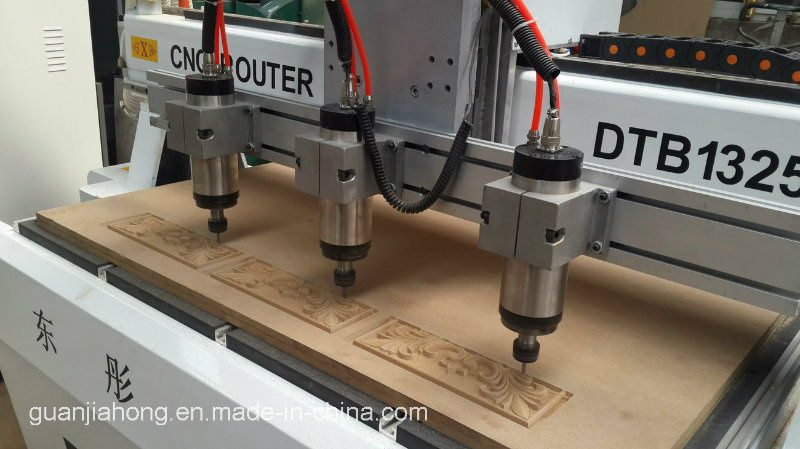

For relief, cutting wood CNC router machine from professional cnc router machine manufacturer. Feature: 1. Multi-spindle special design for wood cutting and relief.
2. Hiwin or PMI guild rail
3. NC studio control system
4. Dust proof for Y axis.
5. Stepper motor driver.Configuration as you require:1. System: NC studio, SYNTEC , Richauto .....
2. Motor: Yaskawa, Pansonic, Estun, Delta....
3. Guild rail: PMI, Hiwin .....
4. Spindle: HSD, HQD..... Samples:
| NO | (Performance index) | Performance index | Parameter | Optional |
| 1 | (Working area) | X | 1300mm | |
| | | Y | 2500mm | |
| | | Z | 200mm | |
| 2 | Table size | | 1300mm*2500mm | 2200mm*3000mm |
| 3 | Accuracy | Working precision | 0.05mm | |
| | | Repositioning precision | 0.05mm | |
| 4 | Drive mode | X axis | Linear guide and rack pinion | |
| | | Y axis | Linear guide and rack pinion | |
| | | Z axis | Ball screw | |
| 5 | Speed | Max motion speed | 30000mm/min | |
| | | Max engraving speed | 20000mm/min | |
| 6 | Spindle(water-cooling) | Spindle power | 3KW | 1.5KW_5.5KW |
| | | Spindle speed | 0-24000r/min | |
| 7 | Drive mode | | Stepper | |
| 8 | Operating voltage | | AC220V/50HZ | |
| 9 | Command code | | G code | |
| 10 | Operating system | | NC STUDIO | |
| 11 | Net weight | | 1520KG | |
| Optional | Yaskawa servo, Panasonic servo, Estun servo |
| Vacuum table |
| Vacuum pump |
| Dust collector |
| Dust proof |
| Air cooling spindle or water cooling spindle |
| Rotary system |

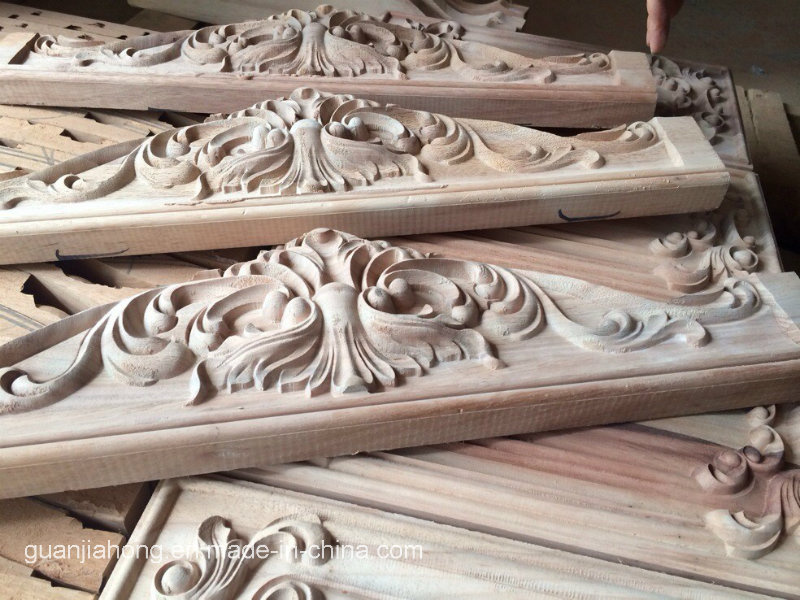

Application: 1. Woodworking industry: three-dimensional wave board processing, cabinet door, craft wooden door, folding screen, process window milling shape carved furniture products.
2. Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo
making, acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting PVC board,
acrylic, LED/neon trough, the hole shape literally cut, blister light boxes mould
3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as
material for a variety of exquisite design and text on the sculpture. Parts of machine can be customized as your requirement:1. Motor (stepper or servo motor)
2. Spindle ( air-cooling or water-cooling spindle)
3. Guide rail (round guide rail or square guide rail)
4. The table of machine: Vacuum table, T-slot table, normal table
5. Other parts OEM Service Available:1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be customer-oriented designing.
3. Special configuration could be customer-oriented designing. Technical support:1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer
should pay the fee.After-sale & guarantee service:1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel and
lifetime technical supportIf you have specific requirement for woodworking engraving machine CNC router, customization is available.
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
