| Price: | US $ 5099-8999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

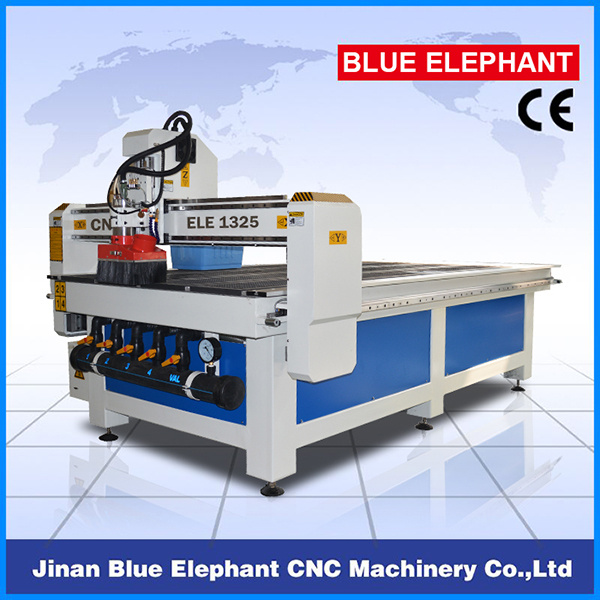

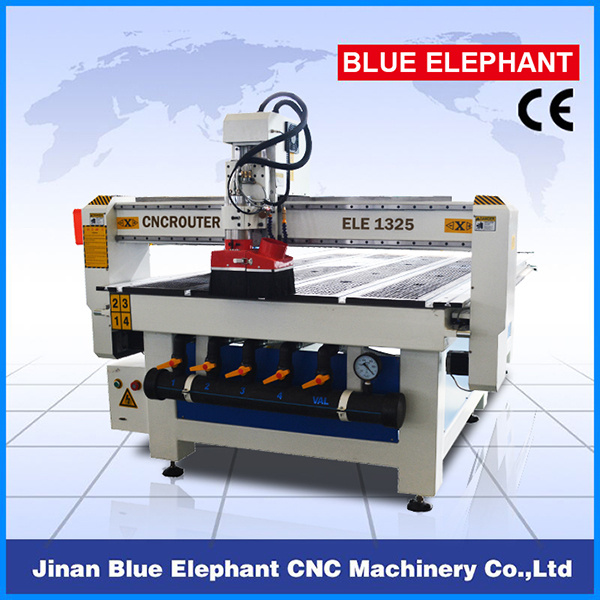

| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | AC380V/50/60Hz, 3pH (Option: 220V) |
| Dimension(L*W*H): | 3200*2140*1850mm |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| Applicaion: | 3D CNC Wood Carving Machine |
| Spindle Power: | 3kw Water Cooling Spindle(Top Brand in China) |
| Table Surface: | T-Slot Table |
| Drive Motors: | Stepper System |
| Operating System: | DSP System (Options: Ncstudio/Mach3 PC Software) |
| Working Voltage: | AC380V, 3pH, 50/60Hz (Option: 220V) |
| Computer Interface: | USB Interface |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |
Why do you choose our machine?
1,Vacuum working table. Mechanical fixing small processing materials
2,3kw water cooling spindle(top brand in China), It's big strength and higher efficiency,
3,Dust collection system, it can keep a clean, less-dust working surrounding which is helpful to your healthy; also, it can reduce the surface dust of linear guide, ball screw and gear transmission, reducing the maintaining cost.
Application:
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
parameters:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | T-slot Table |
5 | Frame | Welded Structure |
6 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
9 | Max. Rapid Travel Rate | 33000mm/min |
10 | Max. Working Speed | 25000mm/min |
11 | Spindle Power | 3KW water cooling spindle |
12 | Spindle Speed | 0-18000RPM |
13 | Drive Motors | Stepper System |
14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
15 | Command Language | G Code |
16 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
17 | Computer Interface | USB |
18 | Flash Memory | 128M(U Disk) |
19 | Collet | ER25 |
20 | X,Y Resolution | <0.01mm |
21 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |
About the FAQ:
1.please introduce about the Guarantee & After-Sales Service? | |
1.1 | One year warranty under normal use and we supply maintenance for life for free. |
1.2 | 24 hours technical support by phone, e-mail, SKYPE, MSN or Remote. |
1.3 | Free trainings to make sure you master the operation of cnc router. |
1.4 | English operation manual, popular and easy to understand. |
2.OEM Service Available | |
2.1 | Usually, we will manufacture the machine as our regular design. |
2.2 | X Y Z Working Area could be customized designing. |
2.3 | Special configuration could be customized designing. |
3.What is your Delivery Time (Production procedure)? | |
3.1 | For ELE 3 axis machine with standard specification, usually 20 days. |
3.2 | For ELE 4 axis machine with standard specification, usually 60 days. |
3.3 | For ELE 5 axis machine, OEM or non-standard models, usually 120 days. |
4.Kindly tell me your Payment Terms? | |
4.1 | T/T in advance. |
4.2 | Western union: we can accept small payment (below $3000), but the banking charges shall be paid by the buyer. |
4.3 | L/C is acceptable if the amount is big. Please issue the L/C draft for our confirmation first. |
5. How to Order? | |
5.1 | Consult: we will recommend the most suitable machines to you after being informed by your requirements, such as the material you want to engrave or cut, the max size of the material (Length * Width * Thickness) and other requirements. |
5.2 | Quotation: We will supply you with our detail quotation according to our consulted machines, with the best quality and competitive price. |
5.3 | Process Evaluation: Both sides carefully evaluate and discuss all the details (including technical parameters, specifications and business terms) of the order in order to exclude any misunderstanding. |
Welcome to visit our factory:
