| Price: | US $ 5999-27999/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

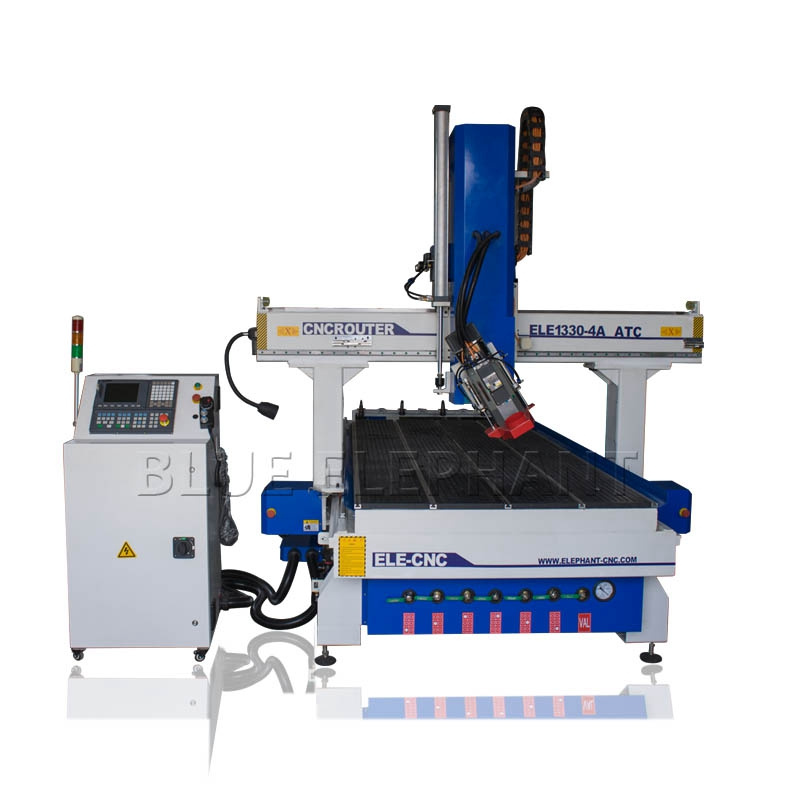

| Prod Model: | ELE1330 |
|---|---|
| Dimension(L*W*H): | 3700*2140*1950mm |
| Control System: | Taiwan Syntec Control System |
| Spindle Power: | 9kw Italy Hsd Atc Air Cooling Spindle |
| Inverter: | 11kw Delta |
| Motor And Driver: | 850W Japan Yaskawa |
| Spindle Speed: | 0-24000rpm |
| Table Surface: | Vacuum&T-Slot Working Table |
| Power(W): | 12.5kw |
| Warranty: | 12 Months |
| Weight: | 1700kg |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |
Features:
1).9 kw HSD ATC air cooling spindle from Italy
2).11kw DELTA inverter from Taiwan
3).Original Taiwan SYNTEC control system
4).850w Japan YASKAWA servo motor
5).4kw Becker vacuum pump
6).Vacuum and T-slot working table
7).1.5kw new type dust collector.
8).Automatic lubrication system
9).25# HINWIN square linear guide
10).Taiwan TBI ball screw
14).1.4m SYNTEC control box
Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x3000x400mm |
2 | Table Size | 1300×3000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum and T-slot working table |
6 | Frame | Welded Structure |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 3.2Kw |
10 | Max. Rapid Travel Rate | 33000mm/min |
11 | Max. Working Speed | 25000mm/min |
12 | Spindle Power | 9kw Italy HSD ATC air cooling spindle |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | 850W Japan YASKAWA servo motor |
15 | Working Voltage | 380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH) |
16 | Command Language | G Code |
17 | Operating System | Taiwan SYNTEC 4 axis control System |
18 | Computer Interface | USB |
19 | Optional | Japan shimpo reducer,Becker vacuum pump,dust collector |
20 | Collet | IOS30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |

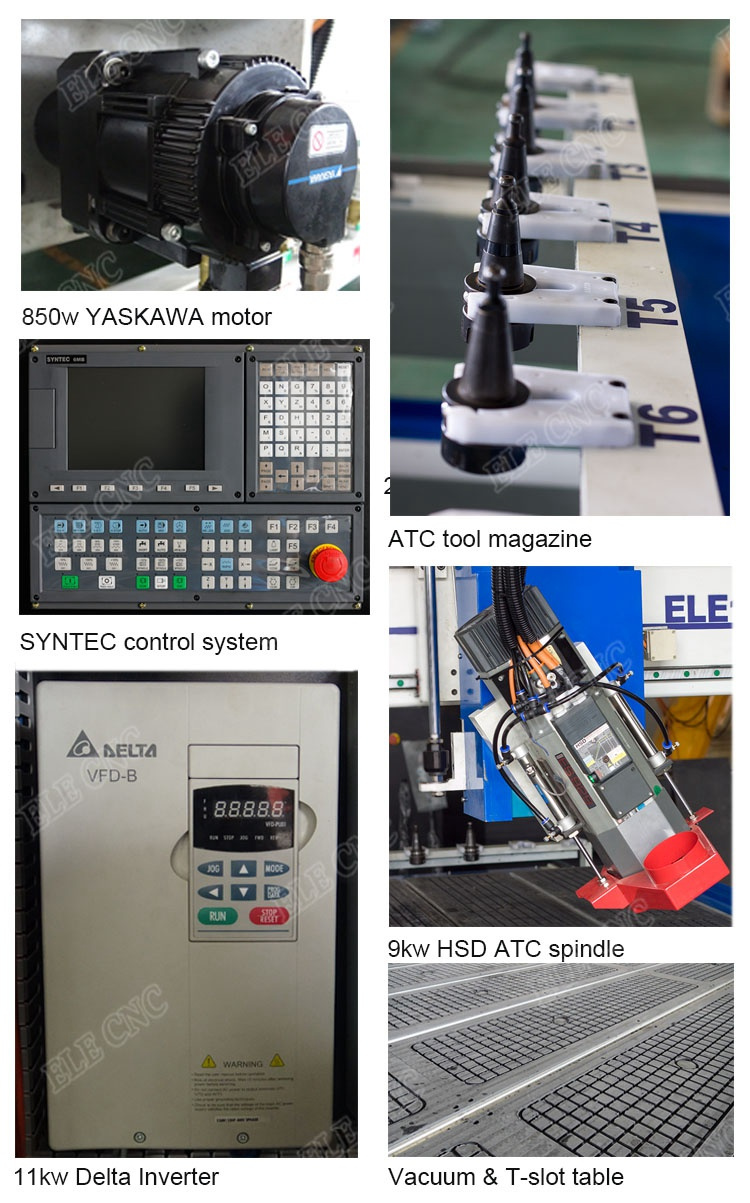

Main parts:
Applicantion:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
Samples show:
